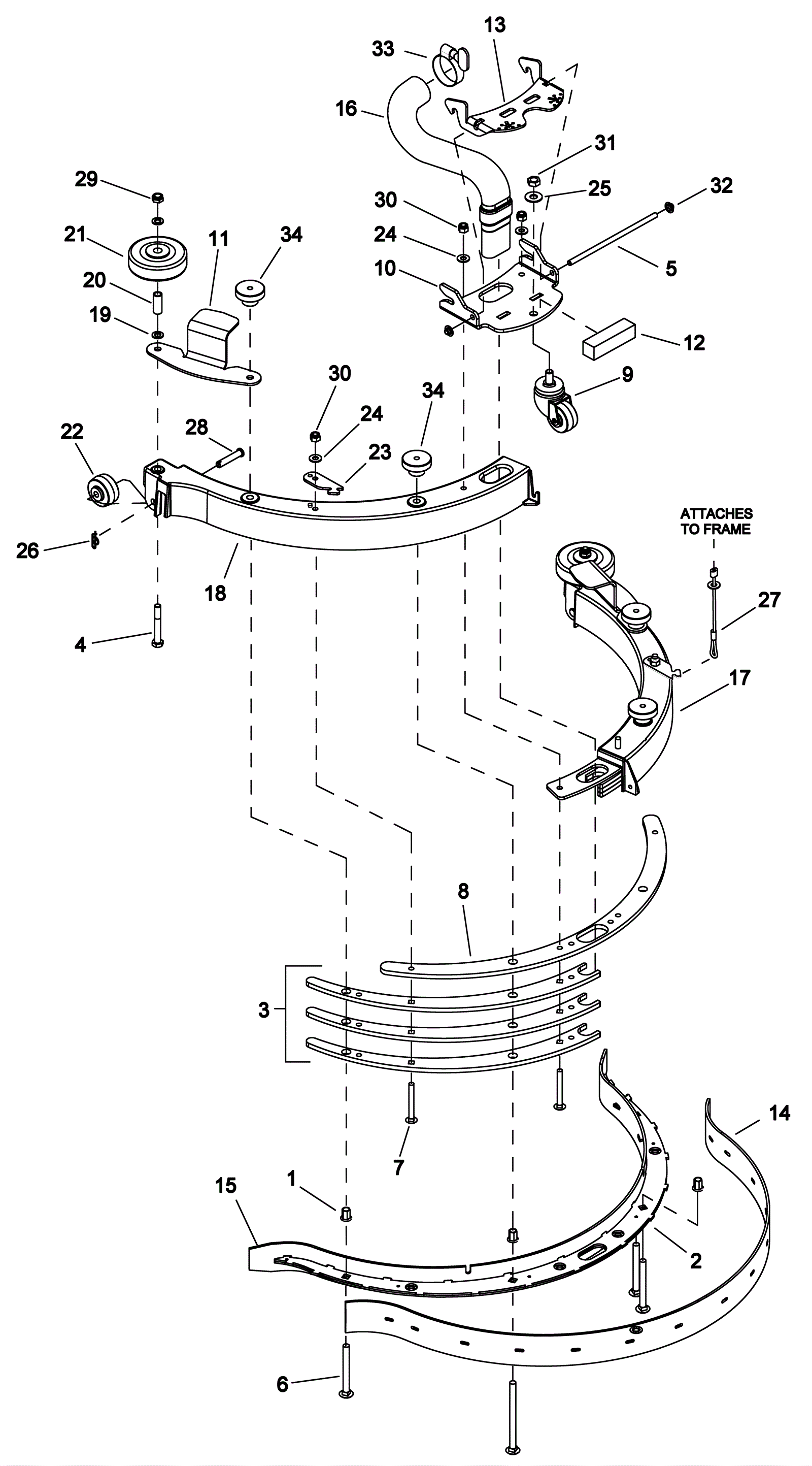

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
173-7275
|
Nut 5/16-18 x 9/16 (OBSOLETE) |
$10.62
|
4 |
|
usually ships 14-22 days |
2 |
173-7276
|
Squeegee blade retainer |
$318.97
|
1 |
|
usually ships 14-22 days |
3 |
173-7277
|
Squeegee weight plate |
$56.85
|
6 |
|
ships same day |
4 |
173-7278
|
Screw 5/16-18 x 2 1/4 hex head cap stainless steel |
$1.06
|
2 |
|
usually ships 14-22 days |
5 |
173-7279
|
Pivot latch shaft |
$30.95
|
1 |
|
usually ships 14-22 days |
6 |
999-1335
|
Bolt 5/16-18 x 3 round head carriage stainless steel |
$5.54
|
4 |
|
ships same day |
8 |
173-7282
|
Squeegee cover brace |
$84.74
|
1 |
|
usually ships 14-22 days |
9 |
173-7283
|
Caster wheel |
$85.34
|
1 |
|
usually ships 14-22 days |
10 |
173-7284
|
Squeegee latch plate |
$64.15
|
1 |
|
usually ships 1-5 days |
11 |
173-7285
|
Squeegee bumper lift bracket |
$41.07
|
2 |
|
usually ships 14-22 days |
12 |
173-7286
|
Rubber spring |
$9.54
|
1 |
|
ships same day |
13 |
173-7287
|
Squeegee latch |
$50.84
|
1 |
|
ships same day |
14 |
173-7288
|
Squeegee blade gum rubber rear (red) |
$57.55
|
1 |
|
ships same day |
15a |
173-7289
|
Squeegee blade gum rubber front (red) |
$52.49
|
1 |
|
usually ships 14-22 days |
15b |
994-0500
|
Squeegee blade 37 inch Linatex front (red) |
$43.49
|
1 |
|
ships same day |
15b |
173-9857
|
Front squeegee blade urethane |
$55.79
|
1 |
(optional) |
ships same day |
15c |
173-9858
|
Rear squeegee blade urethane |
$68.86
|
1 |
(optional) |
ships same day |
16 |
173-7290
|
Squeegee vacuum hose |
$85.92
|
1 |
|
usually ships 14-22 days |
17 |
173-7291
|
Right squeegee cover |
$46.13
|
1 |
|
ships same day |
18 |
173-7292
|
Left squeegee cover |
$78.86
|
1 |
|
usually ships 14-22 days |
19 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
4 |
|
ships same day |
20 |
173-1634
|
Bushing |
$12.36
|
2 |
|
usually ships 14-22 days |
21 |
173-1630
|
3 inch rubber wheel |
$5.89
|
2 |
|
ships same day |
22 |
173-3028
|
Roller wheel |
$35.90
|
2 |
|
ships same day |
23 |
173-7293
|
Bracket |
$9.71
|
2 |
|
usually ships 1-5 days |
24 |
173-3028
|
Roller wheel |
$35.90
|
4 |
|
ships same day |
25 |
173-7293
|
Bracket |
$9.71
|
1 |
|
usually ships 1-5 days |
26 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
$0.99
|
2 |
|
ships same day |
27 |
173-7294
|
Cable lanyard |
$20.96
|
2 |
|
usually ships 14-22 days |
28 |
173-3181
|
Clevis pin |
$7.01
|
2 |
|
ships same day |
29 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
$0.99
|
2 |
|
ships same day |
30 |
999-1466
|
Nut 1/4-20 lock with external toothed lockwasher SS |
$0.99
|
4 |
|
ships same day |
31 |
999-0169
|
Nut 3/8-24 hex jam plain finish |
$0.99
|
1 |
|
ships same day |
32 |
173-8413
|
Nut 1/4 cap |
$0.99
|
2 |
|
ships same day |
33 |
273-7915
|
Gear wing clamp |
$3.25
|
1 |
|
usually ships 14-22 days |
34 |
173-3184
|
Knob |
$51.67
|
4 |
|
ships same day |
