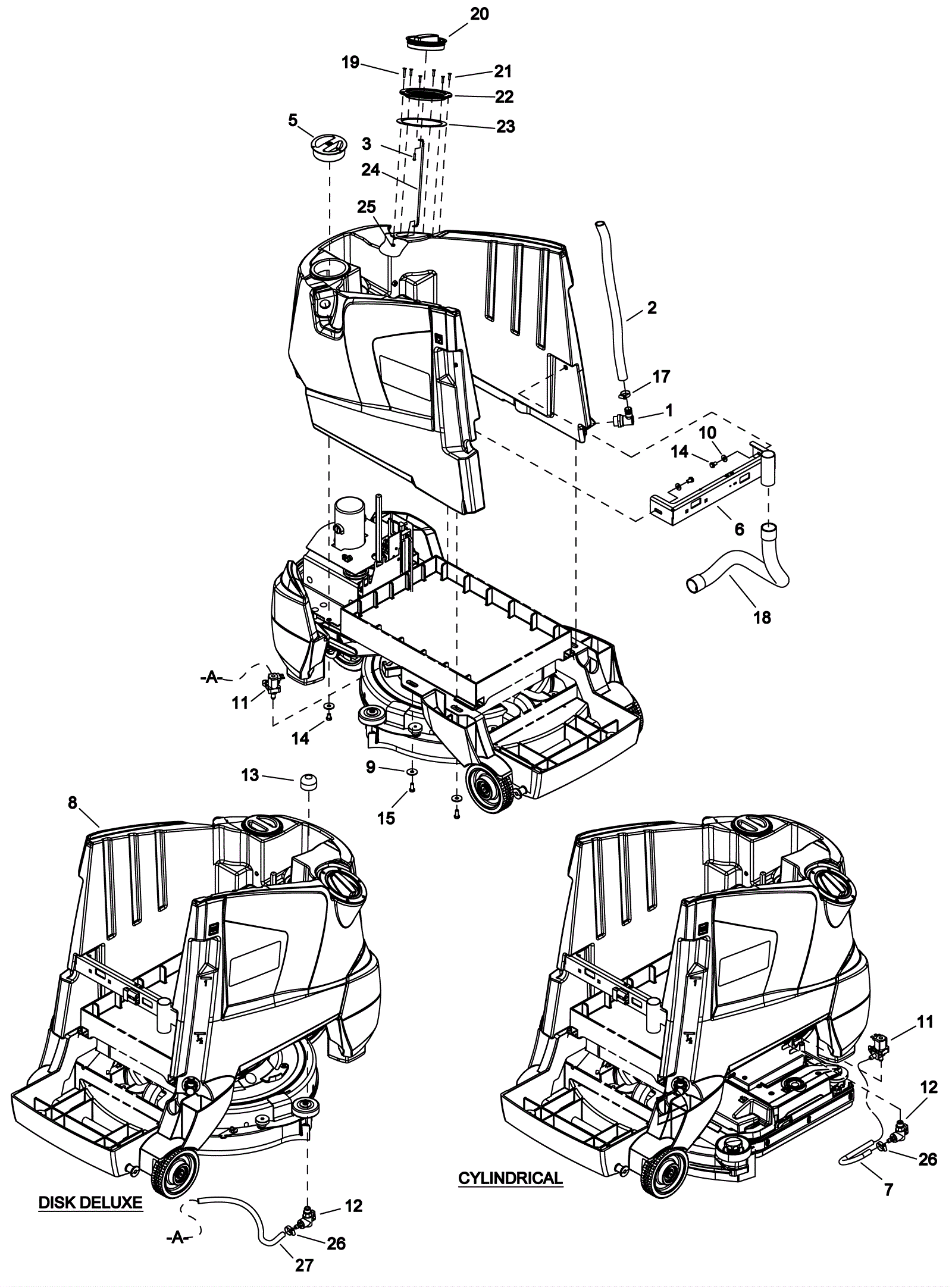

Chariot 2 iScrub 20 Deluxe Orb Solution Tank Assembly - Deluxe

#PartDescriptionPriceReqNotesAvailability
1 173-7266 Elbow $71.21 1 usually ships 14-22 days
2 173-7267 Hose 3/4 x 20 inch (clear) $19.31 1 usually ships 14-22 days
3 173-5950 Screw KA50 x 16 oval head phillips SS (OBSOLETE) $2.85 1 usually ships 14-22 days
5 273-6408 Cover $28.37 1 usually ships 14-22 days
6 173-7271 Tank brace bracket $120.05 1 usually ships 14-22 days
7 173-4424 12 inch wire bound hose $25.89 1 usually ships 1-5 days
8 273-4376 Tank $843.91 1 usually ships 14-22 days
9 999-1364 Washer 5/16 x 1 fender zinc finish $0.99 5 ships same day
10 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
11 273-1142 36V solution solenoid valve $60.62 1 ships same day
12 273-6530 Ball valve $51.91 1 usually ships 14-22 days
13 189-4181 3/8 inch mesh strainer $40.23 1 ships same day
14 173-3962 Bolt 5/16-18 x 1/2 hex head $3.88 4 usually ships 1-5 days
15 999-1052 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $0.99 3 ships same day
17 173-1079 Hose clamp (OBSOLETE) $2.06 1 usually ships 14-22 days
18 173-7220 Hose assembly 1.25 x 18 inch $92.40 1 ships same day
19 999-1603 Screw 8-32 x 1 flat head phillips SS $0.99 1 ships same day
20 273-5972 Fill port lid $37.66 1 ships same day
21 999-1141 Screw 8 x 3/4 pan head phillips zinc plated $0.99 5 ships same day
22 273-5973 4 inch fill port rim $50.03 1 ships same day
23 273-5981 Gasket $14.60 1 usually ships 14-22 days
24 173-9162 Stainless steel bead chain #10 x 10 inch $26.84 1 usually ships 14-22 days
25 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel $0.99 1 ships same day
26 173-1821 Hose clamp $6.83 1 ships same day
27 173-7272 Hose 3/8 x 18 inch wirebound $25.89 1 usually ships 14-22 days
N/S 173-7269 Nipple 3/8 x 1 1/4 hex (black) $5.50 1 usually ships 14-22 days
N/S 173-1572 Hosebarb 3/8 x 3/8 inch $10.65 1 usually ships 14-22 days
