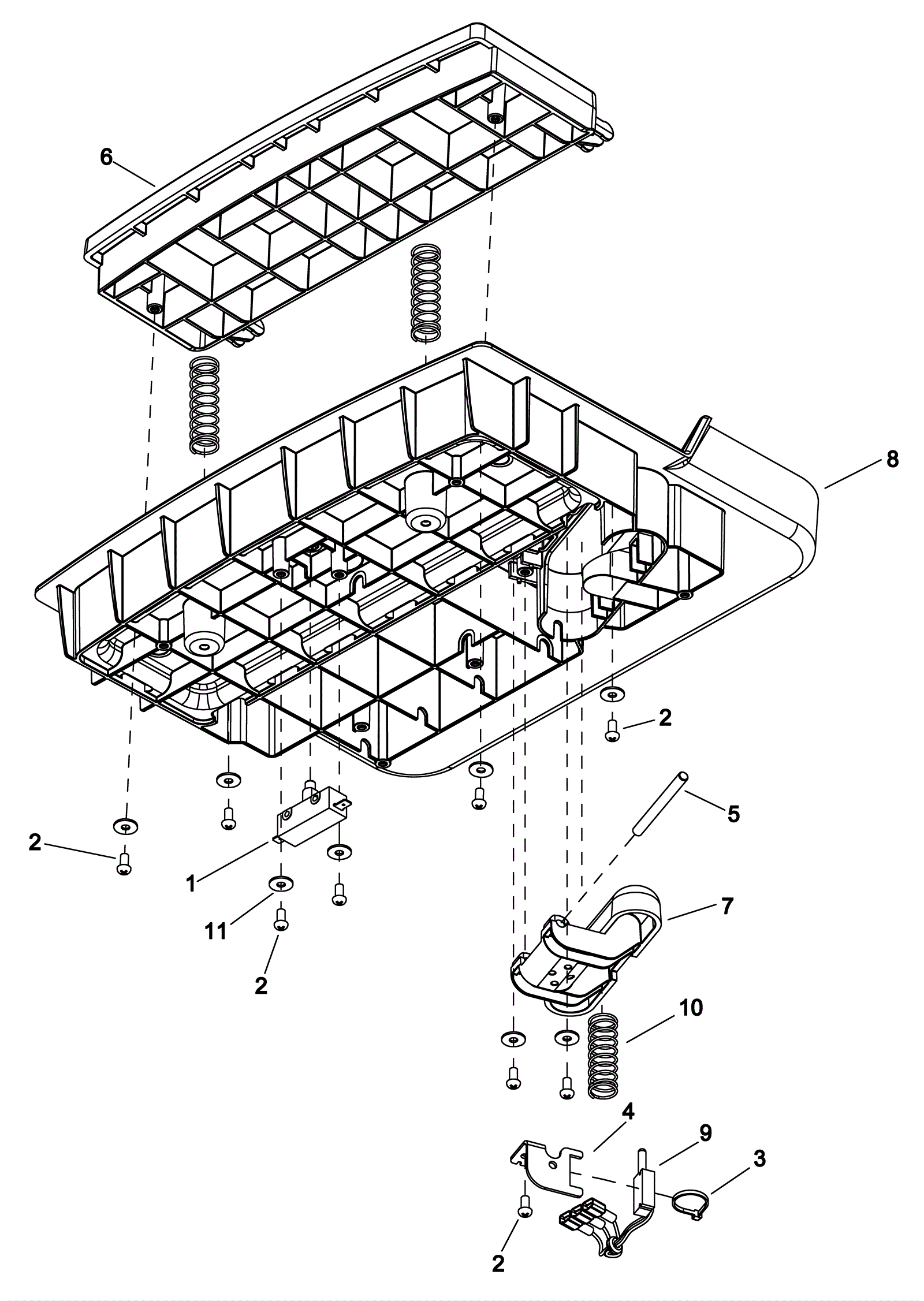

Chariot 2 iScrub 20 Deluxe Orb Pedal Platform Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-0378 25amp switch replacement $65.45 1 ships same day
2 273-5604 Screw $0.99 9 ships same day
3 173-0822 Wire tie $0.99 1 usually ships 7-19 days
4 173-7212 Linear potentiometer bracket $18.04 1 usually ships 7-19 days
5 173-7213 Steel dowel pin $24.20 1 usually ships 7-19 days
6 273-7258 Heel pedal (black) $101.75 1 ships same day
7 273-7259 Accelerator pedal (yellow) $69.30 1 usually ships 7-19 days
8 273-4365 Platform operator (black) $128.70 1 usually ships 7-19 days
9 173-7217 Linear potentiometer assembly $135.30 1 usually ships 7-19 days
10 173-5493 Spring $10.62 3 usually ships 7-19 days
11 273-5591 Washer M5 flat stainless steel $1.82 8 usually ships 7-19 days
