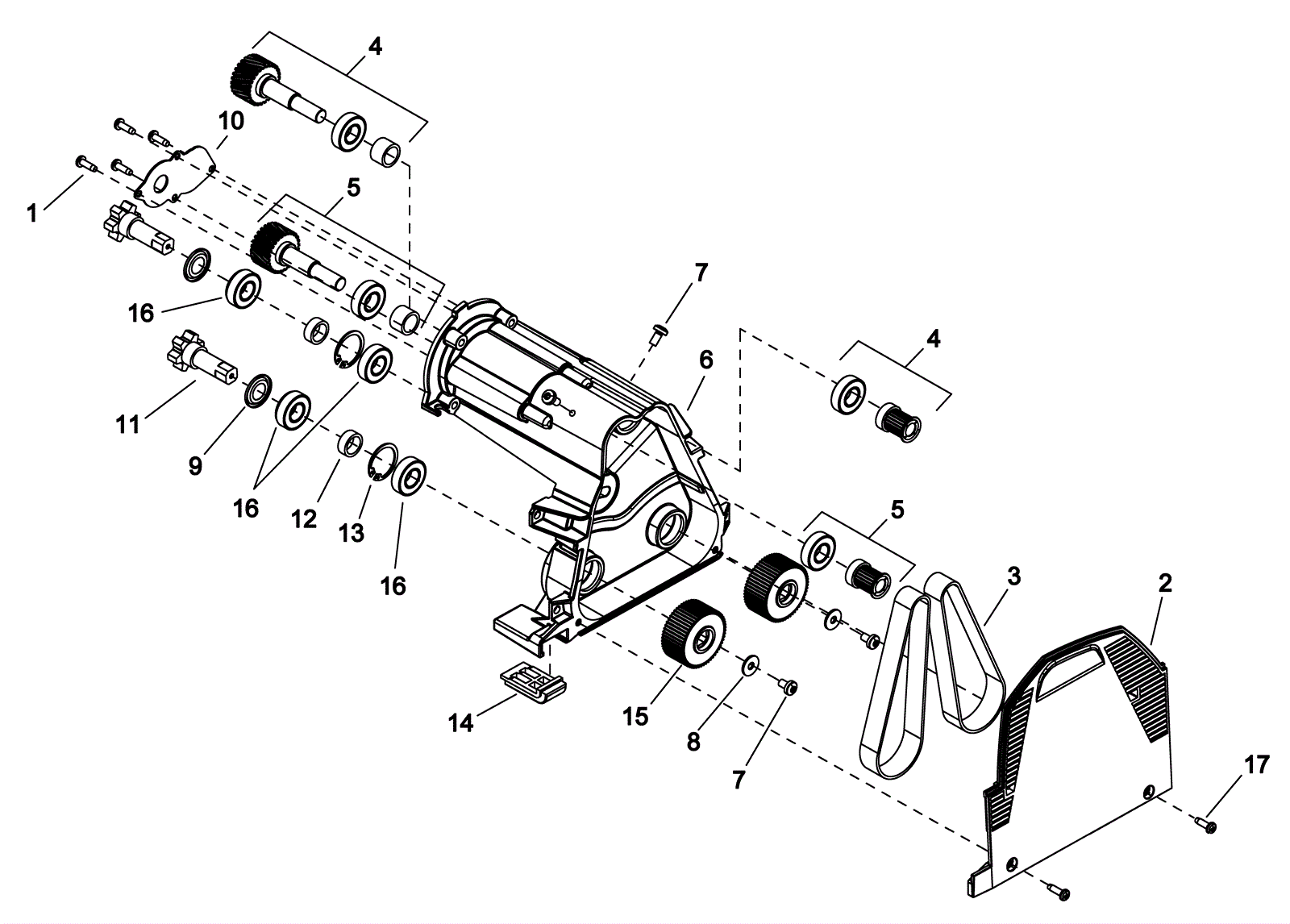

Chariot 2 iScrub 20 Deluxe Orb Scrub Deck Drive Assembly - Cylindrical

#PartDescriptionPriceReqNotesAvailability
1 183-0281 Screw $1.54 4 usually ships 15-28 days
2 273-7019 Gear cover $61.20 1 usually ships 1-5 days
3 273-7020 Toothed belt $118.88 2 (if 10 is metal, order 3, 4, 5, and 6) usually ships 14-22 days
4 273-7021 Right gear shaft $501.40 1 (if 10 is metal, order 3, 4, 5, and 6) usually ships 1-5 days
5 273-7900 Left side gear shaft $443.73 1 (if 10 is metal, order 3, 4, 5, and 6) usually ships 14-22 days
6 273-7022 Carrier motor $316.61 1 (if 10 is metal, order 3, 4, 5, and 6) usually ships 14-22 days
7 273-7023 Screw M6 x 12 $3.04 3 usually ships 1-5 days
8 173-6337 Washer $1.41 2 usually ships 14-22 days
9 273-7901 Stainless steel joint ring $50.03 2 ships same day
10 273-7902 Gear cap covering $48.61 1 (if 10 is metal, order 3, 4, 5, and 6) usually ships 14-22 days
11 273-7903 Driveshaft $145.95 2 usually ships 14-22 days
12 173-6284 Spacer sleeve $12.24 2 usually ships 14-22 days
13 273-5828 Locking ring $2.89 2 ships same day
14 273-5816 Rocker $28.60 1 usually ships 14-22 days
15 273-7026 Pulley $43.55 2 usually ships 14-22 days
16 273-5827 Ball bearing $38.26 4 ships same day
17 173-6287 Screw M5 x 16mm (OBSOLETE) $2.26 2 usually ships 1-5 days
