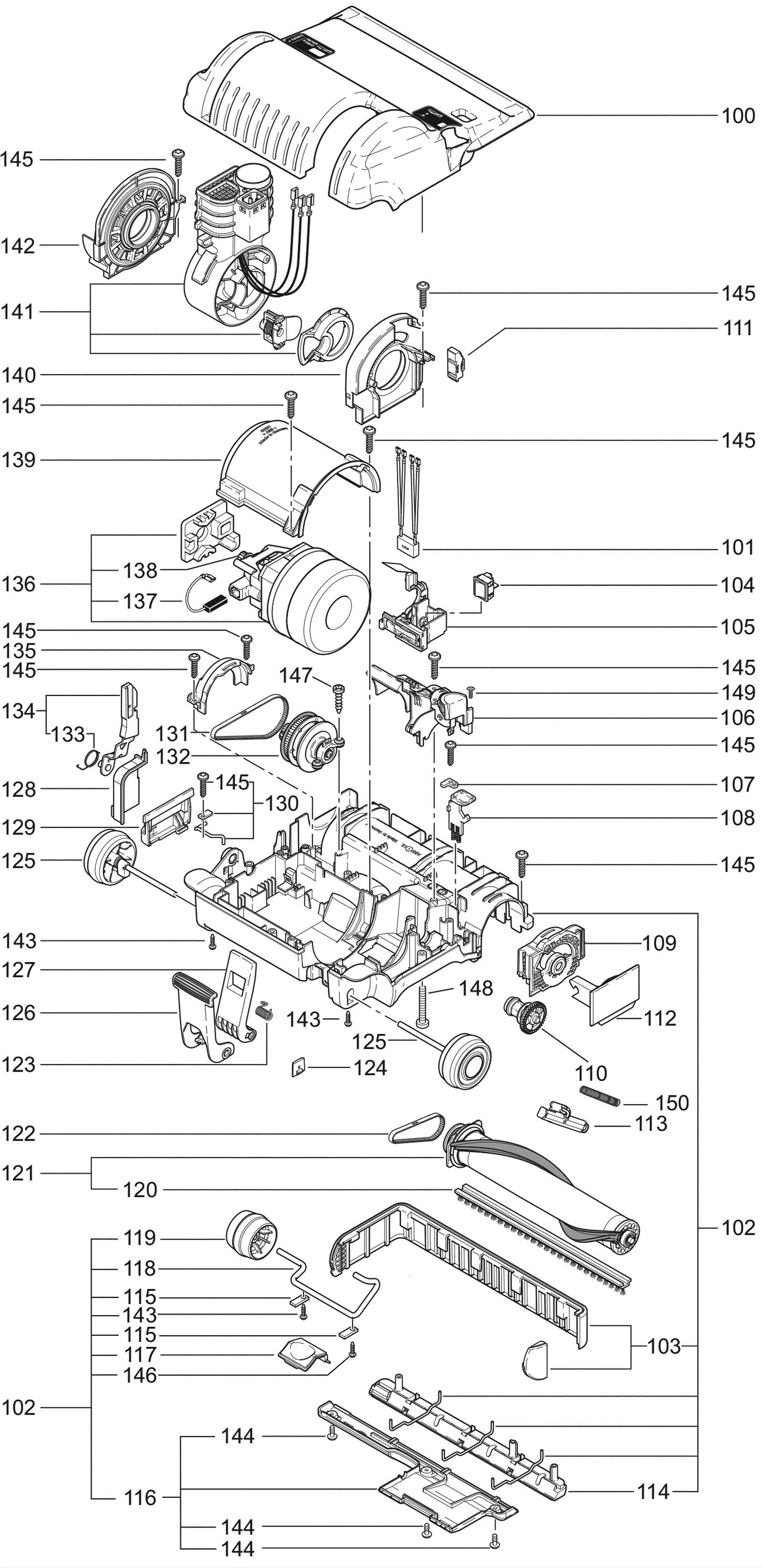

Power Head Assembly

#PartDescription ReqNotesAvailability
100 273-8620 Cover
101 273-1172 Suppressor kit
102 273-1173 12 inch chassis (includes 103, 112-127, 143, 144, 146, 148, and 150)
103 273-8621 Bumper
104 273-1175 Switch
105 273-1176 Switching unit
106 273-1177 Air channel cover
107 173-5263 Clamp (OBSOLETE)
108 273-1178 Brush roll release
109 273-1198 Right hand bearing block
110 273-1180 Cam
111 173-5260 Thrust member
112 273-3547 Brush strip cover
113 173-5262 Thrust member
114 273-1182 Front bottom plate
115 173-5257 Axle clamp
116 273-1184 Rear bottom plate
117 273-7613 Access panel
118 173-5256 Pile adjustment axle
119 173-2410 Pile adjustment wheel
120 273-1185 12 inch brush strip
121 273-1186 12 inch brush roller
122 173-2424 Belt
123 273-1187 Spring
124 273-1188 Rubbing plate (black)
125 273-1189 Axle and wheel
126 273-1190 Foot pedal
127 273-1191 Pedal catch
128 273-1192 Covering cap
129 273-1193 Power switch button
130 273-1194 Switch rod
131 173-2423 Belt
132 273-1195 Sensor with hardware
133 173-2418 Support spring
134 273-1196 Support lever with spring
135 273-1179 Left hand bearing block
136 273-1197 120V brush motor
137 173-4726 Carbon brush (pkg of 2)
138 173-2416 Motor pulley
139 273-1199 Motor cover
140 273-1200 Right hand swivel support
141 273-1201 Swivel neck
142 273-1202 Left hand swivel neck support
143 173-0007 Screw M3-.5 x 13mm
144 273-0939 Screw M4-.7 x 12mm with washer
145 173-4203 Screw M4 x 16mm self-tapping torx
146 273-1203 Screw M4 x 16mm
147 273-1151 Screw
148 999-1518 Screw M4-.7 x 30mm pan head phillips zinc plated
149 273-1204 Screw M4 x 10mm
150 273-8622 Spring
