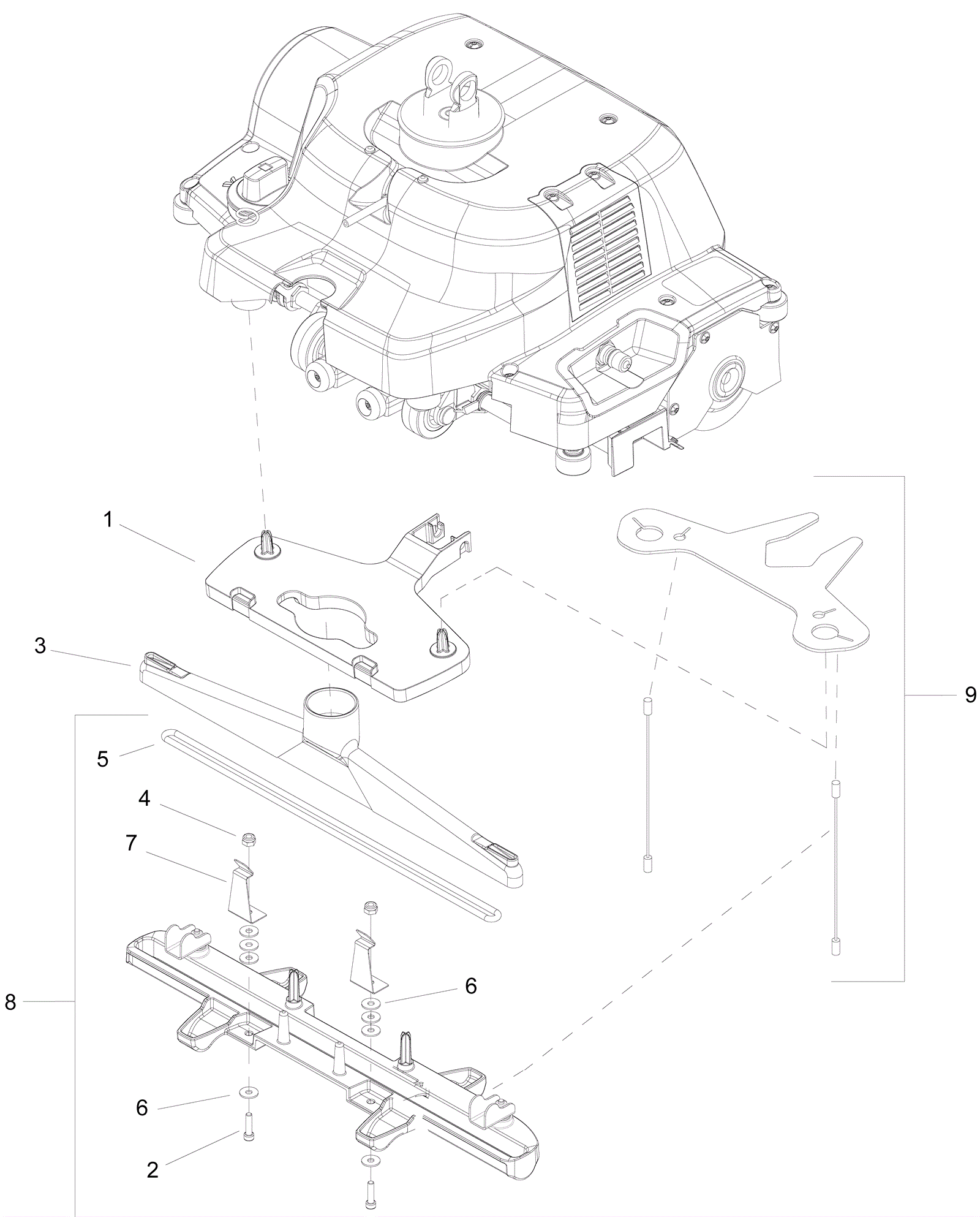

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
273-3627
|
Vacuum shoe linkage |
$40.02
|
1 |
|
ships same day |
2 |
173-5008
|
Screw 10-32 x 3/4 shoulder socket cap ss (OBSOLETE) |
$6.88
|
2 |
|
usually ships 1-5 days |
3 |
273-8543
|
Vacuum shoe cover |
$56.02
|
1 |
|
usually ships 14-22 days |
4 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
$1.76
|
2 |
|
ships same day |
5 |
273-3252
|
Gasket |
$56.85
|
1 |
|
usually ships 14-22 days |
6 |
273-5591
|
Washer M5 flat stainless steel |
$2.33
|
8 |
|
usually ships 14-22 days |
7 |
273-6532
|
Spring clip |
$62.38
|
2 |
|
usually ships 14-22 days |
8 |
273-8544
|
Vacuum shoe assembly |
$351.92
|
1 |
(inlcudes 2,4,5-7) |
ships same day |
9 |
273-8545
|
Vacuum shoe bracket |
$60.03
|
1 |
|
usually ships 14-22 days |
