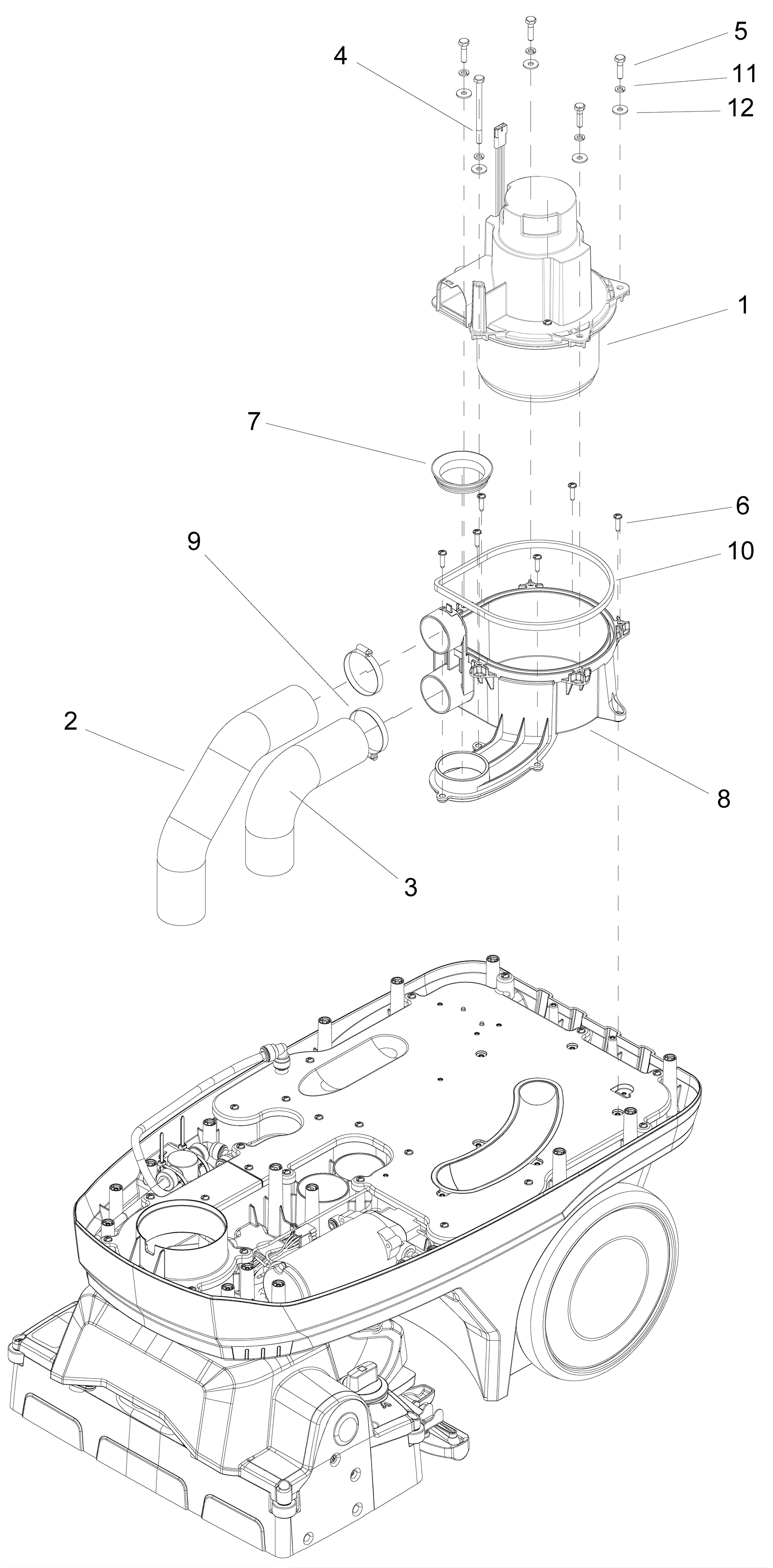

ARMADA BRC 40/22 Vacuum Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-8539 120V vacuum motor assembly $242.00 1 usually ships 14-22 days
2 273-8540 14 inch hose $32.12 1 usually ships 14-22 days
3 273-8541 11 inch hose $28.93 1 usually ships 14-22 days
4 999-1609 Bolt M6-1 x 90mm hex head stainless steel $3.75 1 ships same day
5 999-1087 Bolt M6-1 x 25mm hex head stainless steel $0.99 4 ships same day
6 273-8440 Screw (OBSOLETE) $5.48 6 usually ships 14-22 days
7 273-8531 Seal $17.27 1 ships same day
8 273-8542 Vacuum motor housing $79.75 1 usually ships 14-22 days
9 997-2007 Hose clamp $2.07 2 ships same day
10 273-7314 Gasket $6.55 1 usually ships 14-22 days
11 273-5506 Washer 6mm spring lock (OBSOLETE) $1.52 5 usually ships 14-22 days
12 173-4178 Washer M6 flat plated (OBSOLETE) $1.45 5 usually ships 14-22 days
