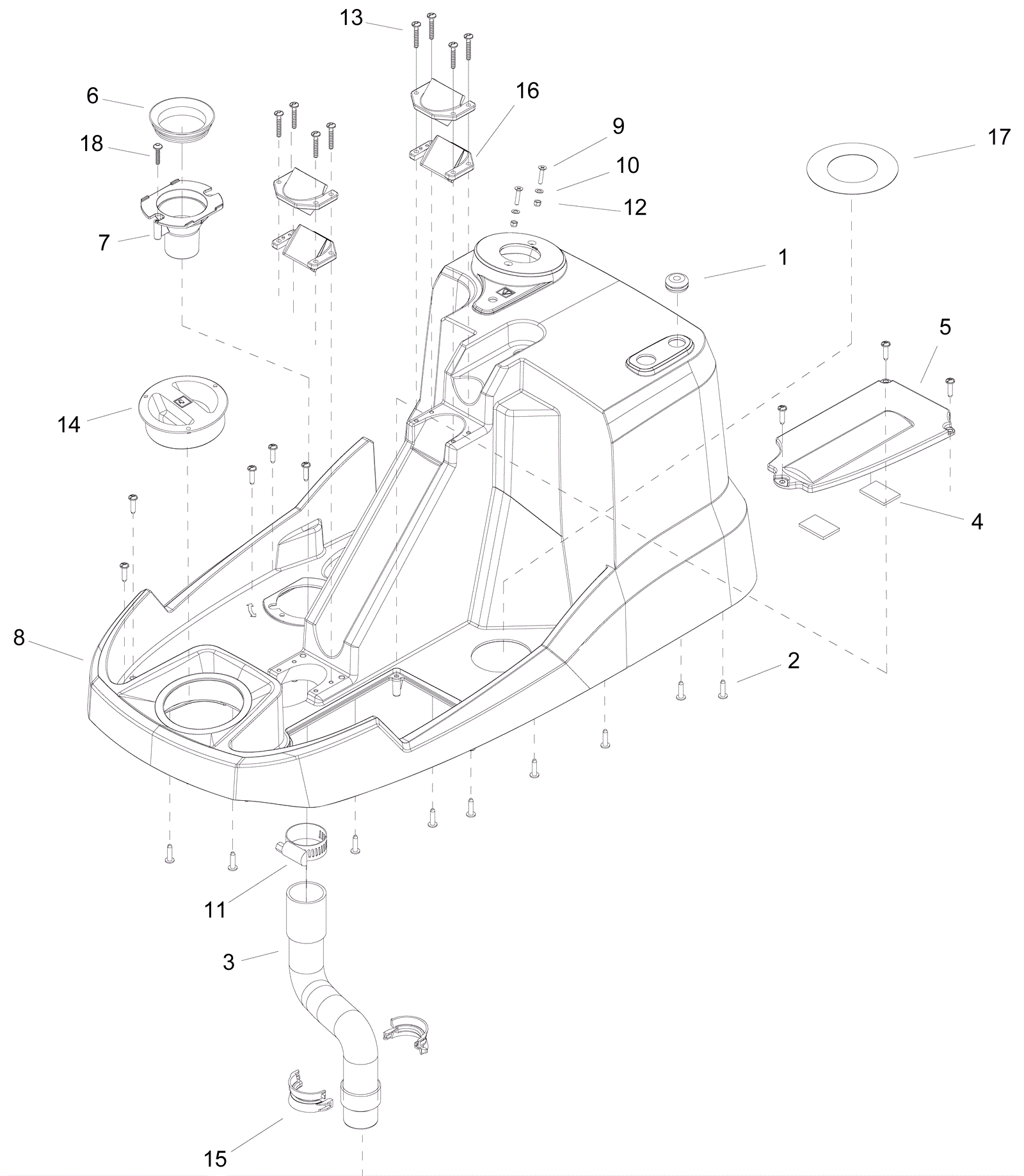

ARMADA BRC 40/22 Solution Tank Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-8527 Grommet (OBSOLETE) $5.50 1 usually ships 14-22 days
2 273-8440 Screw (OBSOLETE) $5.48 17 usually ships 14-22 days
3 273-8528 16 inch hose $92.98 1 usually ships 14-22 days
4 273-8529 Gasket $3.75 2 usually ships 14-22 days
5 273-8530 Solution pump cover $21.56 1 usually ships 14-22 days
6 273-8531 Seal $18.48 1 ships same day
7 273-8532 Tube $19.31 1 usually ships 14-22 days
8 273-8533 Solution tank base $156.54 1 usually ships 14-22 days
9 999-9141 Screw M4-.7 x 20mm pan flat head phillips stainless steel $0.99 2 usually ships 12-18 days
10 173-7429 Washer M4 flat $1.06 2 usually ships 1-5 days
11 997-2007 Hose clamp $2.07 1 ships same day
12 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 2 ships same day
13 273-0977 Screw M5-10.9 x 30mm $3.96 8 usually ships 14-22 days
14 273-8534 Lid $5.43 1 usually ships 14-22 days
15 273-8535 Hose clamp $9.77 2 usually ships 14-22 days
16 273-8536 Bearing $18.48 4 usually ships 14-22 days
17 273-8537 Seal $28.60 1 usually ships 14-22 days
18 273-8538 Screw $4.18 1 usually ships 14-22 days
