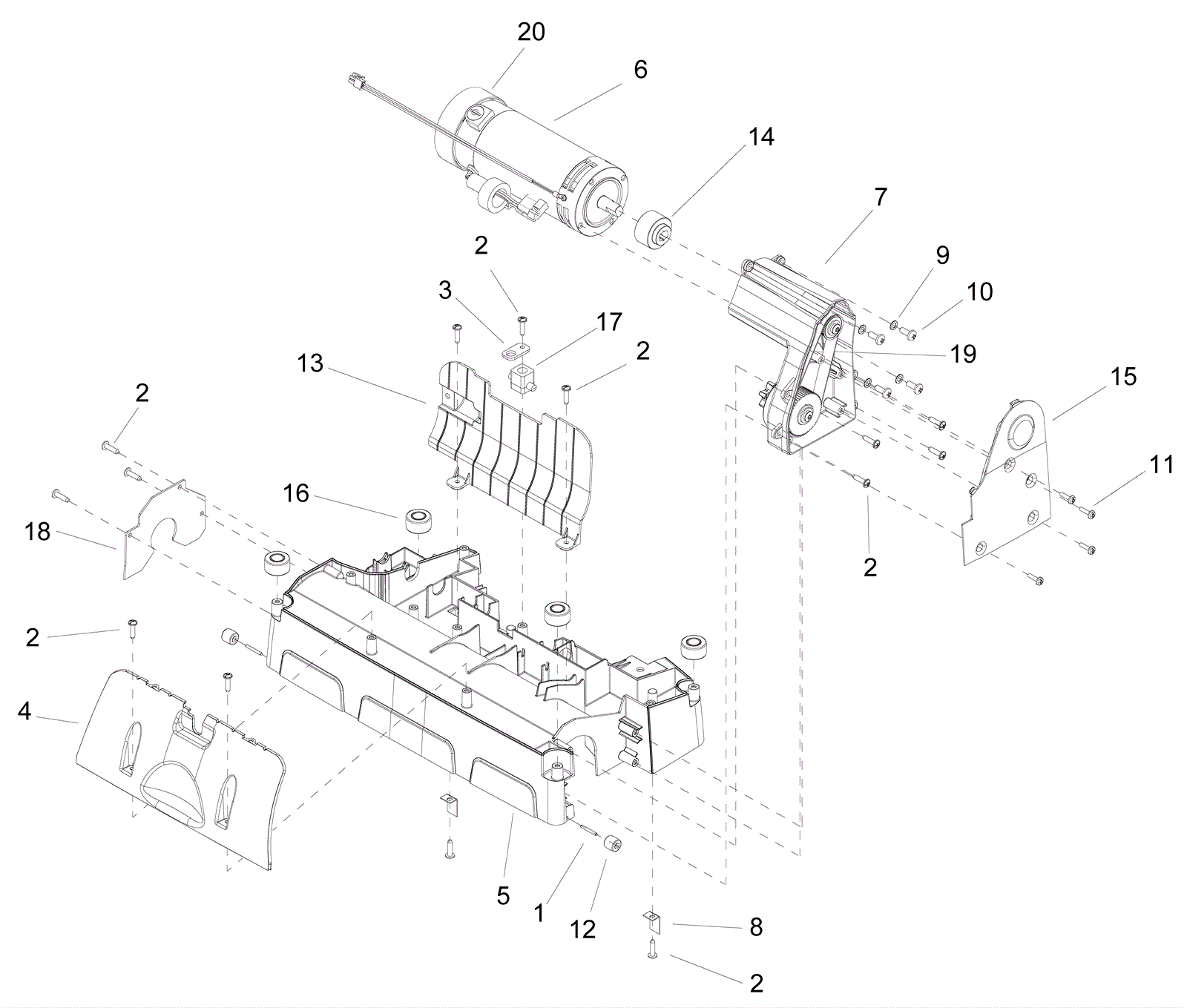

ARMADA BRC 40/22 Lower Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-8452 Axle $1.41 2 usually ships 14-22 days
2 273-8440 Screw (OBSOLETE) $5.48 14 usually ships 14-22 days
3 273-8453 Plate $4.03 1 usually ships 14-22 days
4 273-8454 Spray shield $25.89 1 usually ships 14-22 days
5 273-8455 Lower deck $46.02 1 usually ships 14-22 days
6 273-8456 120V brush motor assembly $882.75 1 (inlcudes 20) usually ships 14-22 days
7 273-8457 Gear case $760.34 1 usually ships 14-22 days
8 273-8458 Plate $11.19 2 usually ships 14-22 days
9 173-6298 Serrated lock washer $1.06 4 usually ships 1-5 days
10 183-0236 Screw $0.99 4 usually ships 15-28 days
11 173-6287 Screw M5 x 16mm (OBSOLETE) $2.26 4 usually ships 1-5 days
12 273-8459 Roller $4.81 2 ships same day
13 273-8460 Plate $41.07 1 usually ships 14-22 days
14 273-8461 Coupler $78.28 1 usually ships 14-22 days
15 273-8462 Gear case cover $36.01 1 usually ships 14-22 days
16 273-8463 Deflector $7.83 4 usually ships 14-22 days
17 273-8464 Swivel joint $16.71 1 usually ships 14-22 days
18 273-8465 Brush plate $107.70 1 usually ships 14-22 days
19 273-8466 Belt $87.69 1 usually ships 14-22 days
20 273-8467 Brush motor fan $9.68 1 usually ships 14-22 days
