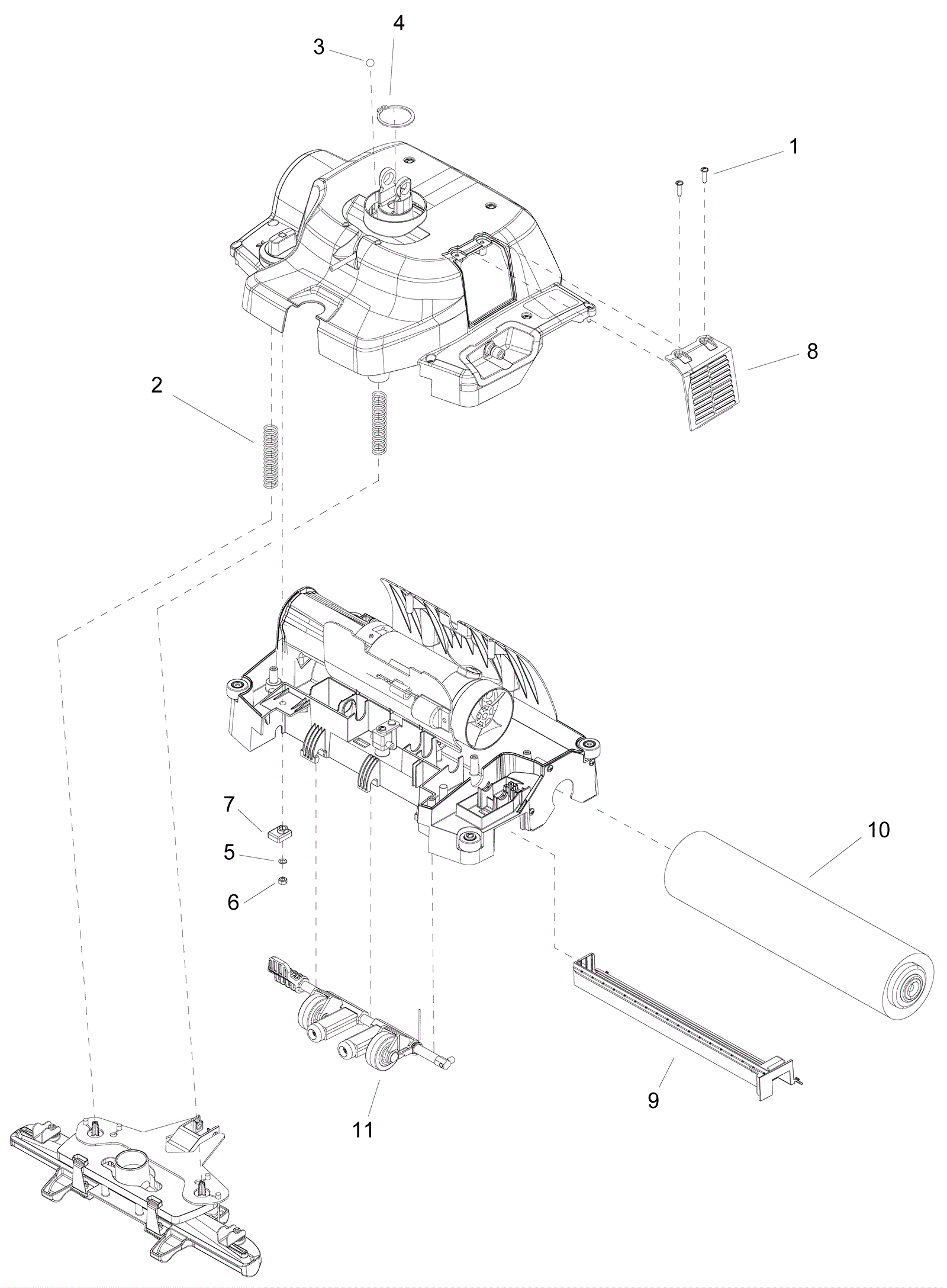

ARMADA BRC 40/22 Complete Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-8440 Screw (OBSOLETE) $5.48 2 usually ships 14-22 days
2 273-8446 Spring $7.10 2 ships same day
3 273-8447 Bracket $6.44 1 usually ships 14-22 days
4 273-8552 Locking ring $46.86 1 usually ships 14-22 days
5 173-6298 Serrated lock washer $0.99 1 usually ships 1-5 days
6 183-0262 Hex nut $1.35 1 usually ships 1-5 days
7 273-8553 Bracket $1.28 1 usually ships 14-22 days
8 273-8448 Cover $17.27 1 usually ships 14-22 days
9 273-8449 Debris drawer $27.06 1 ships same day
10 273-8450 Brush (green) $54.01 1 ships same day
11 273-8451 Wheel assembly $171.28 1 usually ships 14-22 days
