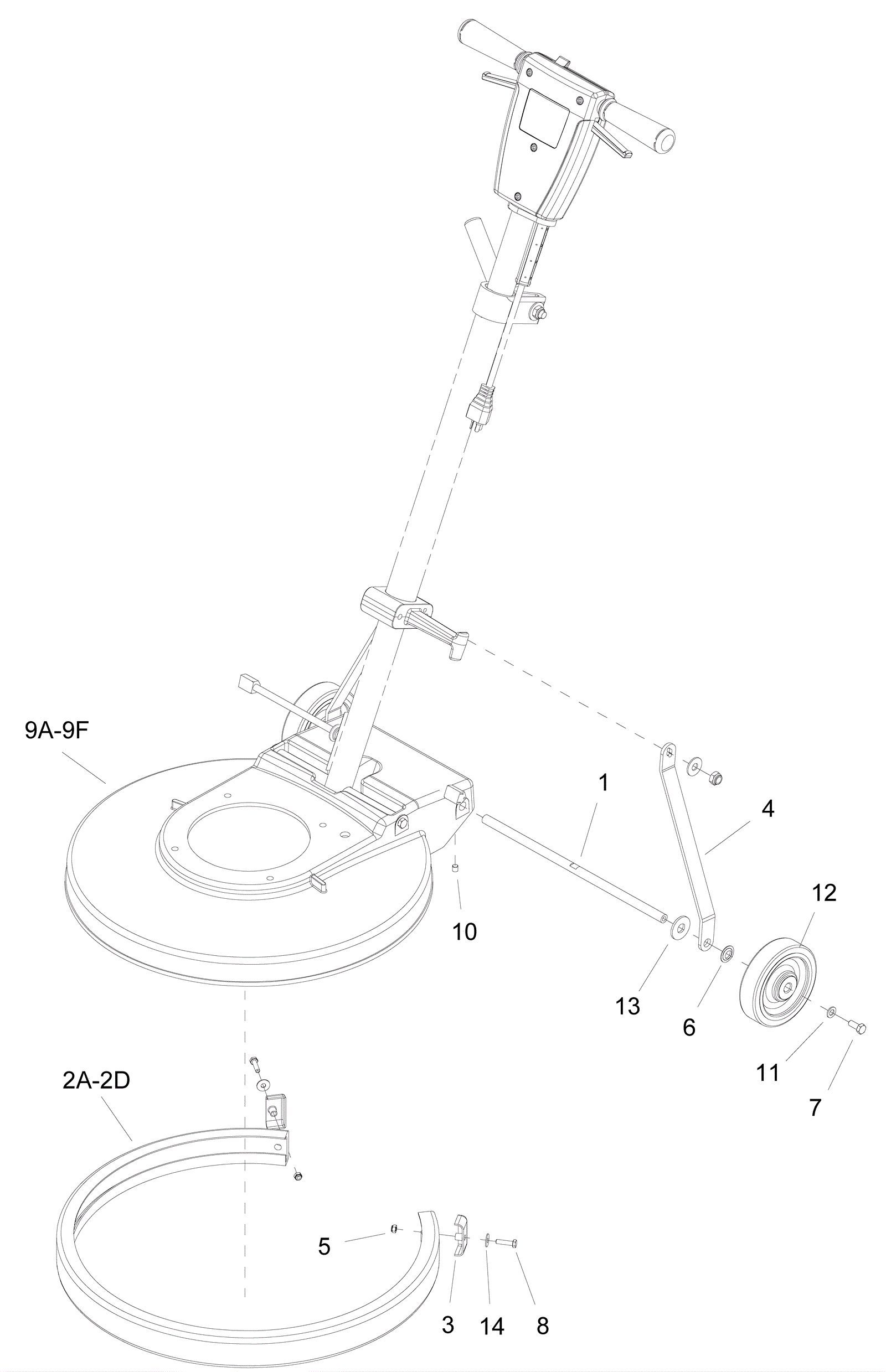

DECATHLON U20X Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-2829 Main axle $35.20 1 usually ships 14-22 days
2 173-2833 20 inch extrusion bumper (OBSOLETE) $121.00 1 usually ships 14-22 days
3 173-2836 Fixing ram protection $13.64 2 usually ships 14-22 days
4 173-2841 Handle adjustment link $17.63 2 usually ships 14-22 days
5 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 ships same day
6 173-2834 Nut 1/2 flat push $11.33 2 usually ships 14-22 days
7 273-4041 Screw M8 1.25 x 20mm $7.37 2 usually ships 14-22 days
8 999-0779 Screw M6-1 x 25mm hex head plain finish $0.99 2 ships same day
9 273-7743 20 inch deck (gray) $124.30 1 usually ships 14-22 days
10 999-1339 Screw M8-1.25 x 8mm set cup point $0.99 1 ships same day
11 999-1267 Washer M8 flat zinc $0.99 2 ships same day
12 173-4664 Wheel (gray) $37.40 2 usually ships 14-22 days
13 999-0972 Washer M14 flat $2.75 2 usually ships 14-22 days
14 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
