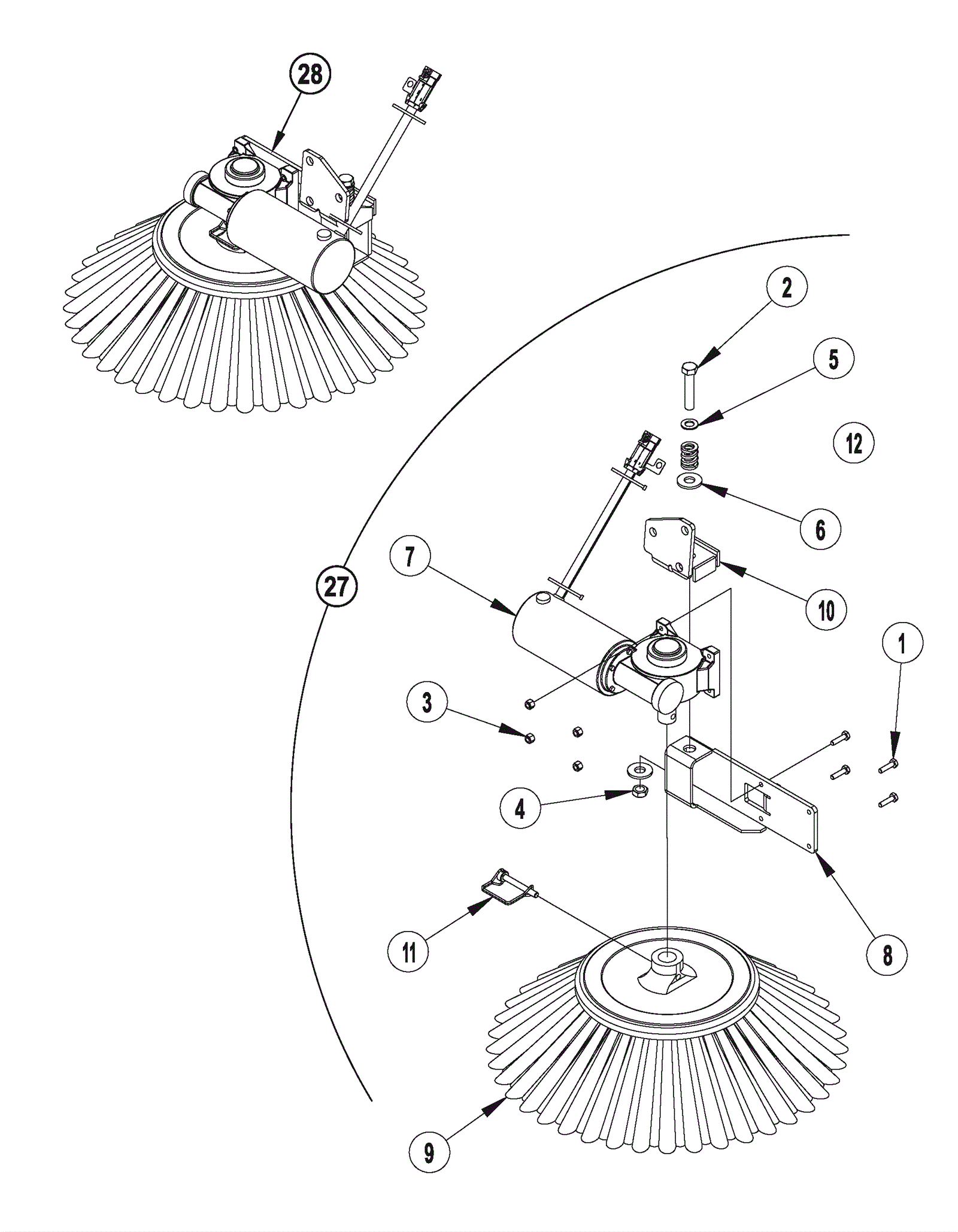

CONDOR 4830 Side Side Broom Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0830 Screw 1/4-20 x 1 hex head plain finish $0.99 4 ships same day
2 999-1573 Screw 1/2-13 x 2 1/2 hex head stainless steel $9.75 1 usually ships 1-5 days
3 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 4 ships same day
4 999-0262 Nut 1/2-13 nylon insert jam lock zinc plated $0.99 1 ships same day
5 172-0550 Washer 33/64 x 3/4 flat $11.35 1 usually ships 13-18 days
6 172-4569 Washer 19/32 x 1 3/8 x 1/8 flat hardened $12.89 2 usually ships 1-5 days
7a 272-5881 36V gearmotor assembly $1,154.45 1 (left hand) usually ships 1-5 days
7b 272-5882 36V gearmotor assembly $1,250.63 1 (right hand) usually ships 1-5 days
7c 272-8521 Carbon brush $56.50 2 usually ships 1-5 days
8a 272-5883 Left hand sidebroom bracket weldment $111.79 1 usually ships 1-5 days
8b 272-5884 Right hand sidebroom bracket weldment $110.30 1 usually ships 1-5 days
9b 272-5885 Sidebroom $201.03 1 usually ships 13-18 days
10 272-5883 Left hand sidebroom bracket weldment $111.79 1 usually ships 1-5 days
10b 272-5884 Right hand sidebroom bracket weldment $110.30 1 usually ships 1-5 days
11 272-5888 Pin with retainer $5.50 1 usually ships 13-18 days
12 272-5879 Die spring $45.00 1 usually ships 1-5 days
27 272-5870 Left side broom assembly $1,843.84 1 (includes 1-12) usually ships 1-5 days
28 272-5871 Right side broom assembly $1,843.84 1 (includes 1-12) usually ships 13-18 days
