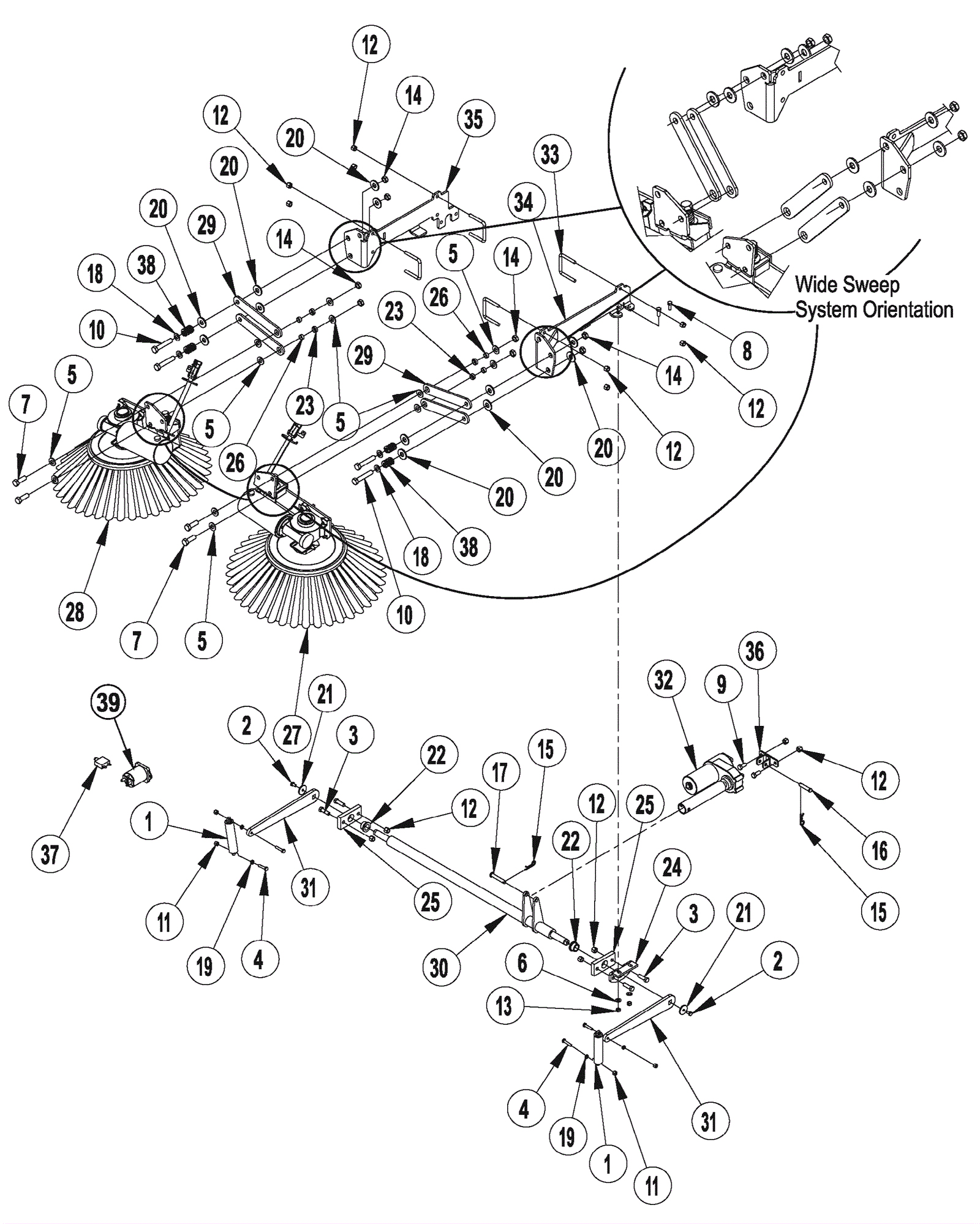

CONDOR 4830 Sweep Assembly

#PartDescriptionPriceReqNotesAvailability
1 172-9385 Chain assembly $43.93 2 usually ships 1-5 days
2 999-1532 Screw 1/4-20 x 1/2 hex head stainless steel $0.99 2 ships same day
3 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel $7.56 4 ships same day
4 999-0298 Bolt 1/4-20 x 1 1/4 hex head stainless steel $0.99 4 ships same day
5 999-0114 Washer 1/2 SAE flat $0.99 12 ships same day
6 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
7 999-0558 Bolt 1/2-13 x 1 1/2 hex head stainless steel $1.67 4 ships same day
8 181-0983 Screw 5/16-18 x 7/8 hex head $10.90 2 usually ships 1-5 days
9 999-0812 Screw 3/8-16 x 7/8 hex head grade 5 plain finish $0.99 2 ships same day
10 172-5134 Screw 1/2-13 x 2 3/4 hex $12.18 4 usually ships 1-5 days
11 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 4 ships same day
12 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 14 ships same day
13 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
14 999-0262 Nut 1/2-13 nylon insert jam lock zinc plated $0.99 8 ships same day
15 272-9987 Cotter pin $8.30 2 usually ships 1-5 days
16 272-3526 Clevis pin $10.90 1 usually ships 1-5 days
17 172-3484 Clevis pin $10.90 1 usually ships 1-5 days
18 172-0550 Washer 33/64 x 3/4 flat $9.60 4 usually ships 16-41 days
19 999-0971 Nut 1/4-20 jam stainless steel $0.99 4 ships same day
20 172-4569 Washer 19/32 x 1 3/8 x 1/8 flat hardened $10.90 12 usually ships 1-5 days
21 172-3610 Washer flat brass $10.90 2 usually ships 1-5 days
22 272-5867 Flange bearing $13.70 2 usually ships 1-5 days
23 272-3828 Sleeve bearing $13.70 4 usually ships 1-5 days
24 272-5868 Side broom lift bracket $34.19 1 usually ships 1-5 days
25 272-5869 Pillow block $17.68 2 usually ships 1-5 days
26 172-0139 Bushing $12.18 4 usually ships 1-5 days
27 272-5870 Left side broom assembly $1,558.88 1 usually ships 1-5 days
28 272-5871 Right side broom assembly $1,558.88 1 usually ships 16-41 days
29 272-5880 Link $30.22 4 usually ships 1-5 days
30 272-5872 Sidebroom lift arm weldment $264.47 1 usually ships 1-5 days
31 272-5872 Sidebroom lift arm weldment $264.47 2 usually ships 1-5 days
32 272-5874 36V actuator motor $535.59 1 usually ships 1-5 days
33 272-5875 Wide clamp $9.60 4 usually ships 1-5 days
34 272-5876 Left hand sidebroom bracket weldment $162.78 1 usually ships 1-5 days
35 272-5877 Right hand sidebroom bracket weldment $149.70 1 usually ships 1-5 days
36 272-5878 Actuator mount $55.83 1 usually ships 1-5 days
37 272-7727 20amp circuit breaker $25.87 1 ships same day
38 272-5879 Die spring $38.04 4 usually ships 1-5 days
39 272-9761 36V 200amp contactor $84.67 1 usually ships 1-5 days
