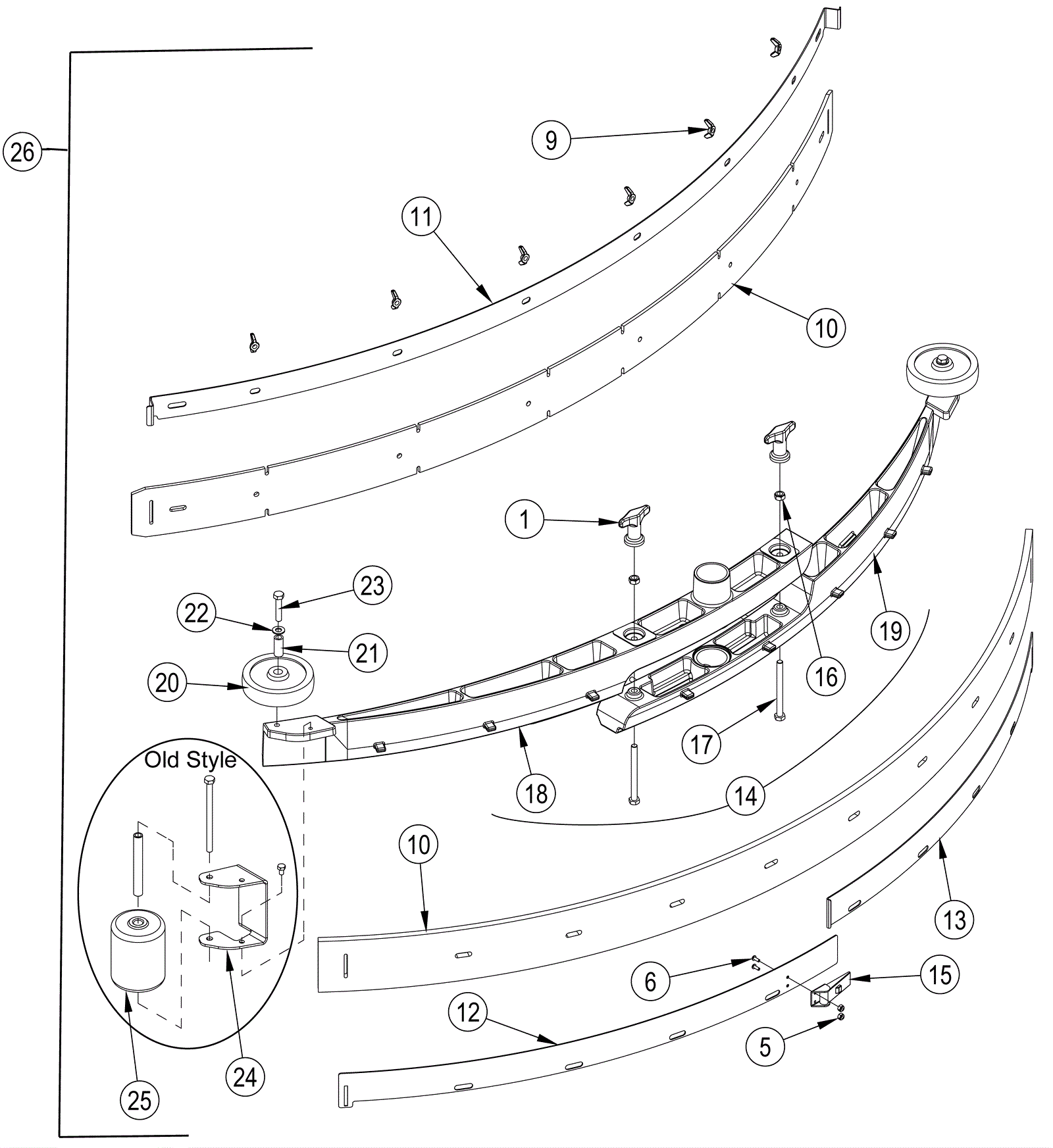

CONDOR 4030 45 and 48 Inch Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 172-4099 Nut 5/16-18 thumb $11.26 2 ships same day
5 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 2 ships same day
6 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel $0.99 2 ships same day
9 999-0603 Nut 1/4-20 wing stainless steel $7.33 6 ships same day
10a 272-5858 45 inch linatex squeegee blade kit $192.02 1 (45 inch) usually ships 16-41 days
10b 272-6794 Squeegee blade kit 48 inch linatex (red) $201.47 1 (48 inch) usually ships 16-41 days
10c 272-5859 45 inch gum rubber squeegee blade kit $110.44 1 (45 inch) usually ships 16-41 days
10d 272-5860 48 inch gum rubber squeegee blade $140.73 1 (48 inch) usually ships 16-41 days
10e 272-5861 45 inch polyurethane squeegee blade kit $477.30 1 (45 inch) usually ships 16-41 days
10f 272-5862 48 inch polyurethane squeegee blade kit $559.57 1 (48 inch) usually ships 16-41 days
11a N/A Not available Call for price 1 (Front strap)(45 inch) usually ships 3-26 days
11b 272-4005 Front H strap $62.83 1 (48 inch) ships same day
12a 272-5863 Left hand rear strap $37.61 1 (45 inch) usually ships 16-41 days
12b 272-3998 Rear H strap $33.24 1 (48 inch) ships same day
13a 272-5864 Right hand rear strap $51.28 1 (45 inch) usually ships 16-41 days
13b 272-4006 Rear H strap $76.52 1 (48 inch) usually ships 16-41 days
14a 272-5865 45 inch squeegee weldment assembly $618.74 1 (45 inch) (includes 16-19) usually ships 1-5 days
14b 272-5866 48 inch squeegee weldment assembly $723.40 1 (48 inch) (includes 16-19) usually ships 16-41 days
15 172-0094 Latch $43.41 1 ships same day
16 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
17 172-4435 Hex 5/16-18 x 3.50 thd to hd $11.99 2 usually ships 1-5 days
18a N/A Not available Call for price 1 (Top squeegee weldment)(45 inch) usually ships 3-26 days
18b N/A Not available Call for price 1 (Top squeegee weldment)(48 inch) usually ships 3-26 days
19a N/A Not available Call for price 1 (Bottom squeegee weldment)(45 inch) usually ships 3-26 days
19b N/A Not available Call for price 1 (Bottom squeegee weldment)(48 inch) usually ships 3-26 days
20 172-2085 Wheel $52.69 2 (new style) ships same day
21 181-0715 Bushing $14.51 2 (new style) usually ships 1-5 days
22 999-0024 Washer 5/16 flat stainless steel $1.34 2 (new style) ships same day
23 272-5857 Screw M8-1.25 x 40mm hex head SS $13.40 2 (new style) usually ships 1-5 days
24 172-9363 Bracket $86.76 2 (old style) usually ships 1-5 days
25 172-9157 Roller wheel $44.79 2 (old style) usually ships 16-41 days
KIT 1 272-5841 45 inch squeegee assembly $1,207.89 1 (45 inch)(includes 10a, 11a, 12a, 13a, 14a, 18a and 19a) usually ships 1-5 days
KIT 2 272-5842 48 inch squeegee assembly $1,237.47 1 (48 inch)(includes 10b, 11b, 12b, 13b, 14b, 18b and 19b) usually ships 1-5 days
