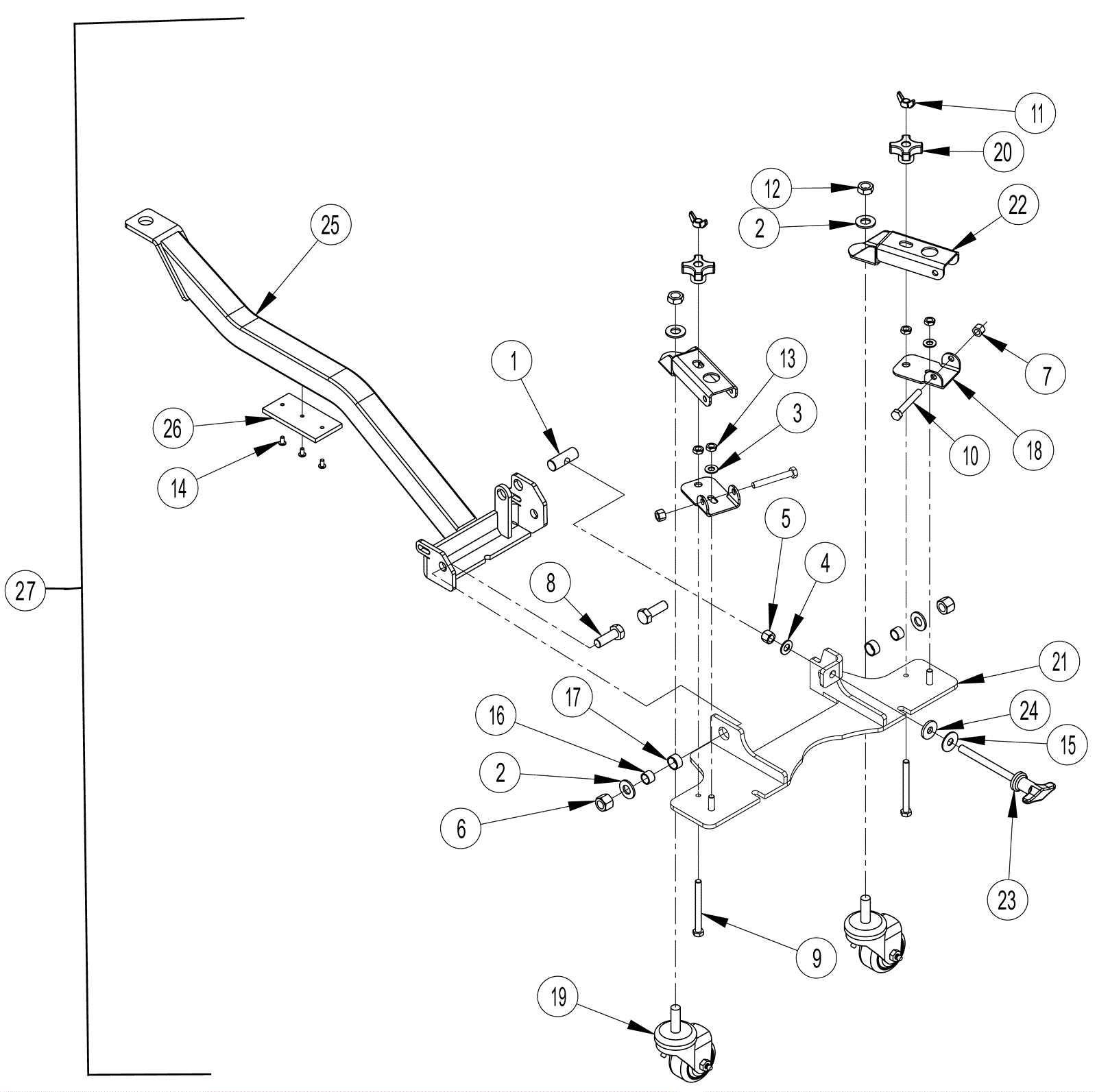

CONDOR 4530 Squeegee Arm Assembly

#PartDescriptionPriceReqNotesAvailability
1 172-0070 Pin $53.79 1 usually ships 16-41 days
2 999-0114 Washer 1/2 SAE flat $0.99 4 ships same day
3 999-9004 Washer 5/16 SAE flat stainless steel $1.69 2 ships same day
4 999-9128 Washer 3/8 SAE flat stainless steel $2.11 1 ships same day
5 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 1 ships same day
6 999-0519 Nut M12-1.75 nylon insert lock stainless steel $2.12 2 ships same day
7 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
8 272-5777 Screw M12-1.75 x 35mm hex head SS $10.90 2 usually ships 1-5 days
9 272-1584 Bolt 5/16-18 X 3 1/4 hex head stainless steel $4.78 2 usually ships 16-41 days
10 999-1368 Screw M8-1.25 x 60mm hex head stainless steel $3.41 2 ships same day
11 272-1585 Nut 5/16-18 wing stainless steel $10.90 2 usually ships 1-5 days
12 999-0050 Nut 1/2-13 hex jam plain finish $0.99 2 ships same day
13 999-1019 Nut 5/16-18 hex jam stainless steel $0.99 4 ships same day
14 272-6384 Screw 10-24 x .38 pan head phillips loc SS $8.20 3 usually ships 16-41 days
15 172-0308 Fiber washer $4.78 1 usually ships 16-41 days
16 172-0072 Bushing $39.46 2 usually ships 16-41 days
17 272-5599 Sleeve bearing $12.18 2 usually ships 16-41 days
18 272-4009 Bracket $10.90 2 usually ships 16-41 days
19 172-9374 Caster wheel $156.25 2 usually ships 16-41 days
20 272-2567 Knob $10.90 2 usually ships 16-41 days
21 272-5848 Squeegee mount weldment $149.70 1 usually ships 1-5 days
22 272-5849 Bracket $57.12 2 usually ships 1-5 days
23 272-5850 Knob $43.93 1 usually ships 1-5 days
24 272-5851 Rubber washer $13.70 1 usually ships 16-41 days
25 272-5852 Squeegee arm weldment $447.62 1 usually ships 1-5 days
26 272-5853 Squeegee arm wear pad $10.90 1 usually ships 1-5 days
27 272-5843 Squeegee arm assembly $819.56 1 (includes 1-26) ships same day
