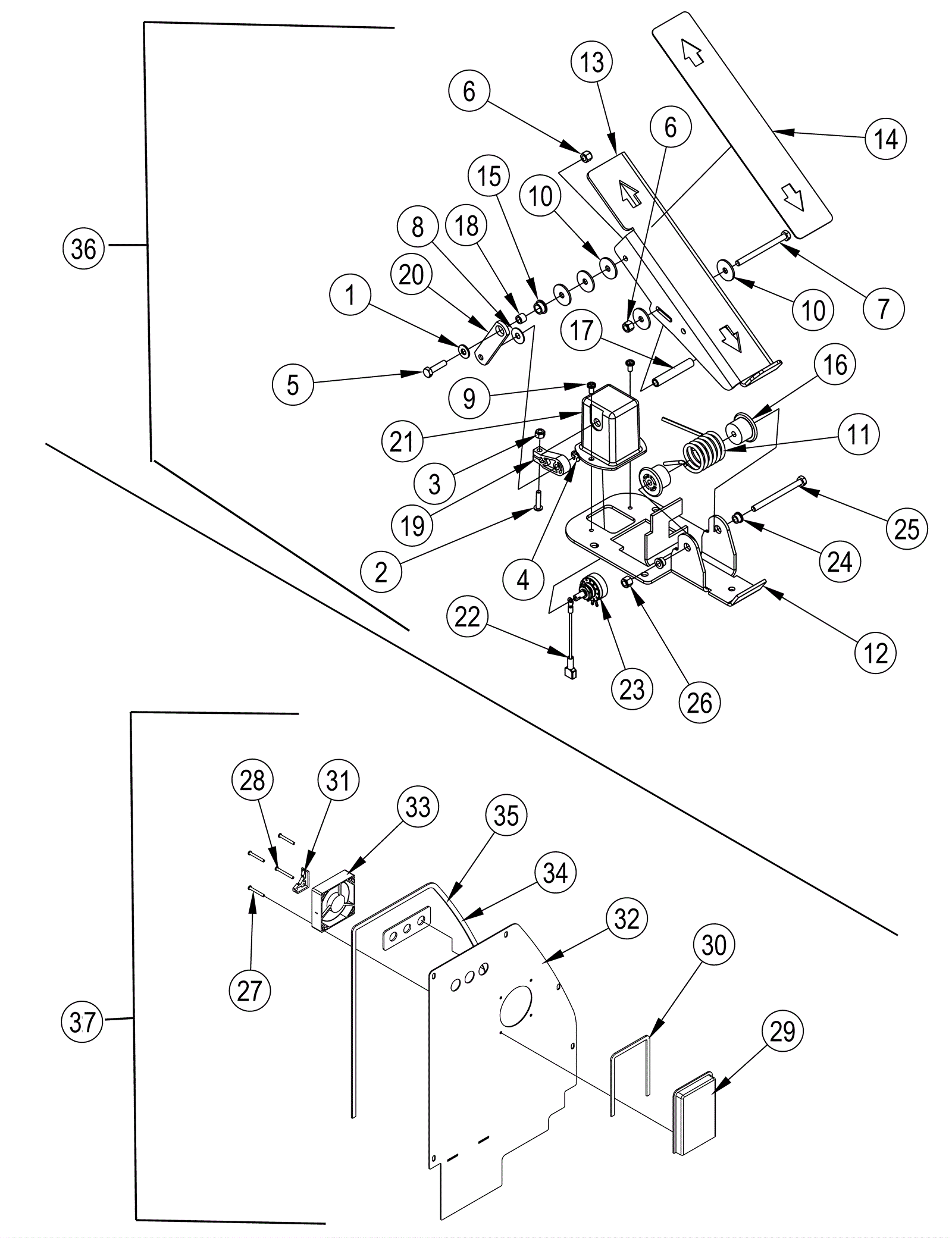

CONDOR 4530 Drive Pedal and Electrical Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 ships same day
2 999-0520 Screw 10-24 x 1 pan head phillips stainless steel $0.99 1 ships same day
3 999-0199 Nut 10-24 nylon insert lock zinc plated $0.99 1 ships same day
4 172-0392 Retaining ring $9.60 1 usually ships 16-41 days
5 999-0779 Screw M6-1 x 25mm hex head plain finish $0.99 1 ships same day
6 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 ships same day
7 272-5835 Screw M6-1 x 75mm hex head $10.90 1 usually ships 1-5 days
8 172-0369 Washer 17/64 x 3/4 x 23/64 flat $10.90 1 usually ships 1-5 days
9 999-1152 Screw 10-24 x 3/8 pan head phillips thread rolling zinc $0.99 2 ships same day
10 172-0548 Washer 17/64 x 47/64 flat stainless steel $9.60 5 usually ships 16-41 days
11 172-3301 Torsion spring $27.53 1 usually ships 1-5 days
12 N/A Not available Call for price 1 (Foot pedal bracket) (order 36 to replace) usually ships 3-26 days
13 N/A Not available Call for price 1 (Foot pedal) (order 36 to replace) usually ships 3-26 days
14 172-3307 Pedal pad $12.18 1 usually ships 1-5 days
15 172-8815 Flanged bearing $12.18 1 usually ships 16-41 days
16 272-9419 Spring spacer $10.90 2 usually ships 1-5 days
17 272-9963 Bushing $14.61 1 usually ships 1-5 days
18 272-9410 Bushing M6 $23.37 1 usually ships 1-5 days
19 172-8818 Throttle lever $12.35 1 usually ships 1-5 days
20 172-8819 Weldment link $116.80 1 usually ships 1-5 days
21 172-8821 Potentiometer housing $25.87 1 usually ships 16-41 days
22 172-8825 Wire assembly $12.18 1 usually ships 1-5 days
23 172-2039 5K potentiometer $55.83 1 ships same day
24 172-4120 Flanged bearing $13.70 2 usually ships 1-5 days
25 999-0824 Screw 1/4-20 x 3 hex head plain finish $0.99 1 ships same day
26 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 1 ships same day
27 172-2034 Screw 8-15 x 1 1/2 pan phil plastite $10.63 3 usually ships 1-5 days
28 272-0414 Screw 8-15 x 1 3/4 pan phillips plastic $10.90 1 usually ships 1-5 days
29 272-0410 Fan cover $9.80 1 usually ships 1-5 days
30 272-0411 Gasket $10.90 1 usually ships 1-5 days
31 272-0413 Board holder $9.80 1 usually ships 1-5 days
32 272-5836 Electrical cover $69.22 1 usually ships 1-5 days
33 272-7194 Fan assembly $100.59 1 usually ships 1-5 days
34 272-5837 Panel gasket $19.09 1 usually ships 1-5 days
35 272-5838 Circuit breaker gasket $9.60 1 usually ships 16-41 days
36 272-5405 Pedal assembly $339.39 1 (includes 1-26) usually ships 1-5 days
37 272-5834 Electrical panel cover assembly $298.66 1 (includes 27-35) usually ships 1-5 days
