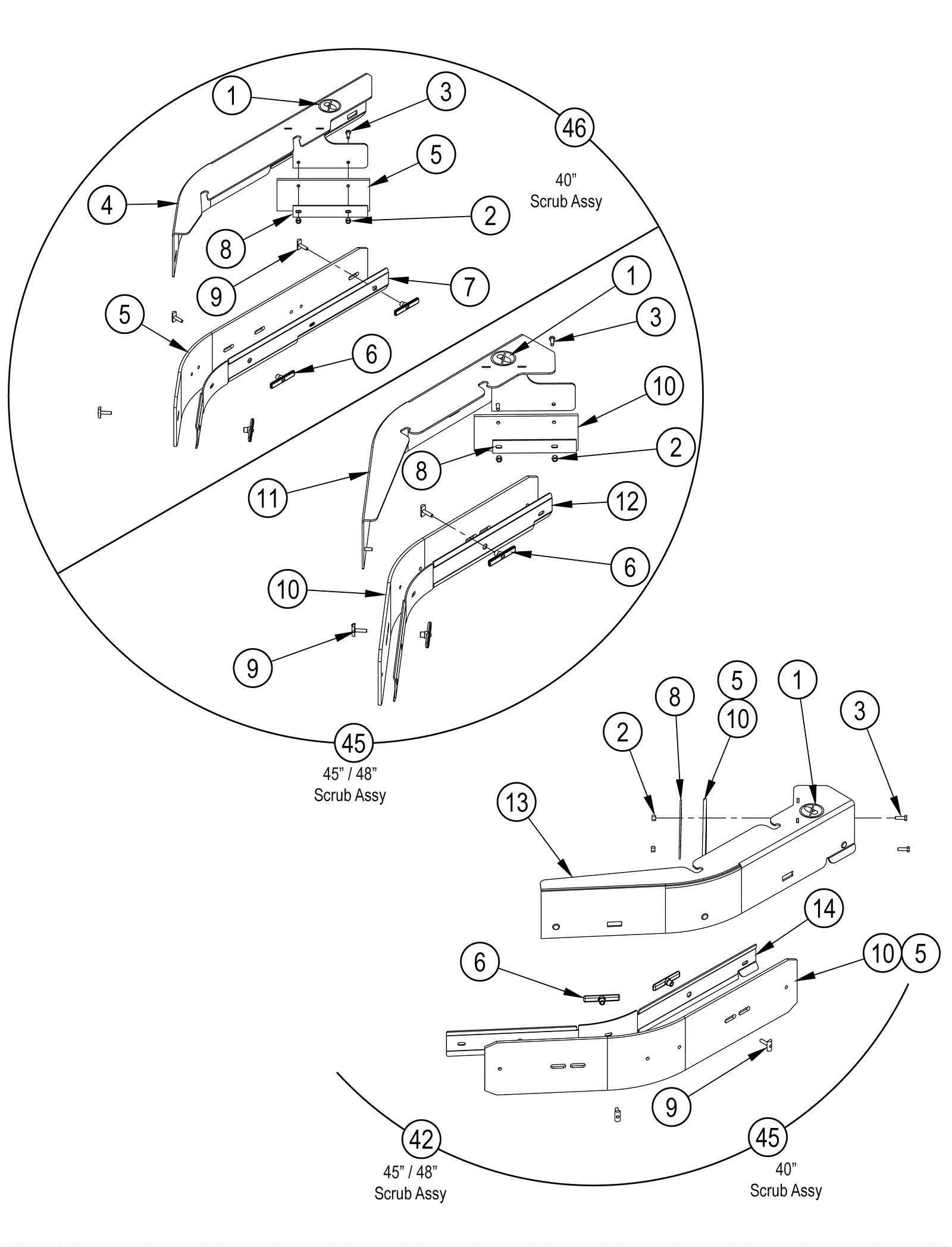

Skirt Assembly

#PartDescription ReqNotesAvailability
1 172-3428 No step decal 1
4 272-5802 40 inch left hand skirt weldment 1 (40 inch)
5a 272-7190 Disk skirt blade kit gum rubber (red) 1
5b 272-5803 40 inch gum rubber blade kit - disk 1
5c 272-5804 40 inch polyurethane blade kit - disk 1
6 272-3520 Thumb nut 3 (40 inch qty 4, 45 and 48 inch qty 2)
7 272-5805 40 inch left hand strap 1 (40 inch)
8 272-5806 Strap 1
9 272-3519 Skirt retainer (screw) 3 (40 inch qty 4, 45 and 48 inch qty 2)
10a 272-5807 linatex blade kit - disk 1 (45 and 48 inch)
10b 272-5808 Gum rubber blade kit - disk 1 (45 and 48 inch)
10c 272-5809 Polyurethane blade kit - disk 1 (45 and 48 inch)
11 272-5810 Left hand skirt weldment 1 (45 and 48 inch)
12 272-5811 Left hand strap 1 (45 and 48 inch)
13 272-5812 Right hand skirt weldment 1 (40, 45 and 48 inch)
14 272-5813 Right hand strap 1 (40, 45 and 48 inch)
42 272-5789 Right hand skirt assembly 1 (40, 45 and 48 inch)
45 272-5797 Left hand skirt assembly 1 (45 and 48 inch)
46 272-5790 Left hand skirt assembly 1 (40 inch)
