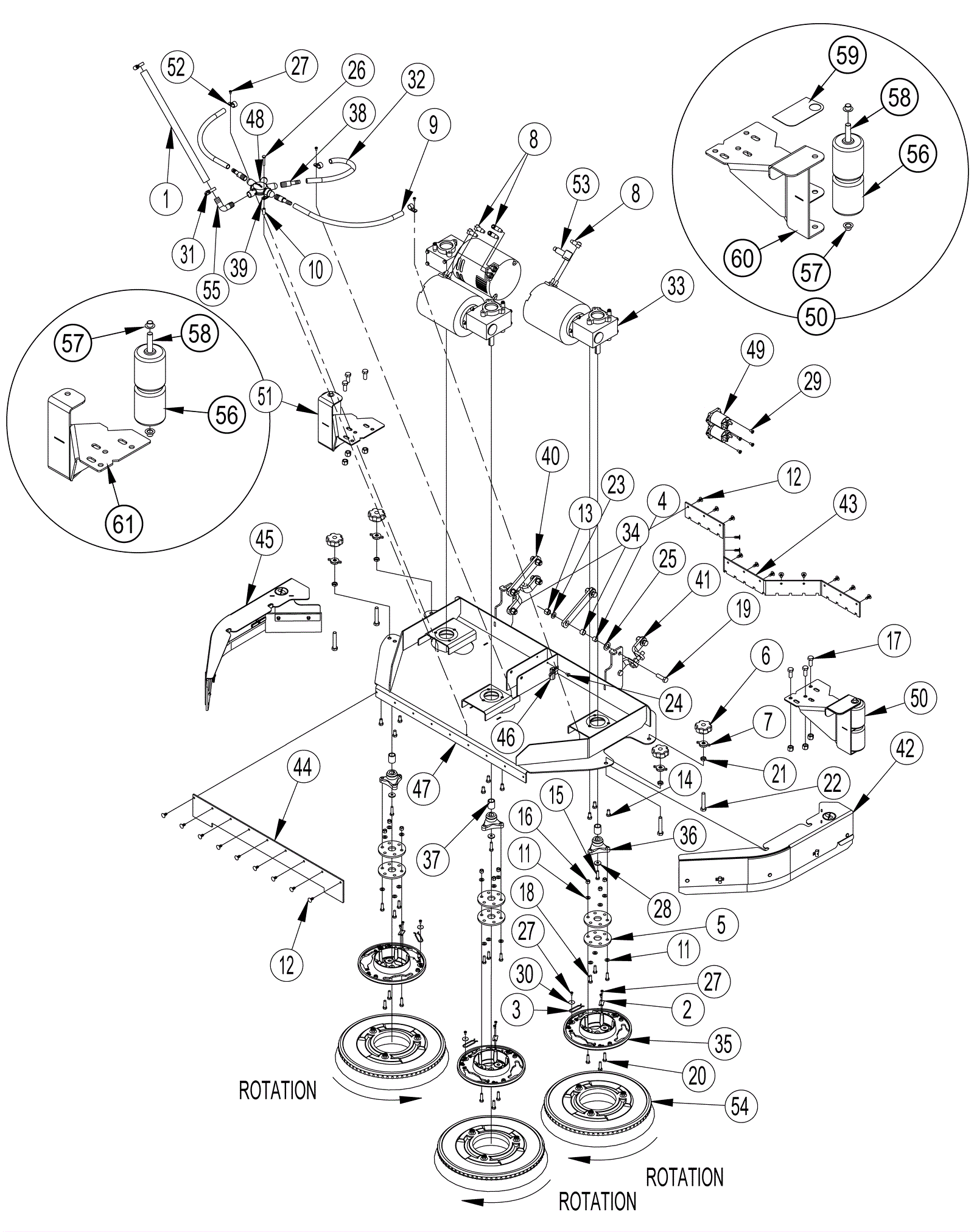

CONDOR 4830 45 and 48 Inch Scrub Assembly - Disk

#PartDescriptionPriceReqNotesAvailability
1 172-9344 Hose $33.44 1 usually ships 1-5 days
2 172-0155 Stop plate $10.90 3 usually ships 16-41 days
3 272-5779 Spring retainer $10.90 3 usually ships 16-41 days
4 172-0024 Bushing $12.18 8 usually ships 16-41 days
5 172-2070 Thermoid disk $8.20 6 ships same day
6 172-9281 Knob $10.24 4 usually ships 16-41 days
7 172-9282 Knob $11.66 4 usually ships 16-41 days
8 172-9147 Terminal insulator $12.18 5 ships same day
9 172-2072 Clear PVC hose $25.87 2 usually ships 1-5 days
10 172-0095 Bushing $32.15 1 usually ships 16-41 days
11 999-9004 Washer 5/16 SAE flat stainless steel $1.69 18 ships same day
12 991-5122 1/4 nylon tree push-in rivet $1.24 22 ships same day
13 999-0519 Nut M12-1.75 nylon insert lock stainless steel $2.12 14 ships same day
14 999-0185 Screw 3/8-16 x 3/4 flat head slotted zinc plated $0.99 9 ships same day
15 172-4423 Screw 5/16 -18 x 1 1/4 hex lock stainless steel $10.90 3 usually ships 1-5 days
16 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 9 ships same day
17 272-5770 Screw M12-1.75 x 30mm hex head $8.20 6 usually ships 1-5 days
18 272-5780 Screw M8-1 x 25mm hex head lock SS $9.60 9 ships same day
19 999-1326 Screw M12-1.75 x 40mm hex head $2.59 8 ships same day
20 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 9 ships same day
21 999-1377 Nut M12-1.75 hex jam $0.99 4 ships same day
22 999-1349 Screw M12-1.75 x 70mm full thread hex head stainless steel $5.98 4 ships same day
23 172-0550 Washer 33/64 x 3/4 flat $9.60 8 usually ships 16-41 days
25 272-7427 Washer 3/4 x 1 1/4 x 1/8 flat $9.60 8 usually ships 16-41 days
26 272-5781 Screw 1/4-20 x 1 1/2 hex head $9.60 1 usually ships 1-5 days
27 999-1152 Screw 10-24 x 3/8 pan head phillips thread rolling zinc $0.99 12 ships same day
28 172-3047 Washer 11/32 x 1/8 flat $10.90 3 usually ships 16-41 days
29 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc $0.99 4 ships same day
30 999-0588 Washer 7/8 flat stainless steel $11.44 3 ships same day
32 272-5791 Hose $10.90 1 usually ships 1-5 days
33a 272-5792 Gearmotor assembly $2,372.12 3 usually ships 1-5 days
33b 272-5793 Brush spring $16.27 4 usually ships 1-5 days
33c 272-5794 Carbon brush assembly $31.51 4 usually ships 1-5 days
34 272-8609 Bearing $12.18 8 usually ships 1-5 days
35 172-2089 Drive plate $74.16 3 usually ships 16-41 days
36 172-2088 Drive hub $40.72 3 usually ships 16-41 days
37 272-5782 Spacer $10.90 3 usually ships 1-5 days
38 272-2213 Coupler 1/2 x 3/4 barb $10.90 3 usually ships 1-5 days
39 172-1014 P clamp $10.90 1 usually ships 1-5 days
40 272-5726 Parallel arm $35.48 2 usually ships 1-5 days
41 272-5727 Adjustable arm assembly $96.44 2 usually ships 1-5 days
42 272-5789 Right hand skirt assembly $454.27 1 usually ships 16-41 days
43 272-5795 Front blade $32.79 1 usually ships 1-5 days
44 272-5796 Rear blade $35.48 1 usually ships 1-5 days
45 272-5797 Left hand skirt assembly $502.17 1 usually ships 1-5 days
46 272-5798 Resistor assembly $30.22 1 usually ships 1-5 days
47a 272-5799 45 inch disk deck weldment $3,368.70 1 usually ships 1-5 days
47b 272-5800 48 inch disk deck weldment $827.08 1 usually ships 1-5 days
49 272-9761 36V 200amp contactor $84.67 2 (includes 56-60) usually ships 1-5 days
50 272-9738 Right hand guard assembly $298.66 1 (includes 56-58 and 61) usually ships 1-5 days
51 272-9739 Left hand guard assembly $244.24 1 usually ships 1-5 days
52 172-2071 P clamp $10.90 3 usually ships 16-41 days
53 172-8964 Terminal insulator $12.18 1 usually ships 1-5 days
54a 993-2162 16 inch polypropylene brush $63.86 3 usually ships 1-5 days
54b 172-8479 17 inch polypropylene brush $92.60 3 usually ships 16-41 days
55 272-5745 Elbow barb $10.90 1 usually ships 1-5 days
56 172-9157 Roller wheel $40.72 4 usually ships 16-41 days
57 172-4017 1/2 inch push cap $9.61 4 usually ships 1-5 days
58 272-9741 Pin $10.90 2 usually ships 1-5 days
59 272-9742 Surface grip $19.09 1 usually ships 1-5 days
60 272-9743 Right guard weldment $149.70 1 usually ships 1-5 days
61 272-9740 Left guard weldment $156.25 1 usually ships 1-5 days
