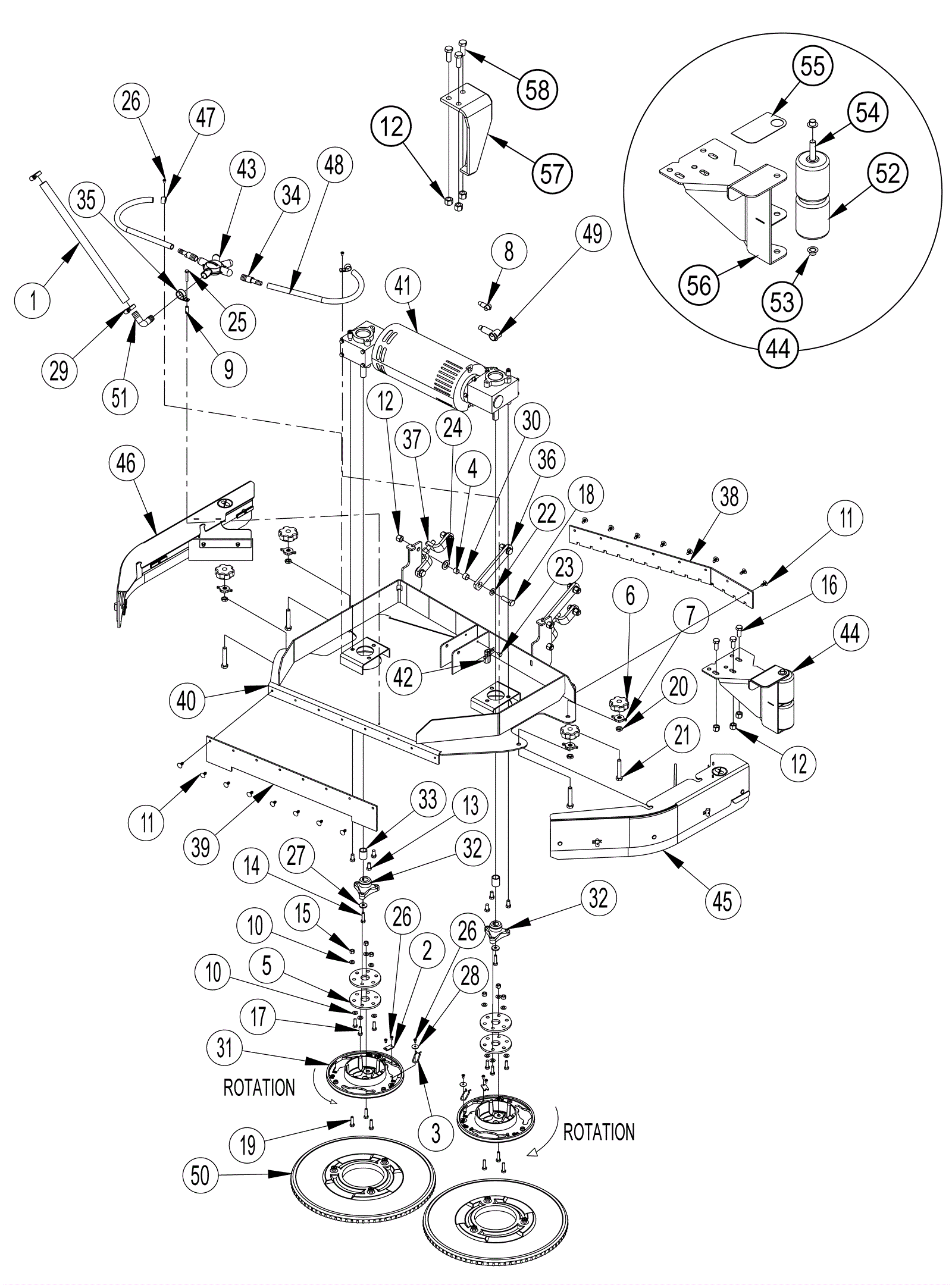

CONDOR 4030 40 Inch Scrub Assembly - Disk

#PartDescriptionPriceReqNotesAvailability
1 172-9344 Hose $36.78 1 usually ships 1-5 days
2 172-0155 Stop plate $11.99 1 usually ships 16-41 days
3 272-5779 Spring retainer $11.99 2 usually ships 16-41 days
4 172-0024 Bushing $13.40 2 usually ships 16-41 days
5 172-2070 Thermoid disk $9.02 8 ships same day
6 172-9281 Knob $11.26 4 usually ships 16-41 days
7 172-9282 Knob $12.83 4 ships same day
8 172-9147 Terminal insulator $13.40 4 ships same day
9 172-0095 Bushing $35.37 1 usually ships 16-41 days
10 999-9004 Washer 5/16 SAE flat stainless steel $1.69 12 ships same day
11 991-5122 1/4 nylon tree push-in rivet $1.55 16 ships same day
12 999-0519 Nut M12-1.75 nylon insert lock stainless steel $2.12 14 ships same day
13 999-0185 Screw 3/8-16 x 3/4 flat head slotted zinc plated $0.99 6 ships same day
14 172-4423 Screw 5/16 -18 x 1 1/4 hex lock stainless steel $11.99 2 usually ships 1-5 days
15 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 6 ships same day
16 272-5770 Screw M12-1.75 x 30mm hex head $9.02 3 usually ships 1-5 days
17 272-5780 Screw M8-1 x 25mm hex head lock SS $10.56 6 ships same day
18 999-1326 Screw M12-1.75 x 40mm hex head $2.59 8 ships same day
19 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 6 ships same day
20 999-1377 Nut M12-1.75 hex jam $0.99 4 ships same day
21 999-1349 Screw M12-1.75 x 70mm full thread hex head stainless steel $5.98 4 ships same day
22 172-0550 Washer 33/64 x 3/4 flat $10.56 8 usually ships 16-41 days
24 272-7427 Washer 3/4 x 1 1/4 x 1/8 flat $10.56 8 usually ships 16-41 days
25 272-5781 Screw 1/4-20 x 1 1/2 hex head $10.56 1 usually ships 1-5 days
26 999-1152 Screw 10-24 x 3/8 pan head phillips thread rolling zinc $0.99 8 ships same day
27 172-3047 Washer 11/32 x 1/8 flat $11.99 2 usually ships 16-41 days
28 999-0588 Washer 7/8 flat stainless steel $11.44 2 ships same day
30 272-8609 Bearing $13.40 8 usually ships 1-5 days
31 172-2089 Drive plate $81.58 2 usually ships 16-41 days
32 172-2088 Drive hub (OBSOLETE) $44.79 2 usually ships 16-41 days
33 272-5782 Spacer $11.99 2 usually ships 1-5 days
34 272-2213 Coupler 1/2 x 3/4 barb $11.99 2 usually ships 1-5 days
35 172-1014 P clamp $11.99 1 usually ships 1-5 days
36 272-5726 Parallel arm $39.03 2 usually ships 1-5 days
37 272-5727 Adjustable arm assembly $106.08 2 usually ships 1-5 days
38 272-5783 Front blade $31.83 1 usually ships 16-41 days
39 272-5784 Rear blade $36.07 1 usually ships 1-5 days
40 272-5785 Disk weldment $835.42 1 usually ships 1-5 days
41 272-5786 Gearbox assembly $3,802.02 1 usually ships 1-5 days
42 272-5787 Resistor assembly $31.83 1 usually ships 1-5 days
43 272-5788 Solution manifold $86.65 1 usually ships 1-5 days
44 272-9738 Right hand guard assembly $328.53 1 (includes 52-56) usually ships 1-5 days
45 272-5789 Right hand skirt assembly $499.70 1 usually ships 16-41 days
46 272-5790 Left hand skirt assembly $559.57 1 usually ships 1-5 days
47 172-2071 P clamp $11.99 2 usually ships 16-41 days
48 172-2072 Clear PVC hose $28.46 2 usually ships 1-5 days
49 172-8964 Terminal insulator $13.40 1 usually ships 1-5 days
50 993-2160 20 inch prolene brush $95.50 2 usually ships 1-5 days
51 272-5745 Elbow barb $11.99 1 usually ships 1-5 days
52 172-9157 Roller wheel $44.79 2 usually ships 16-41 days
53 172-4017 1/2 inch push cap $10.57 2 ships same day
54 272-9741 Pin $11.99 1 usually ships 1-5 days
55 272-9742 Surface grip $21.00 1 usually ships 1-5 days
56 272-9743 Right guard weldment $164.67 1 usually ships 1-5 days
57 272-5763 Roll bar weldment $149.48 1 usually ships 1-5 days
58 272-5777 Screw M12-1.75 x 35mm hex head SS $11.99 3 usually ships 1-5 days
N/S 272-9988 40 inch disk scrub assembly $6,411.36 1 usually ships 1-5 days
N/S 172-1032 B.E. Bearing $65.65 1 (SN 56413336) usually ships 1-5 days
N/S 172-1033 F.E. Bearing $76.52 1 (SN 56413336) usually ships 1-5 days
N/S 172-8999 Brush board assembly $805.83 1 (SN 56413336) usually ships 1-5 days
N/S 172-2818 Carbon brush (pkg of 4) $261.33 1 (SN 56413336) usually ships 16-41 days
N/S 172-2819 Brush spring (pkg of 4) $128.48 1 (SN 56413336) usually ships 1-5 days
N/S 172-8998 Gearbox $2,233.91 1 (SN 56413336) usually ships 1-5 days
