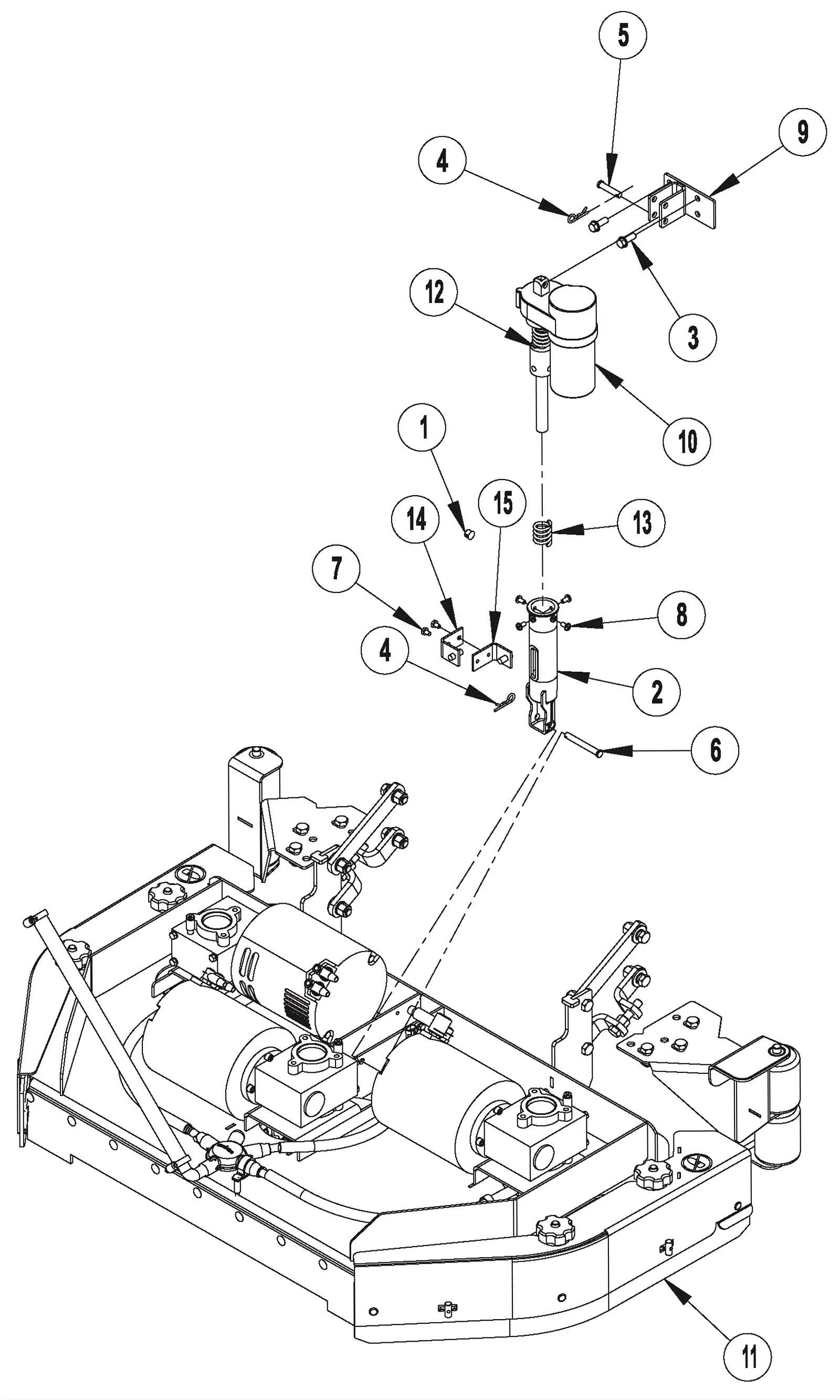

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
181-0095
|
Dome plug |
$10.90
|
1 |
|
usually ships 1-5 days |
2 |
172-8952
|
Spring housing |
$64.29
|
1 |
|
usually ships 16-41 days |
3 |
272-9731
|
Screw 3/8-16 x 1 hex head |
$9.60
|
2 |
|
usually ships 1-5 days |
4 |
272-9987
|
Cotter pin |
$8.30
|
2 |
|
usually ships 1-5 days |
5 |
272-3526
|
Clevis pin |
$10.90
|
1 |
|
usually ships 1-5 days |
6 |
272-3527
|
Clevis pin |
$10.90
|
1 |
|
usually ships 1-5 days |
8 |
999-1129
|
Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc |
$0.99
|
4 |
|
ships same day |
9 |
272-3528
|
Mount weldment |
$59.68
|
1 |
|
usually ships 1-5 days |
10 |
272-3525
|
Deck actuator kit |
$610.39
|
1 |
|
ships same day |
11a |
272-9988
|
40 inch disk scrub assembly |
$5,828.51
|
1 |
(40 inch) |
usually ships 1-5 days |
11b |
272-9989
|
45 inch disk scrub assembly |
$9,216.63
|
1 |
(45 inch) |
usually ships 1-5 days |
11c |
272-9990
|
48 inch disk scrub assembly |
$9,216.63
|
1 |
(48 inch) |
usually ships 1-5 days |
12 |
272-3529
|
Upper spring housing |
$17.68
|
1 |
|
usually ships 16-41 days |
13 |
272-3530
|
Lower spring housing |
$31.51
|
1 |
|
usually ships 16-41 days |
14 |
172-8954
|
Nut retainer |
$46.62
|
1 |
|
usually ships 16-41 days |
15 |
172-8955
|
Nut retainer |
$46.62
|
1 |
|
usually ships 16-41 days |
