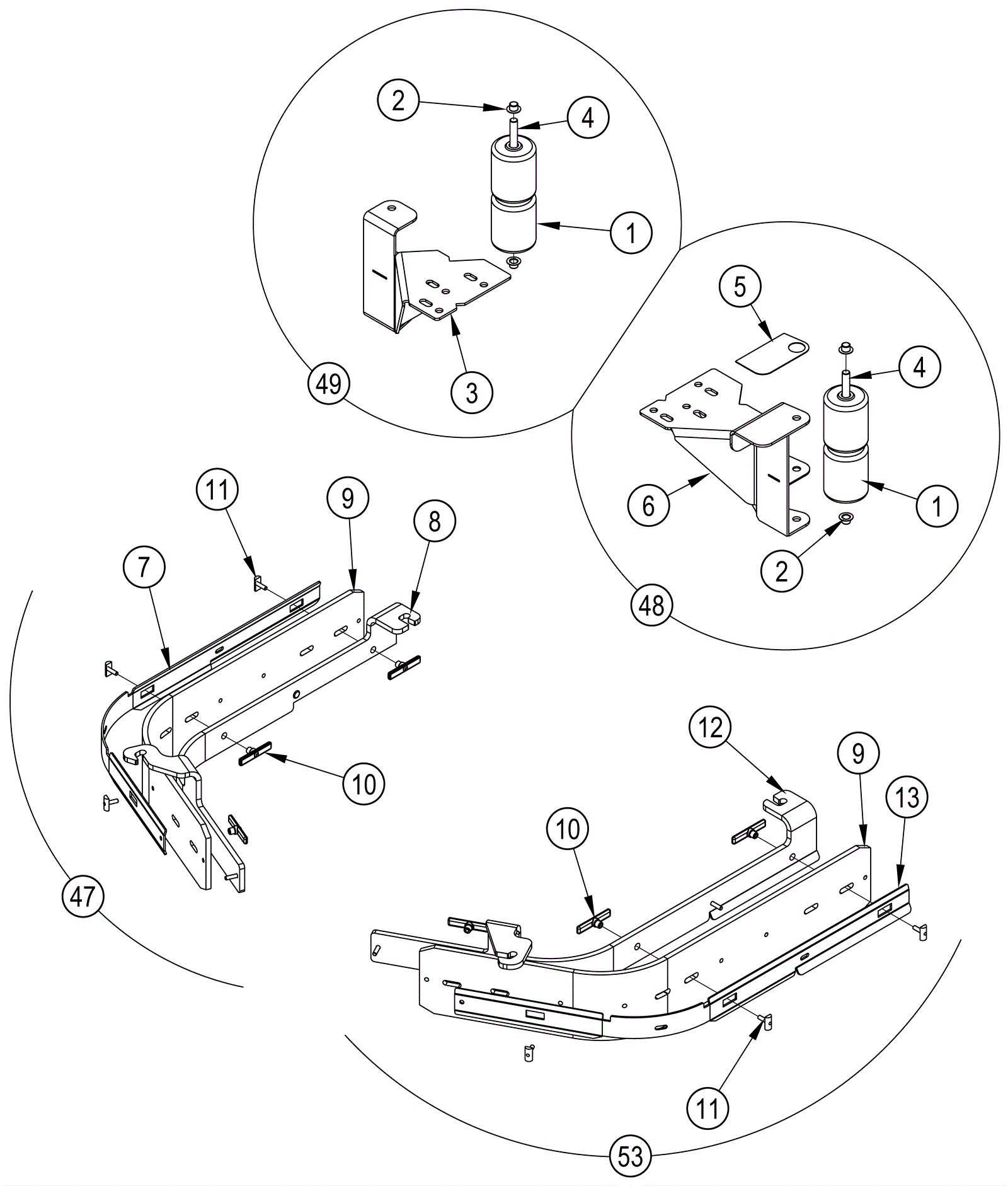

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
172-9157
|
Roller wheel |
4 |
|
|
2 |
172-4017
|
1/2 inch push cap |
4 |
|
|
3 |
272-9740
|
Left guard weldment |
1 |
|
|
4 |
272-9741
|
Pin |
2 |
|
|
5 |
272-9742
|
Surface grip |
1 |
|
|
6 |
272-9743
|
Right guard weldment |
1 |
|
|
7 |
272-9744
|
Left skirt strap |
1 |
|
|
8a |
272-9745
|
40 inch left bracket weldment |
1 |
(40 inch) |
|
8b |
272-9746
|
Left bracket weldment |
1 |
(45 and 48 inch) |
|
9a |
272-3521
|
Skirt blade linatex |
2 |
(standard) |
|
9b |
272-7311
|
Skirt blade gum rubber |
2 |
(optional) |
|
9c |
272-7312
|
Skirt blade polyurethane |
2 |
(optional) |
|
10 |
272-3520
|
Thumb nut |
6 |
|
|
11 |
272-3519
|
Skirt retainer (screw) |
6 |
|
|
12 |
272-9747
|
Right bracket weldment |
1 |
|
|
13 |
272-9748
|
Right skirt strap |
1 |
|
|
47a |
272-7174
|
Left hand skirt assembly |
1 |
(includes 7-8a and 9-11) (40 inch) |
|
47b |
272-9737
|
Left hand skirt assembly |
1 |
(includes 7 and 8b-11) (45 and 48 inch) |
|
48 |
272-9738
|
Right hand guard assembly |
1 |
(includes 1-2 and 4-6) |
|
49 |
272-9739
|
Left hand guard assembly |
1 |
(includes 1-4) (45 and 48 inch) |
|
53 |
272-7175
|
Right hand skirt assembly |
1 |
(includes 9-13) |
|
