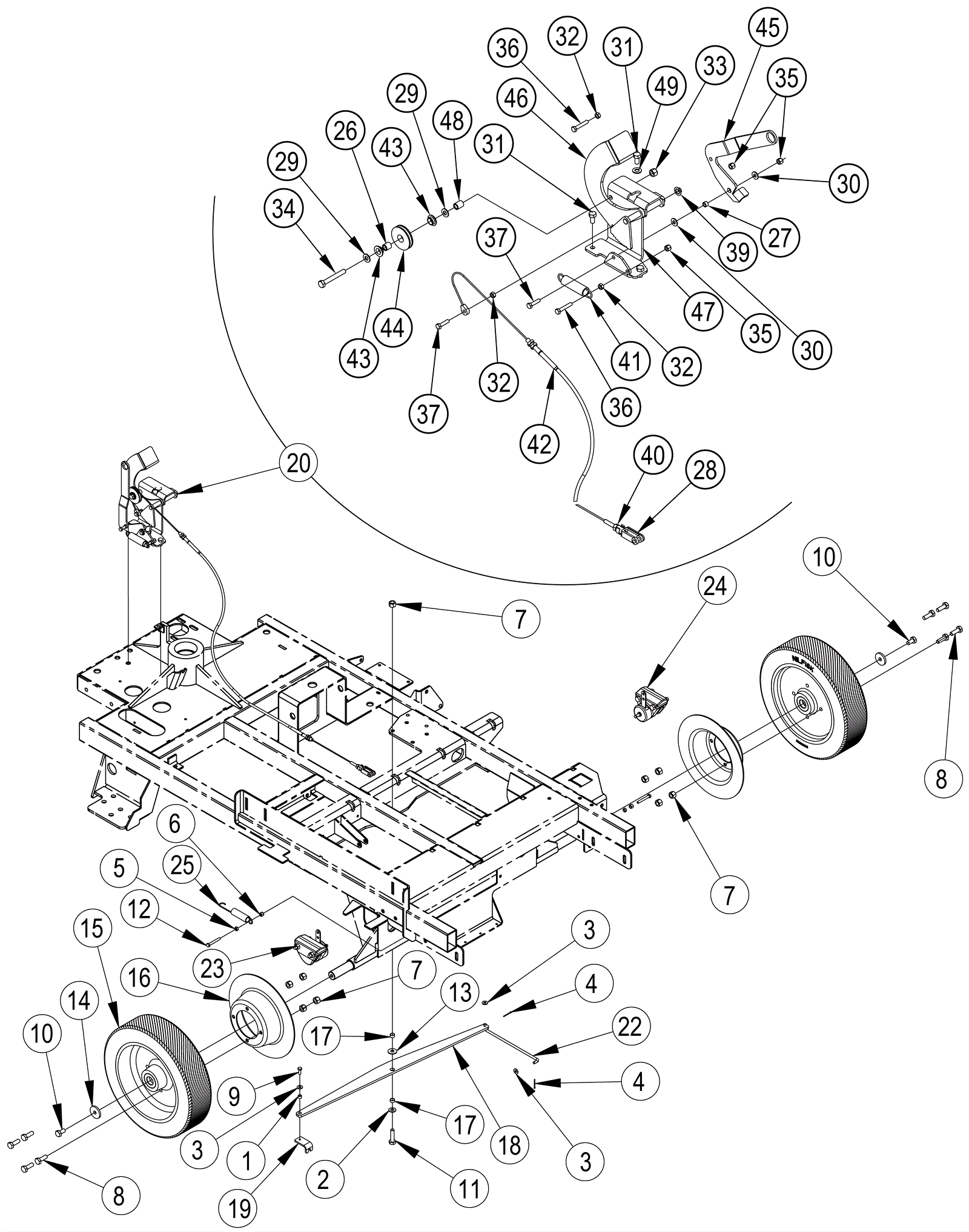

CONDOR 4530 Rear Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 172-0185 Bushing $32.79 1 usually ships 1-5 days
2 999-0120 Washer 3/8 SAE flat $0.99 1 ships same day
3 999-0123 Washer 1/4 SAE flat zinc plated $0.99 3 ships same day
4 172-0781 Cotter pin .06 x .75 $10.90 2 usually ships 1-5 days
5 999-1308 Nut M6-1 hex stainless steel $0.99 2 (not needed for models after SN 1959307) ships same day
6 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 (not needed for models after SN 1959307) ships same day
7 999-1550 Nut M10-1.5 nylon insert lock $0.99 9 usually ships 1-5 days
8 999-9091 Screw M10-1.5 x 30mm hex head stainless steel $4.14 8 ships same day
9 272-1599 Bolt M6 x 15mm hex head nylok $10.90 1 usually ships 1-5 days
10 272-1605 Bolt M10-1.5 x 20mm hex head nylon lock $10.90 2 usually ships 16-41 days
11 272-1624 Bolt M10-1.5 x 40mm hex $10.90 1 usually ships 16-41 days
12 999-0781 Screw M6-1 x 45mm hex head $0.99 2 (not needed for models after SN 1959307) ships same day
13 272-1835 Washer flat $10.90 1 usually ships 16-41 days
14 272-1606 Washer flat $22.69 2 ships same day
15a 272-9774 Rear wheel $562.49 2 ships same day
15b 172-8810 Ball bearing $80.05 6 (use 3 per wheel) usually ships 1-5 days
16 272-9775 Rotor $85.22 2 usually ships 16-41 days
17 272-9776 Bushing .41 x .5 x .28 $10.90 2 usually ships 1-5 days
18 272-9777 Equalizer $57.12 1 usually ships 1-5 days
19 272-9778 Yoke $19.09 1 usually ships 1-5 days
20 272-9779 Brake pedal assembly $664.30 1 (includes 26-49) usually ships 1-5 days
22 272-9780 Brake linkage $16.27 1 usually ships 1-5 days
23 272-9781 Left hand brake $111.56 1 usually ships 1-5 days
24 272-9782 Right hand brake $122.06 1 usually ships 1-5 days
25 272-9783 Extension spring $32.79 2 usually ships 1-5 days
26 272-0468 Bushing $39.46 1 usually ships 1-5 days
27 272-9784 Bushing $13.70 1 usually ships 1-5 days
28 172-9205 Clevis yoke $39.46 1 usually ships 1-5 days
29 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
30 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
31 272-9785 Screw 5/16-18 x 5/8 hex head lock $10.90 3 usually ships 16-41 days
32 999-1308 Nut M6-1 hex stainless steel $0.99 3 ships same day
34 272-1611 Bolt 8mm-1.25 x 60mm hex head $10.90 1 usually ships 1-5 days
35 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 3 ships same day
36 172-4428 Screw M6-1.0 x 35mm hex $9.60 2 usually ships 16-41 days
39 172-4142 Nut 3/8 push cap $9.60 1 usually ships 16-41 days
40 172-4974 Nut 1/4-28 hex machine $10.90 1 usually ships 1-5 days
41 272-9786 Extension spring $24.47 1 usually ships 1-5 days
42 272-9787 Cable assembly $53.10 1 usually ships 1-5 days
43 272-9481 Flanged bearing $13.70 2 usually ships 16-41 days
44 272-9788 Pulley $16.27 1 usually ships 16-41 days
45 272-9789 Pawl $20.37 1 usually ships 1-5 days
46 272-9790 Brake pedal weldment $111.56 1 usually ships 1-5 days
47 272-9791 Brake pedal bracket $43.93 1 usually ships 1-5 days
48 272-9792 Spacer $10.90 1 usually ships 1-5 days
49 172-2067 Washer 11/32 x 1/8 flat $10.90 1 usually ships 16-41 days
