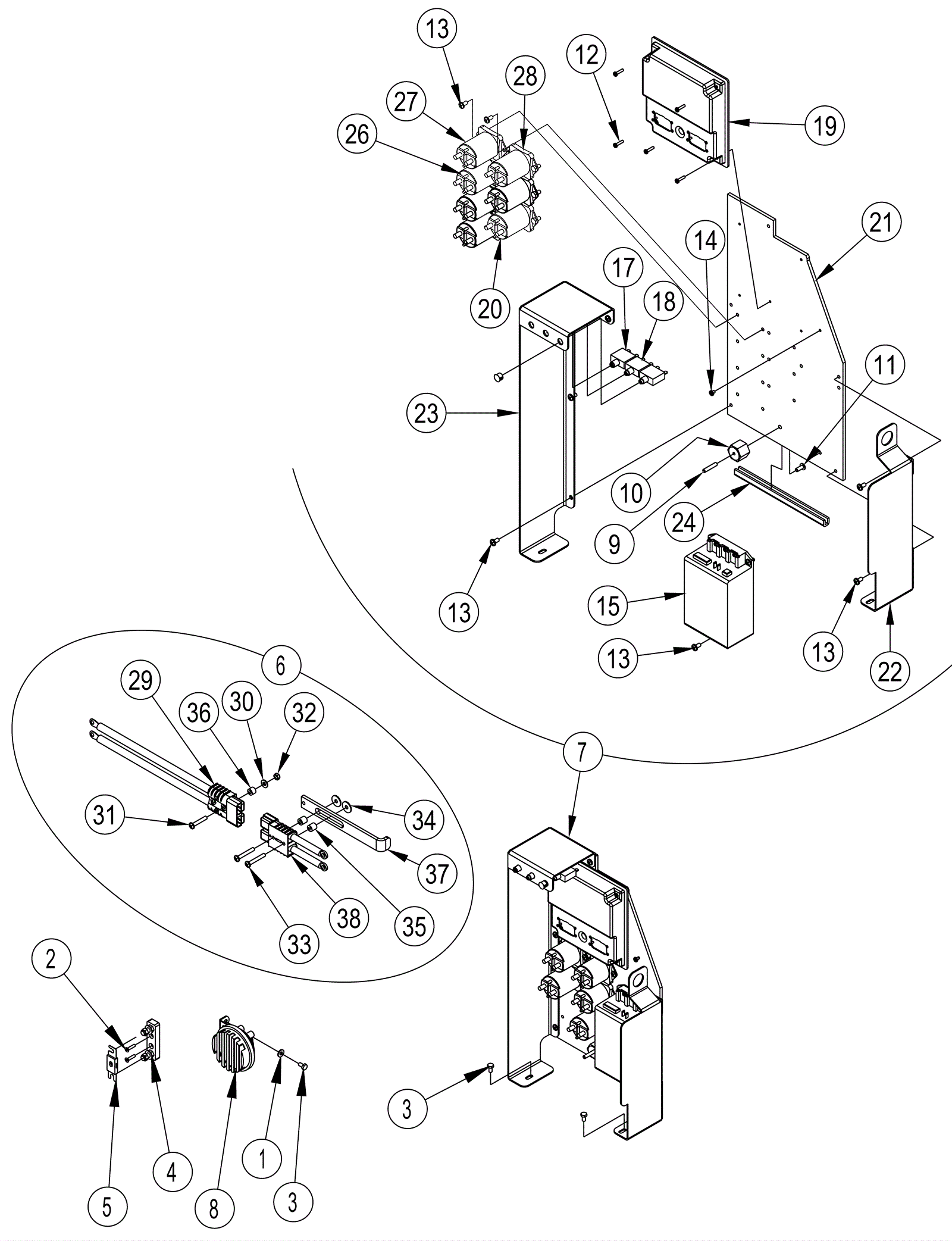

CONDOR 4530 Electrical Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 ships same day
2 272-9749 Screw 10-24 x 7/8 flat phillips head $14.18 2 usually ships 1-5 days
3 272-9677 Screw 1/4-20 x 1/2 hex head $12.89 3 usually ships 13-18 days
4 272-9750 Fuse block $93.17 1 usually ships 1-5 days
5 172-1138 250amp fuse $127.40 1 usually ships 1-5 days
6 272-9751 Battery disconnect $281.00 1 (includes 29-38) usually ships 1-5 days
7a 272-9752 Electrical component assembly $5,367.31 1 (includes 9-28) (before SN 1000038925) usually ships 1-5 days
7b 272-9753 Electrical component assembly $7,796.36 1 (includes 9-28) (after SN 1000038924) usually ships 1-5 days
8 172-9432 36V horn $274.12 1 usually ships 13-18 days
9 172-0346 Stud 1/4-20 $12.89 1 ships same day
10 172-0103 Electrical mount $14.41 1 usually ships 1-5 days
11 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 1 ships same day
12 999-1130 Screw 8-32 x 3/4 pan head phillips thread rolling zinc $0.99 5 ships same day
13 272-9677 Screw 1/4-20 x 1/2 hex head $12.89 18 usually ships 13-18 days
14 999-1152 Screw 10-24 x 3/8 pan head phillips thread rolling zinc $0.99 1 ships same day
15 272-9560 Curtis speed control $2,485.07 1 usually ships 13-18 days
17 272-9754 3amp circuit breaker $16.20 1 usually ships 1-5 days
18 272-9755 15amp circuit breaker $16.20 1 usually ships 13-18 days
19a 472-8227 CONTROLLER RETROFIT KIT $2,885.73 1 (before SN 1000038925) usually ships 13-18 days
19b 272-7261 Main power control board box assembly $1,315.16 1 (after SN 1000038924) usually ships 1-5 days
20 272-9761 36V 200amp contactor $100.16 1 usually ships 1-5 days
21 272-9756 Electrical mount $216.63 1 usually ships 1-5 days
22 272-9757 Electrical panel mount $73.78 1 usually ships 1-5 days
23 272-9758 Electrical mount $59.84 1 usually ships 1-5 days
24 272-9759 Edge trim $12.89 1 usually ships 1-5 days
26 272-9761 36V 200amp contactor $100.16 1 (right brush) usually ships 1-5 days
27 272-9761 36V 200amp contactor $100.16 1 (vacuum) usually ships 1-5 days
28 272-9761 36V 200amp contactor $100.16 1 (auxiliary) usually ships 1-5 days
29 172-9260 Connector Assembly $305.09 1 usually ships 1-5 days
30 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 ships same day
31 999-0523 Screw 1/4-20 x 1 1/2 pan head phillips stainless steel $0.99 1 ships same day
32 999-0190 Nut 1/4-20 hex plain finish $0.99 1 ships same day
33 999-0599 Screw 1/4-20 x 1 3/4 pan head phillips stainless steel $1.21 2 ships same day
34 172-0553 Washer 17/64 x 1/16 flat $11.35 2 usually ships 13-18 days
35 181-0421 Spacer $14.41 2 usually ships 1-5 days
36 181-0176 Phenolic spacer $14.41 1 usually ships 1-5 days
37 272-9762 Disconnect bar $37.27 1 usually ships 1-5 days
38 272-9763 Connector assembly $131.95 1 usually ships 1-5 days
N/S 172-8828 Battery cable $50.45 5 usually ships 13-18 days
N/S 272-9764 Main harness $912.20 1 usually ships 1-5 days
N/S 272-9765 Ferrite bead $30.17 5 usually ships 1-5 days
N/S 272-9766 Ferrite bead $43.51 1 usually ships 1-5 days
N/S 272-9767 Traction motor harness $305.09 1 usually ships 1-5 days
N/S 272-9768 Cable assembly (black) $30.60 1 usually ships 1-5 days
N/S 272-9769 Cable assembly (red) $79.22 1 usually ships 1-5 days
N/S 272-9770 Cable assembly (red) $25.75 1 usually ships 1-5 days
N/S 997-2102 Cable tie $1.38 20 ships same day
N/S 272-9694 Conduit $22.58 1 usually ships 1-5 days
