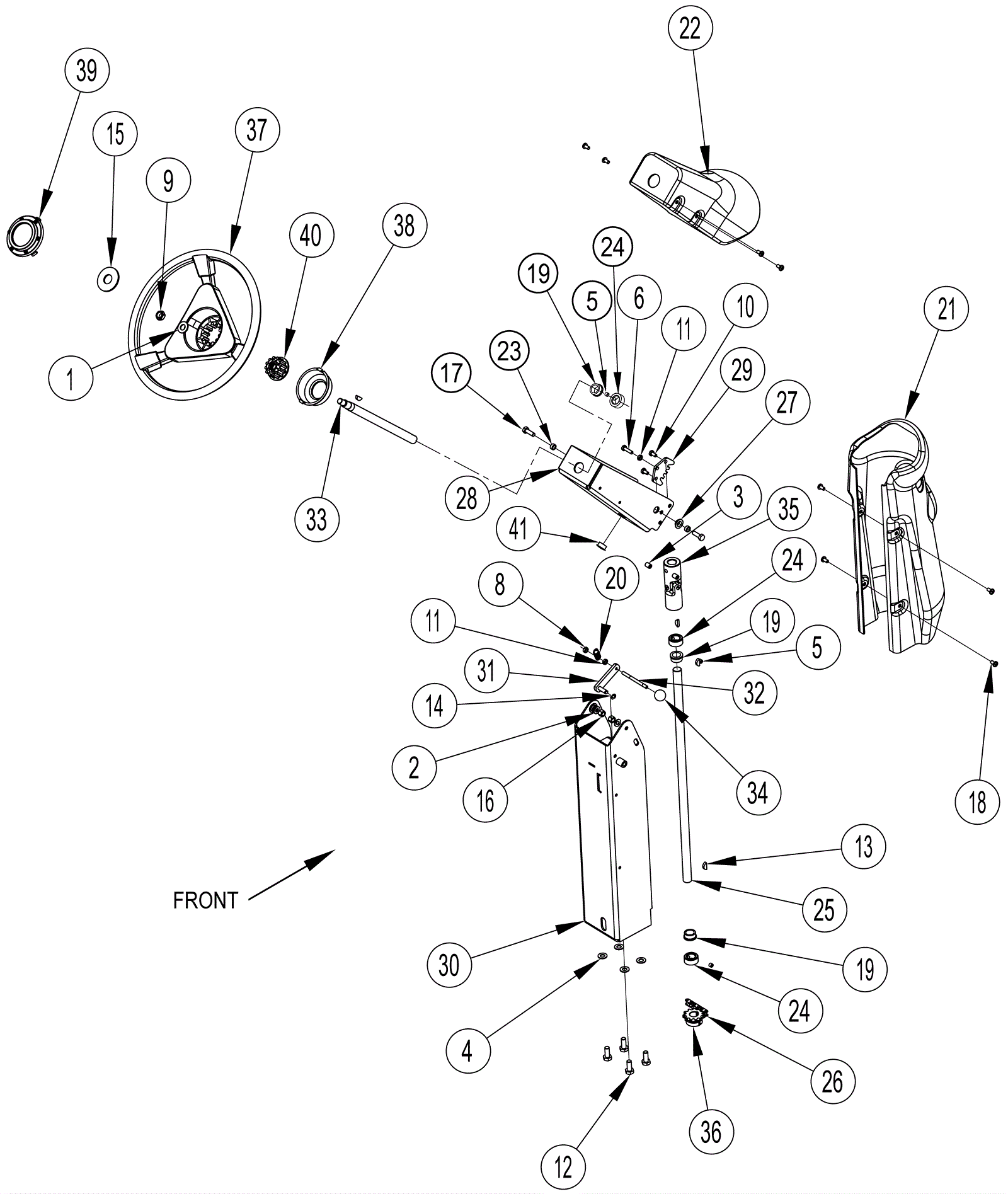

CONDOR 4030 Steering Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0114 Washer 1/2 SAE flat $0.99 1 ships same day
2 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
4 999-0120 Washer 3/8 SAE flat $0.99 4 ships same day
6 999-0830 Screw 1/4-20 x 1 hex head plain finish $0.99 1 ships same day
8 999-0190 Nut 1/4-20 hex plain finish $0.99 1 ships same day
9 999-0262 Nut 1/2-13 nylon insert jam lock zinc plated $0.99 1 ships same day
10a 272-1538 Bolt 1/4-20 X 3/8 hex head lock $11.99 2 (before SN 1926681) usually ships 1-5 days
10b 272-9727 Screw 1/4-20 x 1/2 hex head lock $11.99 2 (after SN 1926680) usually ships 1-5 days
11 999-0971 Nut 1/4-20 jam stainless steel $0.99 2 ships same day
12 272-9728 Screw M10-1 1/2 x 25mm hex head full thread $8.30 4 usually ships 1-5 days
13 172-9387 Woodruff key $11.99 4 usually ships 16-41 days
14 172-0294 Retaining ring $11.99 1 usually ships 16-41 days
15 999-0187 Washer 1/2 flat plain finish $0.99 1 ships same day
17 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 2 ships same day
18 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc $0.99 8 ships same day
19 172-9388 Flanged bearing $13.40 3 usually ships 16-41 days
20 272-9479 Extension spring $13.40 1 usually ships 16-41 days
21 172-3491 Lower column shroud $107.65 1 usually ships 1-5 days
22 172-3492 Upper column shroud $39.47 1 usually ships 1-5 days
23 172-4008 Bushing $32.55 2 ships same day
24 172-0115 Shaft collar $28.46 3 usually ships 16-41 days
25 272-9730 Lower steering shaft $46.92 1 usually ships 16-41 days
26 172-9068 Roller chain $68.62 1 ships same day
27 272-9481 Flanged bearing $15.07 2 usually ships 16-41 days
28 272-9484 Upper column $110.44 1 usually ships 16-41 days
29 272-9480 Steering column ratchet $11.99 1 usually ships 16-41 days
30 472-8232 STEERING UPGRADE KIT $440.37 1 usually ships 16-41 days
31 272-9483 Steering weldment $49.86 1 usually ships 1-5 days
32 272-9482 Rod $11.99 1 usually ships 16-41 days
33 172-9072 Upper steering shaft $124.26 1 usually ships 1-5 days
34 172-2674 Knob $11.99 1 ships same day
35 172-9074 Universal joint $231.75 1 usually ships 1-5 days
36 172-8093 Sprocket $93.14 1 usually ships 16-41 days
37 172-9075 Steering wheel $179.06 1 usually ships 16-41 days
38 172-9076 Cup $19.45 1 usually ships 1-5 days
39 172-9077 Cap $34.66 1 usually ships 1-5 days
40 172-9078 Steering wheel adapter $41.84 1 usually ships 1-5 days
41 172-1803 Plug $11.99 1 usually ships 1-5 days
