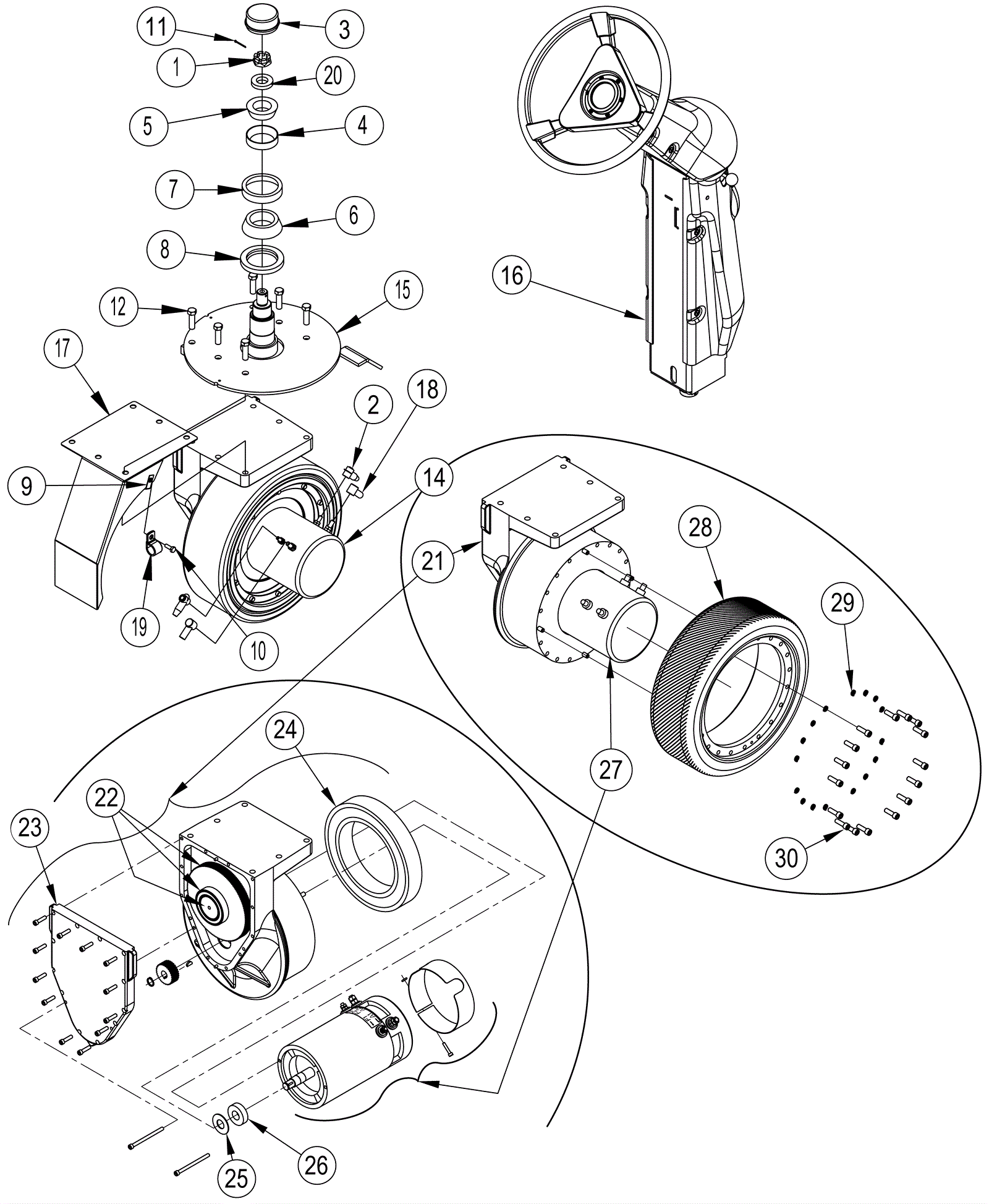

CONDOR 4530 Drive Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-1603 Nut 7/8-14 castle $45.33 1 usually ships 1-5 days
2 172-9147 Terminal insulator $12.18 2 ships same day
3 172-9403 Grease cap $36.77 1 usually ships 1-5 days
4 172-9404 Cup bearing $77.49 1 usually ships 1-5 days
5 172-9405 Cone bearing $69.56 1 usually ships 1-5 days
6 172-9406 Cone bearing $88.61 1 usually ships 1-5 days
7 172-9407 Cup bearing $57.12 1 usually ships 1-5 days
8 172-9408 Radial lip seal $38.04 1 usually ships 1-5 days
9 172-2049 Nut 1/4- 20 $10.90 1 usually ships 1-5 days
10 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel $0.99 1 ships same day
11 172-9386 Cotter pin $9.60 1 usually ships 1-5 days
12 999-1545 Screw 7/16-14 x 1 3/4 hex head stainless steel $3.70 6 usually ships 1-5 days
14 272-9709 Drive wheel assembly $6,611.71 1 (includes 21-30) usually ships 1-5 days
15 272-9714 Front spindle weldment $481.59 1 usually ships 1-5 days
16 272-9715 Steering assembly $868.35 1 usually ships 1-5 days
17 272-9716 Splash guard $93.87 1 usually ships 1-5 days
18 172-2303 Rubber boot $12.18 2 usually ships 1-5 days
19 272-1613 P clamp $9.60 1 usually ships 1-5 days
20 172-9409 Bushing $72.87 1 usually ships 1-5 days
21 272-9710 Drive motor assembly $5,053.72 1 (includes 22-26) usually ships 1-5 days
22 272-9717 Gear driven kit $654.10 1 (includes: (2) bearings, (1) woodruff key, (1) drive gear and (1) gear shaft) usually ships 1-5 days
23 272-9718 Gear cover $298.66 1 usually ships 1-5 days
24 272-9711 Wheel bearing $962.84 1 usually ships 16-41 days
25 272-9712 Washer wave $31.51 1 usually ships 16-41 days
26 272-9713 Motor bearing $46.62 1 usually ships 1-5 days
27a 272-9719 Traction motor $1,401.17 1 usually ships 1-5 days
27b 272-9720 Carbon brush set $231.05 1 usually ships 1-5 days
27c 272-9721 Brush motor spring $8.20 4 usually ships 16-41 days
27d 272-9722 Brush motor box assembly $107.71 1 usually ships 1-5 days
28 272-9723 Poly front wheel $1,179.53 1 usually ships 16-41 days
29 272-9724 Washer 5/16 high collar lock $10.90 16 usually ships 1-5 days
30 172-8162 Screw 5/16- .24 x 1.00 $10.90 16 usually ships 1-5 days
