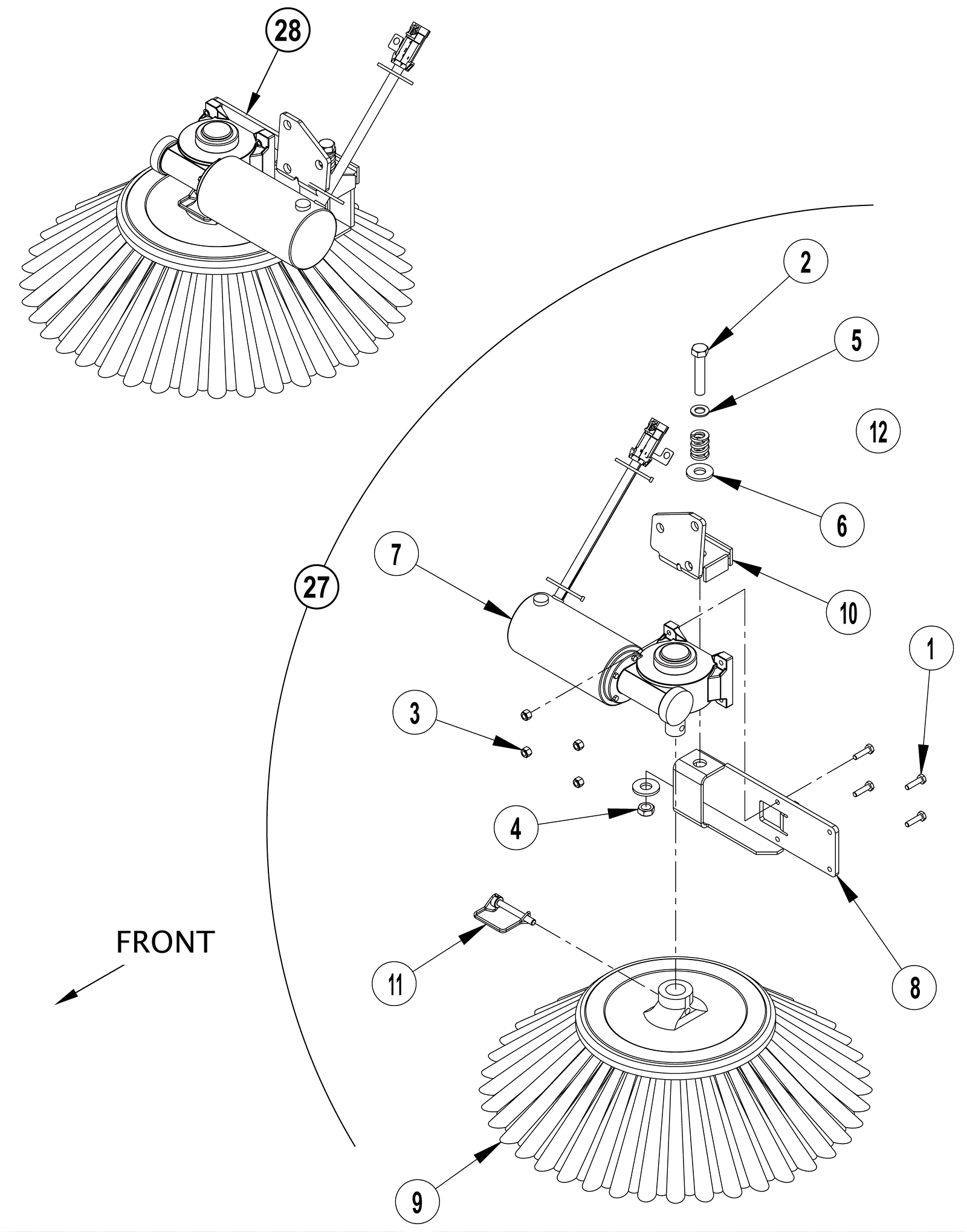

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0830
|
Screw 1/4-20 x 1 hex head plain finish |
4 |
|
|
2 |
999-1573
|
Screw 1/2-13 x 2 1/2 hex head stainless steel |
1 |
|
|
3 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
4 |
|
|
4 |
999-0262
|
Nut 1/2-13 nylon insert jam lock zinc plated |
1 |
|
|
5 |
172-0550
|
Washer 33/64 x 3/4 flat |
1 |
|
|
6 |
172-4569
|
Washer 19/32 x 1 3/8 x 1/8 flat hardened |
2 |
|
|
7a |
272-5881
|
36V gearmotor assembly |
1 |
|
|
7b |
272-5882
|
36V gearmotor assembly |
1 |
|
|
7c |
372-3748
|
Brush motor kit |
1 |
|
|
8a |
272-5883
|
Left hand sidebroom bracket weldment |
1 |
|
|
8b |
372-4018
|
Right hand broom bracket weldment |
1 |
|
|
8c |
272-5884
|
Right hand sidebroom bracket weldment |
1 |
|
|
9 |
272-5885
|
Sidebroom |
1 |
(option) |
|
10a |
272-5883
|
Left hand sidebroom bracket weldment |
1 |
|
|
10b |
372-4019
|
Right hand side broom weldment |
1 |
|
|
11 |
272-5888
|
Pin with retainer |
1 |
|
|
12 |
272-5879
|
Die spring |
1 |
|
|
27 |
272-5870
|
Left side broom assembly |
1 |
(includes 1-7a,8a,9a, 10a, 11 and 12) |
|
28 |
272-5871
|
Right side broom assembly |
1 |
(includes 1-7b,8c,9a, 10c, 11 and 12) |
|
