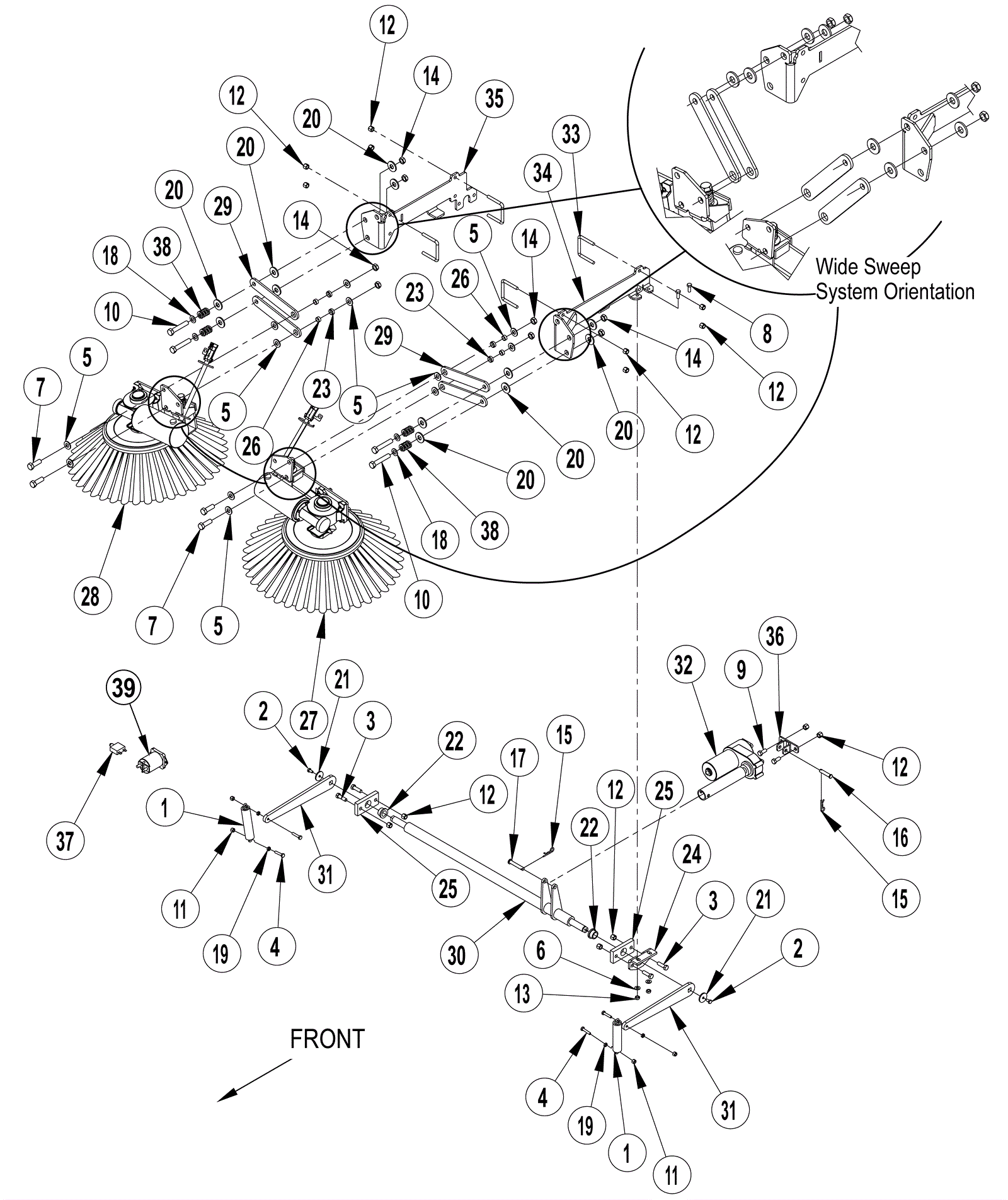

Sweep System Assembly

#PartDescription ReqNotesAvailability
1 172-9385 Chain assembly 2
2 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 2
3 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel 4
4 999-0298 Bolt 1/4-20 x 1 1/4 hex head stainless steel 4
5 999-0114 Washer 1/2 SAE flat 12
6 999-0024 Washer 5/16 flat stainless steel 2
7 999-0558 Bolt 1/2-13 x 1 1/2 hex head stainless steel 4
8 181-0983 Screw 5/16-18 x 7/8 hex head 2
9 999-0812 Screw 3/8-16 x 7/8 hex head grade 5 plain finish 2
10 172-5134 Screw 1/2-13 x 2 3/4 hex 4
11 999-0188 Nut 3/8-16 nylon insert lock zinc plated 4
12 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 14
13 999-0262 Nut 1/2-13 nylon insert jam lock zinc plated 2
14 997-2518 Hitch pin 8
15 997-2518 Hitch pin 2
16 272-3526 Clevis pin 1
17 172-3484 Clevis pin 1
18 172-0550 Washer 33/64 x 3/4 flat 4
19 999-0971 Nut 1/4-20 jam stainless steel 4
20 172-4569 Washer 19/32 x 1 3/8 x 1/8 flat hardened 12
21 172-3610 Washer flat brass 2
22 272-5867 Flange bearing 2
23 272-3828 Sleeve bearing 4
24 272-5868 Side broom lift bracket 1
25 272-5869 Pillow block 2
26 172-0139 Bushing 4
27 272-5870 Left side broom assembly 1
28 272-5871 Right side broom assembly 1
29 272-5880 Link 4
30 272-5872 Sidebroom lift arm weldment 1
31 372-4017 Lift arm 2
32 272-5874 36V actuator motor 1
33 272-5875 Wide clamp 4
34 272-5876 Left hand sidebroom bracket weldment 1
35 272-5877 Right hand sidebroom bracket weldment 1
36 272-5878 Actuator mount 1
37 272-7727 20amp circuit breaker 1
38 272-5879 Die spring 4
39 272-9761 36V 200amp contactor 1
