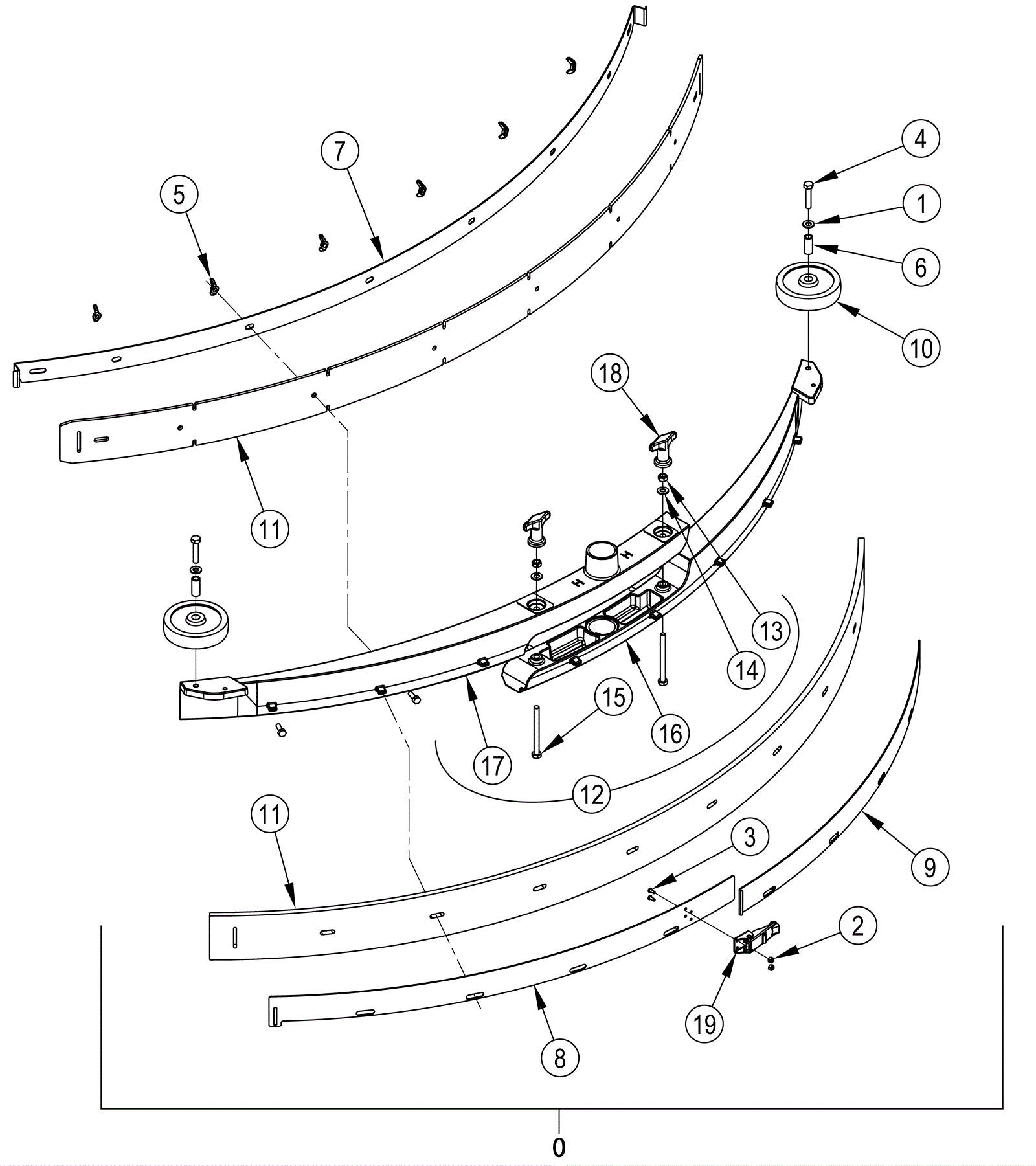

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
2 |
999-0227
|
Nut 6-32 hex nylon insert lock jam zinc plated |
2 |
|
|
3 |
999-0336
|
Screw 6-32 x 3/8 pan head phillips stainless steel |
2 |
|
|
4 |
272-5857
|
Screw M8-1.25 x 40mm hex head SS |
2 |
|
|
5 |
999-0603
|
Nut 1/4-20 wing stainless steel |
6 |
|
|
6 |
181-0715
|
Bushing |
2 |
|
|
7 |
272-4005
|
Front H strap |
1 |
|
|
8 |
272-3998
|
Rear H strap |
1 |
|
|
9 |
272-4006
|
Rear H strap |
1 |
|
|
10 |
172-2085
|
Wheel |
2 |
|
|
11a |
572-9316
|
Squeegee blade kit 48 inch linatex (red) |
1 |
(standard) (All squeegee blade kits include both front and rear squeegee blades) |
|
11b |
272-5860
|
48 inch gum rubber squeegee blade |
1 |
(optional) ( All squeegee blade kits include both front and rear squeegee blades) |
|
11c |
272-5862
|
48 inch polyurethane squeegee blade kit |
1 |
(optional) (All squeegee blade kits include both front and rear squeegee blades) |
|
12 |
272-5866
|
48 inch squeegee weldment assembly |
1 |
(includes 13-17) |
|
13 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
|
14 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
15 |
172-4435
|
Hex 5/16-18 x 3.50 thd to hd |
2 |
|
|
16 |
N/A
|
Not available |
1 |
(squeegee cast bottom) |
|
17 |
N/A
|
Not available |
1 |
(squeegee cast top) |
|
18 |
172-4099
|
Nut 5/16-18 thumb |
2 |
|
|
19 |
172-0094
|
Latch |
1 |
|
|
