| # | Part | Description |
Req | Notes | Availability |
|---|
0 |

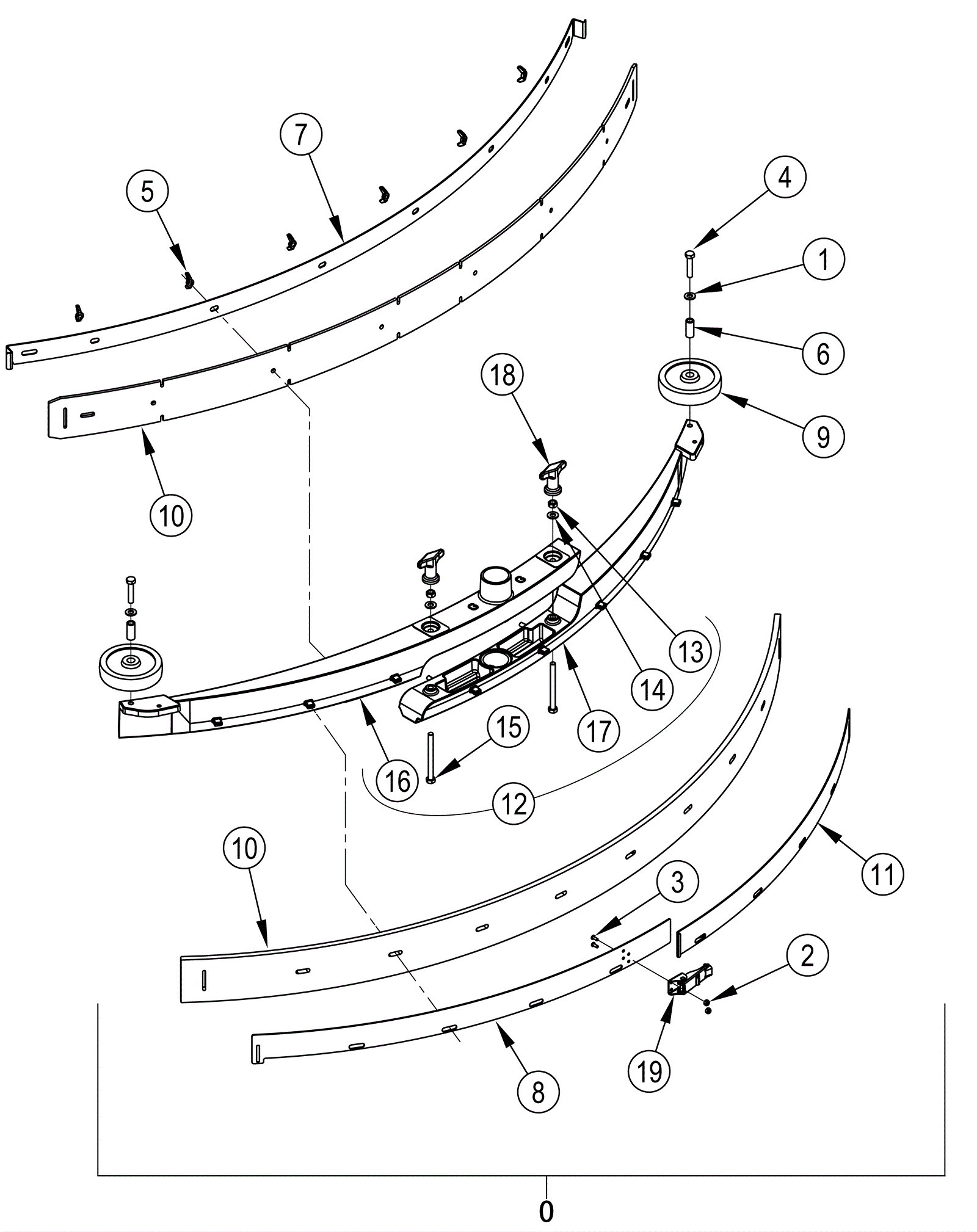

472-8772
|
SQUEEGEE ASSEMBLY-G |
1 |
(includes 1-10a,11-19) |
|
1 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
2 |
999-0227
|
Nut 6-32 hex nylon insert lock jam zinc plated |
2 |
|
|
3 |
999-0336
|
Screw 6-32 x 3/8 pan head phillips stainless steel |
2 |
|
|
4 |
272-5857
|
Screw M8-1.25 x 40mm hex head SS |
2 |
|
|
5 |
999-0603
|
Nut 1/4-20 wing stainless steel |
6 |
|
|
6 |
181-0715
|
Bushing |
2 |
|
|
7 |
472-4397
|
STRAP FRONT G |
1 |
|
|
8 |
272-5863
|
Left hand rear strap |
1 |
|
|
9 |
172-2085
|
Wheel |
2 |
|
|
10a |
272-5858
|
45 inch linatex squeegee blade kit |
1 |
(standard) (All squeegee blade kits include both front and rear squeegee blades) |
|
10b |
272-5859
|
45 inch gum rubber squeegee blade kit |
1 |
(optional) (All squeegee blade kits include both front and rear squeegee blades) |
|
10c |
272-5861
|
45 inch polyurethane squeegee blade kit |
1 |
(optional) (All squeegee blade kits include both front and rear squeegee blades) |
|
11 |
272-5864
|
Right hand rear strap |
1 |
|
|
12 |
272-5865
|
45 inch squeegee weldment assembly |
1 |
(includes 13-17) |
|
13 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
|
14 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
15 |
172-4435
|
Hex 5/16-18 x 3.50 thd to hd |
2 |
|
|
16 |
472-8673
|
SQUEEGEE CAST G TOP |
1 |
|
|
17 |
472-8677
|
SQUEEGEE CAST G BOTTOM |
1 |
|
|
18 |
172-4099
|
Nut 5/16-18 thumb |
2 |
|
|
19 |
172-0094
|
Latch |
1 |
|
|
