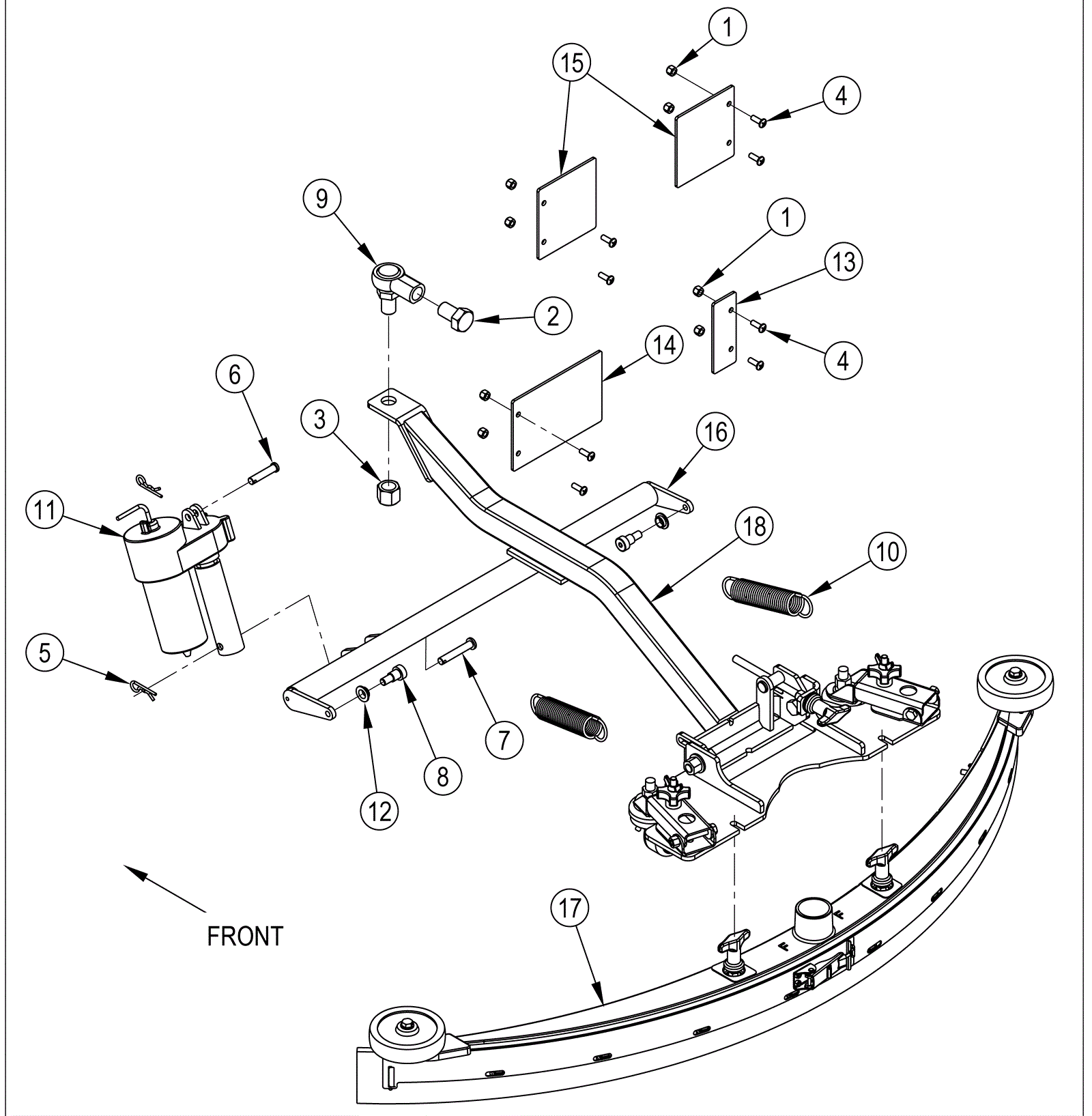

Squeegee Assembly

#PartDescription ReqNotesAvailability
1 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 4
2 272-1463 Bolt 3/4-16 x 1 1/4 hex head 1
3 272-1464 Nut 3/4-16 hex nylon lock 1
4 999-0456 Screw 1/4-20 x 3/4 pan head phillips stainless steel 4
5 997-2518 Hitch pin 2
6 272-3526 Clevis pin 1
7 172-3484 Clevis pin 1
8 272-5839 Screw 1/2 x 1/2 x 3/8-16 socket shoulder 2
9 172-8065 Ball joint 1
10 172-9090 Extension spring 2
11 272-7198 36V actuator 1
12 272-9481 Flanged bearing 2
13 272-5845 Small stop plate 1 (40 inch)
14 272-5846 Large stop plate 1 (40 inch)
15 272-5847 Medium stop plate 2 (45 and 48 inch)
16 272-5844 Squeegee lift arm weldment 1
17 472-8773 SQUEEGEE ASSEMBLY-F 1 (40 inch)
17b 472-8772 SQUEEGEE ASSEMBLY-G 1 (45 inch)
17c 472-8764 SQUEEGEE ASSY-H 1 (48 inch)
18 272-5843 Squeegee arm assembly 1
