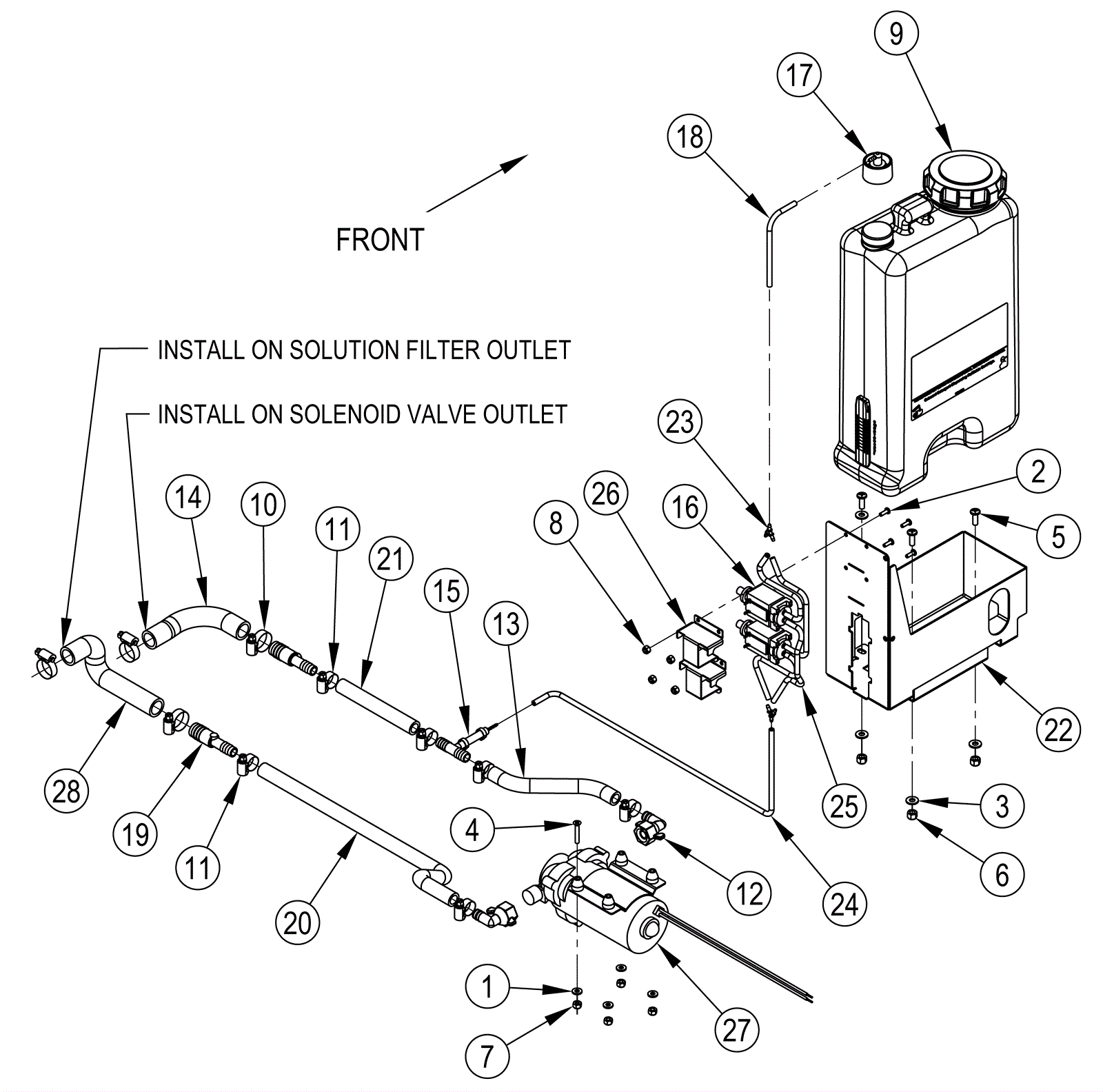

SC6500 Detergent Metering Kit Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1862 Washer #10 flat SAE stainless steel $0.99 4 ships same day
2 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel $0.99 4 ships same day
3 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 ships same day
4 172-5109 Screw 10-24 x 1 1/4 flat phillips head $11.99 4 usually ships 1-5 days
5 999-0456 Screw 1/4-20 x 3/4 pan head phillips stainless steel $1.76 3 ships same day
6 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 3 ships same day
7 999-0199 Nut 10-24 nylon insert lock zinc plated $0.99 4 ships same day
8 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel $0.99 4 ships same day
9 272-7683 Chemical bottle assembly $308.33 1 usually ships 1-5 days
10 997-2004 Hose clamp $2.15 4 ships same day
11 172-8494 #6 hose clamp SAE $10.56 6 usually ships 1-5 days
12 172-9635 Elbow barb $11.99 2 usually ships 1-5 days
13 172-2327 Wire reinforced clear hose (OBSOLETE) $12.52 1 usually ships 16-41 days
14 272-5711 Spiral hose $12.83 1 usually ships 1-5 days
15 272-8135 Tee assembly $11.99 1 usually ships 1-5 days
16 272-5403 Detergent pump $261.33 2 usually ships 16-41 days
17 272-2182 Dry break cap $33.24 1 ships same day
18 272-2183 7 inch chemical resistant hose $10.56 1 ships same day
19 272-2213 Coupler 1/2 x 3/4 barb $11.99 2 usually ships 1-5 days
20 172-9036 Solution hose $30.28 1 usually ships 1-5 days
21 172-9035 Solution hose $11.26 1 usually ships 1-5 days
22 272-5713 Chemical meter plate mount $186.96 1 usually ships 1-5 days
23 272-7689 1/8 inch y barb fitting $11.99 2 usually ships 16-41 days
24 272-9831 Hose $16.50 1 usually ships 1-5 days
25 272-5714 Chemical resistant hose $11.99 4 usually ships 1-5 days
26 272-5715 Pump bracket mount $43.41 2 usually ships 1-5 days
27 272-5716 Solution control pump $626.77 1 usually ships 16-41 days
28 272-5717 Spiral hose $32.55 1 usually ships 1-5 days
N/S 372-2096 Cable tie $11.99 2 usually ships 16-41 days
