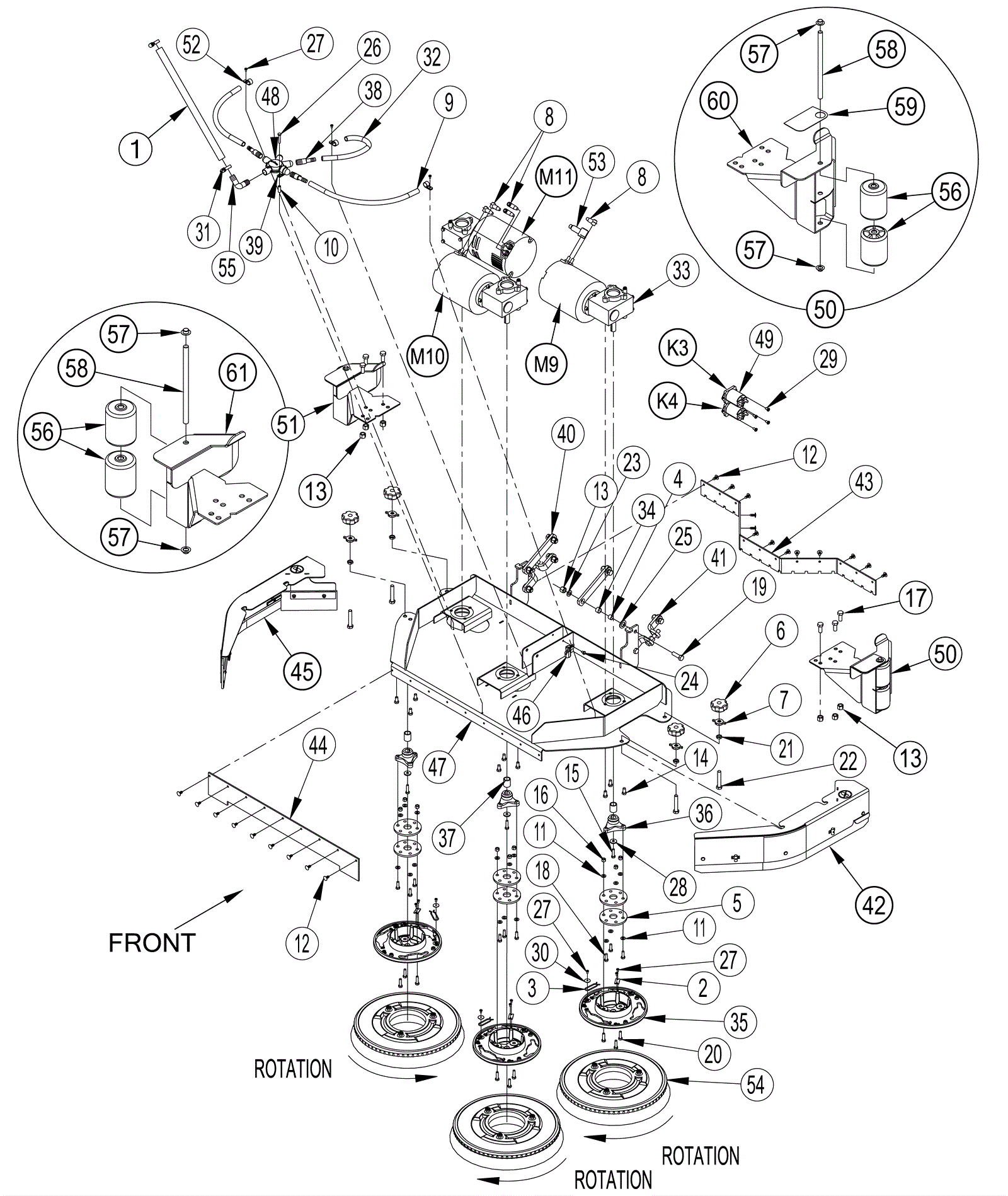

Scrub Assembly - 45 and 48 inch

#PartDescription ReqNotesAvailability
1 172-9344 Hose 1
2 172-0155 Stop plate 3
3 272-5779 Spring retainer 3
4 172-0024 Bushing 8
5 172-2070 Thermoid disk 6
6 572-9330 Knob 4
7 172-9282 Knob 4
8 172-9147 Terminal insulator 5
9 172-2072 Clear PVC hose 2
10 172-0095 Bushing 1
11 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 18
12 991-5122 1/4 nylon tree push-in rivet 22
13 999-1122 Nut M12-1.75 hex nylon insert lock stainless steel 14
14 999-0185 Screw 3/8-16 x 3/4 flat head slotted zinc plated 9
15 172-4423 Screw 5/16 -18 x 1 1/4 hex lock stainless steel 3
16 999-0496 Nut M8-1.25 nylon insert lock stainless steel 9
17 272-5770 Screw M12-1.75 x 30mm hex head 6
18 272-5780 Screw M8-1 x 25mm hex head lock SS 9
19 999-1326 Screw M12-1.75 x 40mm hex head 8
20 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 9
21 999-1377 Nut M12-1.75 hex jam 4
22 999-1349 Screw M12-1.75 x 70mm full thread hex head stainless steel 4
23 172-0550 Washer 33/64 x 3/4 flat 8
24 999-0360 Screw 1/4-20 x 3/8 hex head thread rolling unslotted 1
25 272-7427 Washer 3/4 x 1 1/4 x 1/8 flat 8
26 272-5781 Screw 1/4-20 x 1 1/2 hex head 1
27 999-1152 Screw 10-24 x 3/8 pan head phillips thread rolling zinc 12
28 172-3047 Washer 11/32 x 1/8 flat 3
29 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc 4
30 999-0588 Washer 7/8 flat stainless steel 3
31 997-2004 Hose clamp 5
32 272-5791 Hose 1
33a 272-5792 Gearmotor assembly 3 (includes 33b and 33c)
33b 272-5793 Brush spring 4
33c 272-5794 Carbon brush assembly 4
33d N/A Not available 1 (36V scrub motor)
33e 272-6008 Gearbox 1
33f 999-0005 Screw 5/16-18 x 7/8 socket head 3
34 272-8609 Bearing 8
35 172-2089 Drive plate 3
36 172-2088 Drive hub (OBSOLETE) 3
37 272-5782 Spacer 3
38 272-2213 Coupler 1/2 x 3/4 barb 3
39 172-1014 P clamp 1
40 272-5726 Parallel arm 2
41 272-5727 Adjustable arm assembly 2
42 272-5789 Right hand skirt assembly 1
43 272-5795 Front blade 1
44 272-5796 Rear blade 1
45 272-5797 Left hand skirt assembly 1
46 272-5798 Resistor assembly 1
47a 272-5799 45 inch disk deck weldment 1
47b 272-5800 48 inch disk deck weldment 1
48 272-5788 Solution manifold 1
49 272-9761 36V 200amp contactor 2
50 472-8768 RIGHT GUARD ASSY 1 (includes 56-60)
51 472-8769 LEFT GUARD ASSY 1 (includes 56-58 and 61)
52 181-0269 P clamp 3
53 172-8964 Terminal insulator 1
54 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages 3
55 272-5745 Elbow barb 1
56 172-9157 Roller wheel 2
57 172-4017 1/2 inch push cap 2
58 272-9741 Pin 1
59 272-9742 Surface grip 1
60 472-8766 RIGHT GUARD WELDT 1
61 472-8767 LEFT GUARD WELDT 1
