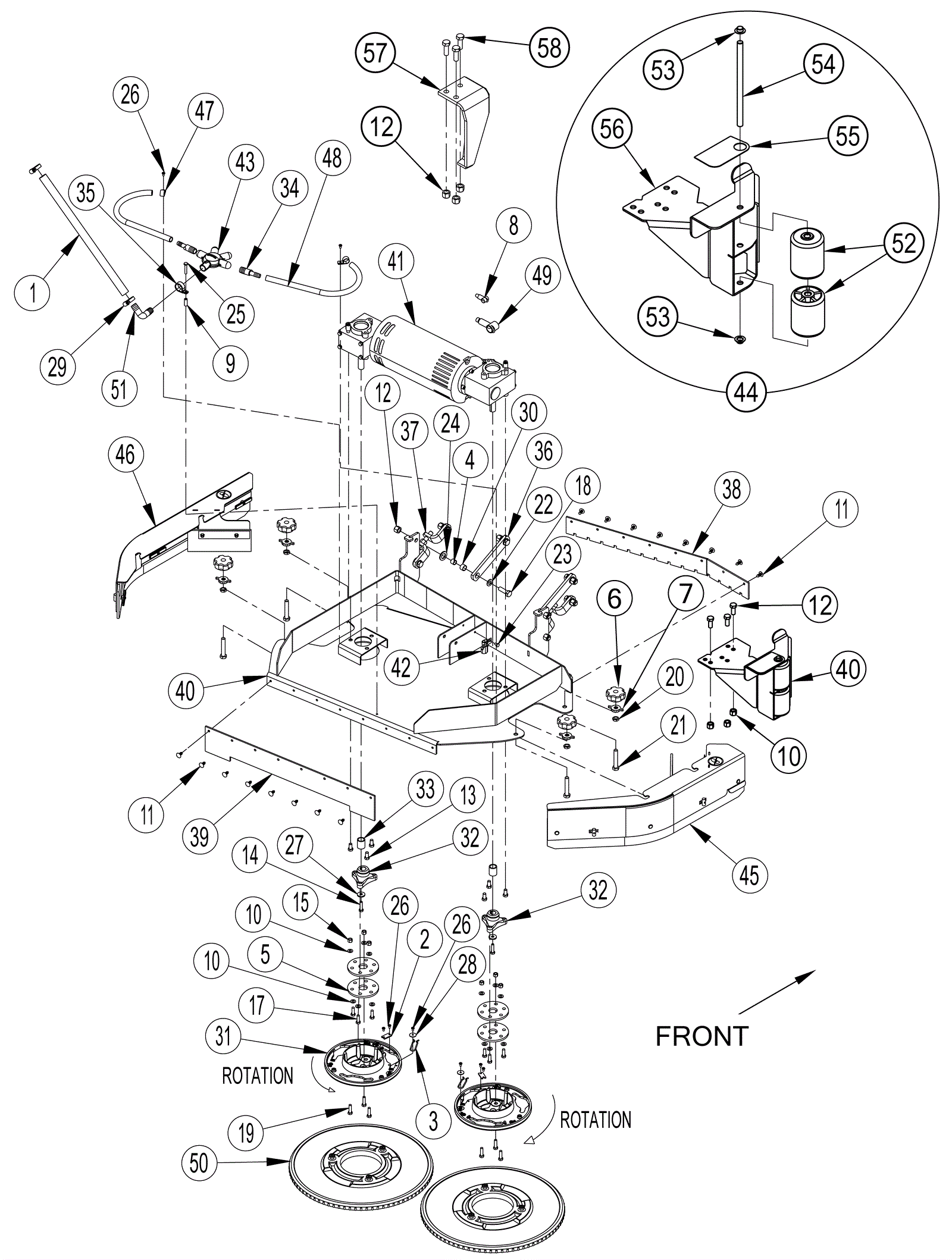

Scrub Assembly - 40 inch

#PartDescription ReqNotesAvailability
1 172-9344 Hose 1
2 172-0155 Stop plate 2
3 272-5779 Spring retainer 2
4 172-0024 Bushing 8
5 172-2070 Thermoid disk 4
6 572-9330 Knob 4
7 172-9282 Knob 4
8 172-9147 Terminal insulator 1
9 172-0095 Bushing 1
10 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 12
11 991-5122 1/4 nylon tree push-in rivet 16
12 999-0185 Screw 3/8-16 x 3/4 flat head slotted zinc plated 14
13 999-0185 Screw 3/8-16 x 3/4 flat head slotted zinc plated 6
14 172-4423 Screw 5/16 -18 x 1 1/4 hex lock stainless steel 2
15 999-0496 Nut M8-1.25 nylon insert lock stainless steel 6
16 272-5770 Screw M12-1.75 x 30mm hex head 3
17 272-5780 Screw M8-1 x 25mm hex head lock SS 6
18 999-1326 Screw M12-1.75 x 40mm hex head 8
19 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 6
20 999-1377 Nut M12-1.75 hex jam 4
21 999-1349 Screw M12-1.75 x 70mm full thread hex head stainless steel 4
22 172-0550 Washer 33/64 x 3/4 flat 8
23 999-0360 Screw 1/4-20 x 3/8 hex head thread rolling unslotted 1
24 272-7427 Washer 3/4 x 1 1/4 x 1/8 flat 8
25 272-5781 Screw 1/4-20 x 1 1/2 hex head 1
26 999-1152 Screw 10-24 x 3/8 pan head phillips thread rolling zinc 8
27 172-3047 Washer 11/32 x 1/8 flat 2
28 999-0588 Washer 7/8 flat stainless steel 2
29 997-2004 Hose clamp 2
30 272-8609 Bearing 8
31 172-2089 Drive plate 2
32 172-2088 Drive hub (OBSOLETE) 2
33 272-5782 Spacer 2
34 272-2213 Coupler 1/2 x 3/4 barb 2
35 172-1014 P clamp 1
36 272-5726 Parallel arm 2
37 272-5727 Adjustable arm assembly 2
38 272-5783 Front blade 1
39 272-5784 Rear blade 1
40 272-5785 Disk weldment 1
41a 272-5786 Gearbox assembly 1 (includes 41b- 41g)
41b 172-1032 B.E. Bearing 1
41c 172-1033 F.E. Bearing 1
41d 172-8999 Brush board assembly 1
41e 172-2818 Carbon brush (pkg of 4) 1
41f 172-2819 Brush spring (pkg of 4) 1
41g 172-8998 Gearbox 1
42 272-5787 Resistor assembly 1
43 272-5788 Solution manifold 1
44 472-8768 RIGHT GUARD ASSY 1 (includes 52-56)
45 272-5789 Right hand skirt assembly 1
46 272-5790 Left hand skirt assembly 1
47 172-2071 P clamp 2
48 172-2072 Clear PVC hose 2
49 172-8964 Terminal insulator 1
50 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages 2
51 272-5745 Elbow barb 1
52 172-9157 Roller wheel 2
53 172-4017 1/2 inch push cap 2
54 272-9741 Pin 1
55 272-9742 Surface grip 1
56 472-8766 RIGHT GUARD WELDT 1
