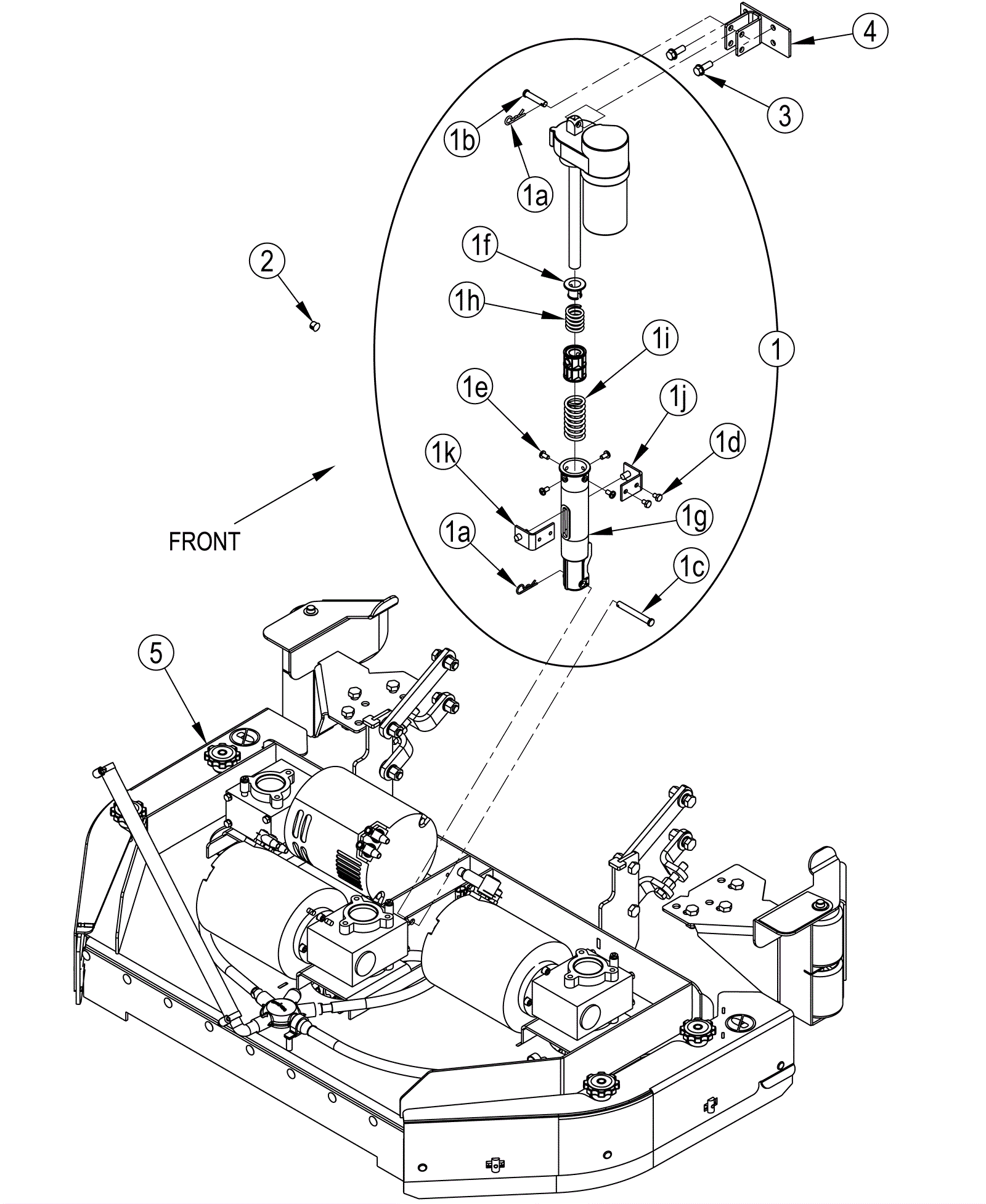

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
272-3525
|
Deck actuator kit |
1 |
|
|
1a |
997-2511
|
Cotter pin |
2 |
(old style cotter pin before 01/2014, after 01/2014 new style cotter pin 272-6007) |
|
1b |
272-3526
|
Clevis pin |
1 |
|
|
1c |
272-3527
|
Clevis pin |
1 |
|
|
1d |
999-0360
|
Screw 1/4-20 x 3/8 hex head thread rolling unslotted |
2 |
|
|
1e |
999-1129
|
Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc |
4 |
|
|
1f |
472-7972
|
CAP-ACTUATOR SPRING |
1 |
|
|
1g |
172-8952
|
Spring housing |
1 |
|
|
1h |
272-3529
|
Upper spring housing |
1 |
|
|
1i |
272-3530
|
Lower spring housing |
1 |
|
|
1j |
172-8954
|
Nut retainer |
1 |
|
|
1k |
172-8955
|
Nut retainer |
1 |
|
|
2 |
181-0095
|
Dome plug |
1 |
|
|
3 |
272-9731
|
Screw 3/8-16 x 1 hex head |
2 |
|
|
4 |
272-3528
|
Mount weldment |
1 |
|
|
5a |
472-8776
|
40 inch disk scrub deck assembly |
1 |
|
|
5b |
472-8777
|
45 inch disk scrub deck assembly |
1 |
|
|
5c |
472-8778
|
48 inch disk scrub deck assembly |
1 |
|
|
