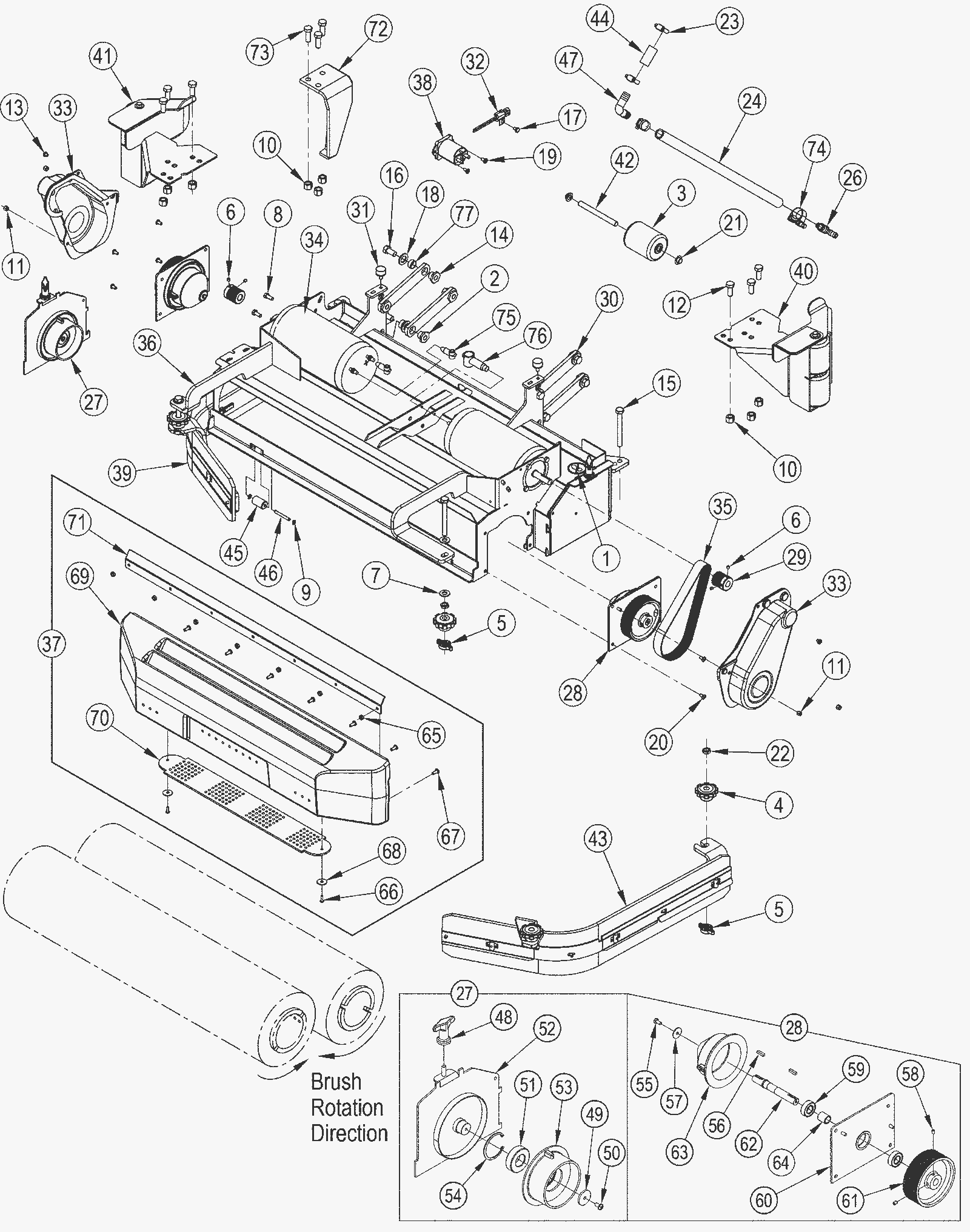

Scrub Assembly - Cylindrical Scrub Assembly

#PartDescription ReqNotesAvailability
1 172-3428 No step decal 2
2 272-5766 Bushing cam 2
3 172-9157 Roller wheel 2
4 572-9330 Knob 4
5 172-9282 Knob 4
6 272-5720 Screw 1/4-20 x 1/4 socket lock 4
7 999-0114 Washer 1/2 SAE flat 4
8 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 8
9 172-0392 Retaining ring 4
10 999-0519 Nut M12-1.75 nylon insert lock stainless steel 14
11 999-0469 Nut M6-1 nylon insert lock zinc plated 6
12 272-5777 Screw M12-1.75 x 35mm hex head SS 6
13 999-1257 Screw M6-1 x 16mm pan head Phillips 2
14 272-5772 Bushing 8
15 272-5773 Screw M12-1.75 x 110mm hex head SS 4
16 272-5774 Screw 1/2-10 x 1 hex head SS 8
17 999-0360 Screw 1/4-20 x 3/8 hex head thread rolling unslotted 1
18 272-7427 Washer 3/4 x 1 1/4 x 1/8 flat 8
19 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc 2
20 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 8
21 172-4017 1/2 inch push cap 4
22 999-1377 Nut M12-1.75 hex jam 4
23 997-2004 Hose clamp 4
24 272-2194 Wire reinforced hose 3/4 x 25 inch 1
26 272-3603 Barbed tee 1
27 272-5723 Broom idler assembly 2 (includes 48-54)
28 472-8760 LUG ASSY-BROOM DRIVE 2 (includes 55-64)
29 472-8761 SHEAVE-POLY V 2
30 272-5776 Parallel arm 2
31 272-9688 Rubber bumper 2
32a 272-5730 10K resistor assembly 1 (40 inch scrub deck)
32b 272-5731 40K resistor assembly 1 (45 and 48 inch scrub deck)
33 472-8782 BELT GUARD ASSY 2
34a 272-3687 36V 1.5Hp motor kit 2
34b 272-5733 Brush motor kit 1
35 472-8762 BELT-AUTO TENSION 2
36a 272-5735 40 inch cylindrical scrub deck weldment 1
36b 272-5736 45 inch cylindrical scrub deck weldment 1
36c 272-5737 48 inch cylindrical scrub deck weldment 1
37a 272-5738 40 inch hopper assembly 1 (includes 65-69a,70a, and 71a)
37b 272-5739 45 inch hopper assembly 1 (includes 65-69b,70b, and 71b)
37c 272-5740 48 inch hopper assembly 1 (includes 65-69c,70c, and 71c)
38 272-9761 36V 200amp contactor 1
39a 272-7174 Left hand skirt assembly 1 (40 inch deck)
39b 272-9737 Left hand skirt assembly 1 (45 and 48 inch deck)
40 472-8768 RIGHT GUARD ASSY 1
41 472-8769 LEFT GUARD ASSY 1 (45 and 48 inch deck)
42 272-5741 Pin 2
43 272-7175 Right hand skirt assembly 1
44 272-5742 Hose 1
45 272-5743 Rear roller 2
46 272-5744 Pin 2
47 272-5745 Elbow barb 1
48 172-4099 Nut 5/16-18 thumb 1
49 172-3610 Washer flat brass 1
50 272-5722 Screw 1/4-20 x 1/2 pan head 1
51 272-3931 Ball bearing 1
52 272-5747 Broom hanger 1
53 272-5748 Brush idler 1
54 172-4412 Retaining ring 1
55 999-9116 Screw M6-1 x 12mm hex head stainless steel 1
56 172-3045 Key 2
57 172-0548 Washer 17/64 x 47/64 flat stainless steel 1
58 272-1454 Screw 1/4-20 X 3/8 socket set lock 2
59 272-5749 Ball bearing 2
60 272-5750 Broom hanger 1
61 472-8759 SHEAVE-POLY V 1
62 272-5752 Broom drive lug shaft 1
63 272-5753 Drive lug 1
64 272-5765 Spacer 1
65 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 7
66 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel 2
67 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel 7
68 172-0548 Washer 17/64 x 47/64 flat stainless steel 2
69a 272-5754 40 inch hopper 1
69b 272-5755 45 inch hopper 1
69c 272-5756 48 inch hopper 1
70a 272-5757 40 inch hopper screen 1
70b 272-5758 45 inch hopper screen 1
70c 272-5759 48 inch hopper screen 1
71a 272-5760 40 inch hopper threshold 1
71b 272-5761 45 inch hopper threshold 1
71c 272-5762 48 inch hopper threshold 1
72 272-5763 Roll bar weldment 1 (40 inch deck)
73 272-5777 Screw M12-1.75 x 35mm hex head SS 3 (40 inch deck)
74 997-2005 Hose clamp 1
75 172-9147 Terminal insulator 3
76 172-8964 Terminal insulator 1
77 272-5778 Bearing 8
