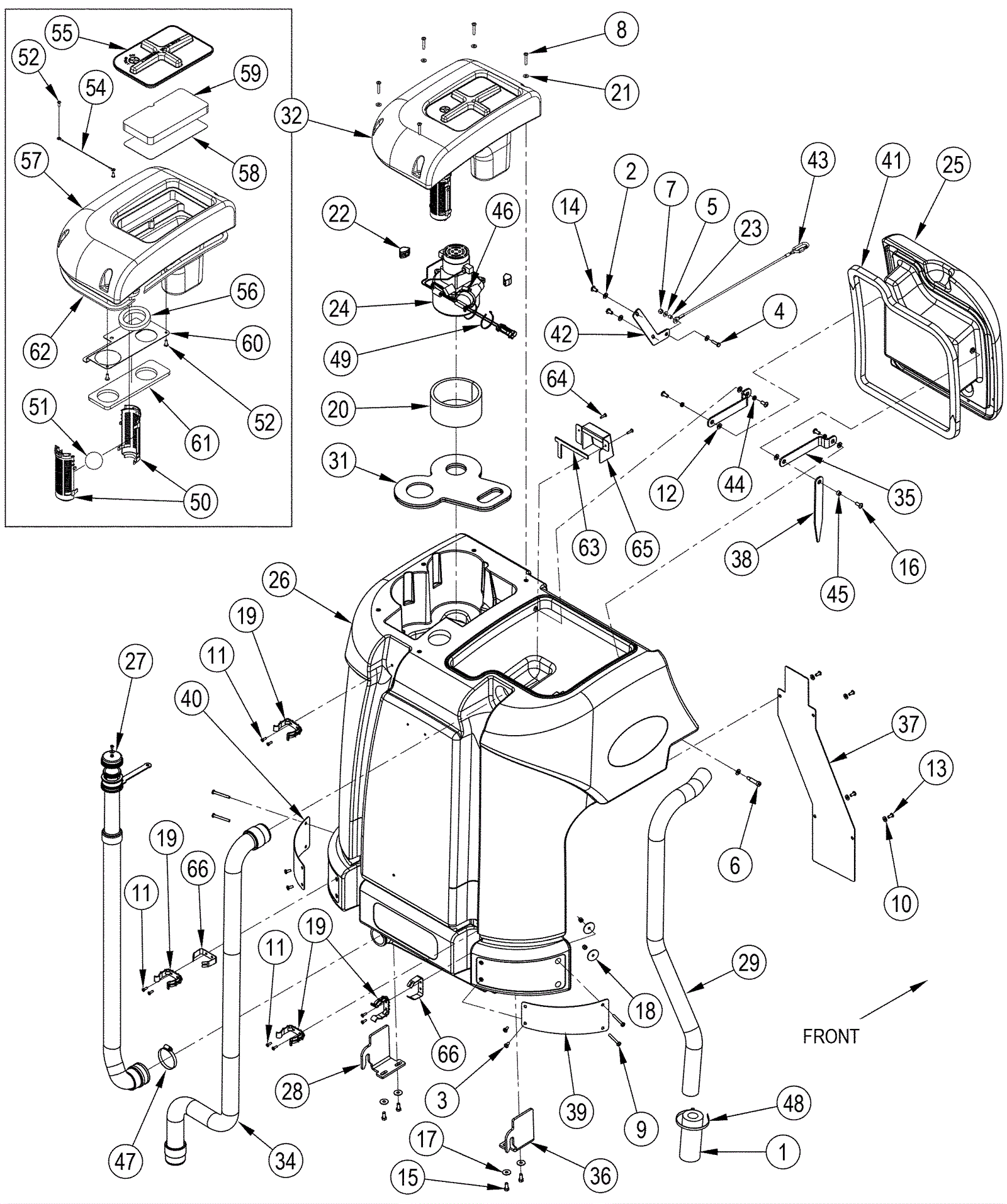

SC6500 Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 172-0126 Acoustical foam $29.23 1 usually ships 16-41 days
2 999-0024 Washer 5/16 flat stainless steel $1.34 3 ships same day
3 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 4 ships same day
4 999-0456 Screw 1/4-20 x 3/4 pan head phillips stainless steel $1.76 1 ships same day
5 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
6 172-5131 Screw .38 x 1 1/4 x 5/16-18 socket shoulder $12.31 1 usually ships 16-41 days
7 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 5 ships same day
8 999-0523 Screw 1/4-20 x 1 1/2 pan head phillips stainless steel $0.99 5 ships same day
9 172-3256 Screw 1/4 - 20 x 2 1/4 pan phil $12.31 4 usually ships 1-5 days
10 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
11 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel $1.54 8 ships same day
12 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
13 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 4 ships same day
14 999-1454 Bolt 5/16-18 x 5/8 pan head stainless steel $2.00 2 usually ships 1-5 days
15 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 4 ships same day
16 999-9006 Screw 5/16-18 x 3/4 pan head phillips stainless steel $1.44 4 usually ships 11-24 days
17 272-1288 Washer 21/64-1 x 1/16 flat stainless steel $12.31 4 usually ships 1-5 days
18 272-9793 Washer fender .281 x 1.5 x .074 $12.31 4 usually ships 1-5 days
19 172-3169 Plastic clamp $26.04 4 usually ships 16-41 days
20 172-3353 Vacuum muffler $31.10 1 usually ships 16-41 days
21 272-9984 Washer .266 x .906 x .06 flat stainless steel $9.26 5 usually ships 1-5 days
22 272-2108 Vibration mount $13.76 2 ships same day
23 172-0162 Bushing $13.76 1 usually ships 1-5 days
24 172-1071 36V vacuum motor assembly $298.77 1 usually ships 16-41 days
25 272-9794 Recovery tank lid $268.38 1 usually ships 16-41 days
26 272-9795 Recovery tank $3,062.33 1 usually ships 1-5 days
27a 272-7215 Ribbed drain hose $75.67 1 (inlcudes 27b) usually ships 16-41 days
27b 272-8537 Drain hose cap assembly $16.95 1 ships same day
28 272-9796 Recovery tank mount $40.08 1 usually ships 1-5 days
29 272-9797 Vacuum hose $35.60 1 usually ships 1-5 days
31 272-9798 Vacuum fan seal assembly $108.94 1 usually ships 1-5 days
32 272-9799 Top cover assembly $482.66 1 (inlcudes 50-62) usually ships 1-5 days
33 272-9800 Recovery tank harness $106.04 1 usually ships 1-5 days
34 272-7176 Squeegee vacuum hose $130.50 1 usually ships 16-41 days
35 272-9801 Lid hinge arm $32.69 2 usually ships 1-5 days
36 272-9802 Right hinge plate $42.98 1 usually ships 1-5 days
37 272-9803 Exhaust panel $92.03 1 usually ships 1-5 days
38 272-9804 Prop $16.95 1 usually ships 1-5 days
39 272-9805 Right rear bumper $26.04 1 usually ships 1-5 days
40 272-9806 Left rear bumper $26.04 1 usually ships 1-5 days
41 472-8786 RECOVERY LID GASKET ASSY $140.92 1 usually ships 16-41 days
42 272-9807 Cable mount plate $12.31 1 usually ships 1-5 days
43 272-9973 Quick link cable assembly $18.38 1 usually ships 1-5 days
44 272-9974 Bushing $16.50 3 usually ships 1-5 days
45 272-9975 Bushing $18.08 1 usually ships 1-5 days
46 272-9976 #32 hose clamp SAE $10.85 1 ships same day
47 272-9977 #36 hose clamp SAE $8.80 2 usually ships 1-5 days
48 997-2102 Cable tie $1.24 1 ships same day
49 372-2096 Cable tie $12.31 1 usually ships 16-41 days
50 172-0517 Float cage half (2 required for full float cage) $18.38 2 ships same day
51 172-0192 Float ball $10.52 1 ships same day
52 272-9978 Screw 10-14 x 1/2 pan head phillips plastite $10.85 2 usually ships 16-41 days
54 172-3357 9 inch wire rope $13.76 1 usually ships 1-5 days
55 272-5303 Recovery tank lid and gasket $35.60 1 ships same day
56 272-0430 Vacuum duct gasket $13.76 1 ships same day
57 272-9979 Recovery tank top $331.75 1 usually ships 1-5 days
58 272-9980 Filter screen $16.95 1 usually ships 16-41 days
59 272-9981 Filter $15.48 1 usually ships 16-41 days
60 272-9982 Vacuum cover plate $42.98 1 usually ships 1-5 days
61 272-9983 Vacuum fan gasket $18.38 1 usually ships 1-5 days
62 472-8013 GASKET-STRIP-59X.5X.25 $9.26 1 usually ships 16-41 days
63 472-8781 GASKET-STRIP .12X.5X7.5 $19.98 1 usually ships 16-41 days
64 999-0898 Screw 10-16 x 3/4 pan head phillips stainless steel type B $0.99 2 ships same day
65 472-8765 DEFLECTOR-WATER $48.18 1 usually ships 16-41 days
66 372-3282 Spring clip $17.35 2 usually ships 16-41 days
