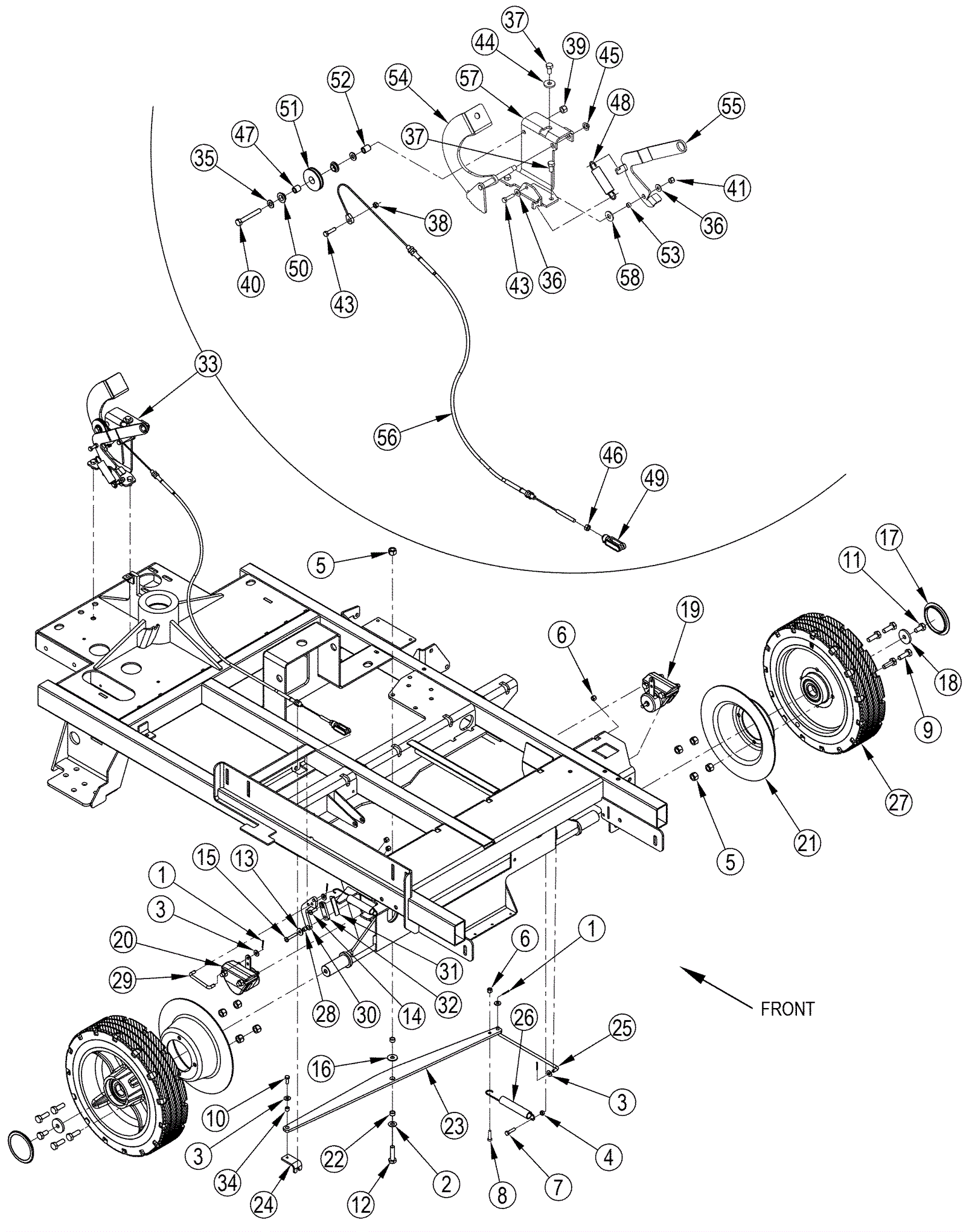

SC6500 Rear Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 172-0781 Cotter pin .06 x .75 $11.99 4 usually ships 1-5 days
2 999-0120 Washer 3/8 SAE flat $0.99 1 ships same day
3 999-0123 Washer 1/4 SAE flat zinc plated $0.99 5 ships same day
4 999-1308 Nut M6-1 hex stainless steel $0.99 1 ships same day
5 272-4936 Nut $11.99 9 usually ships 1-5 days
6 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 4 ships same day
7 999-0518 Bolt M6-1 x 25mm hex head full thread zinc $0.99 1 ships same day
8 999-0518 Bolt M6-1 x 25mm hex head full thread zinc $0.99 1 ships same day
9 999-9091 Screw M10-1.5 x 30mm hex head stainless steel $4.14 8 ships same day
10 272-1599 Bolt M6 x 15mm hex head nylok $11.99 1 usually ships 1-5 days
11 272-1605 Bolt M10-1.5 x 20mm hex head nylon lock $11.99 2 usually ships 16-41 days
12 272-1624 Bolt M10-1.5 x 40mm hex $11.99 1 usually ships 16-41 days
13 372-1036 Washer 6mm $11.99 1 usually ships 1-5 days
14 999-1168 Screw M6-1 x 20mm pan head phillips stainless steel $1.01 1 ships same day
15 999-6718 Screw M6-1 x 35mm pan head phillips stainless steel $0.99 1 ships same day
16 272-1835 Washer flat $11.99 1 usually ships 16-41 days
17 472-4941 CAP-HUB $9.02 2 usually ships 16-41 days
18 272-1606 Washer flat $22.69 2 ships same day
19 272-9782 Right hand brake $134.27 1 usually ships 1-5 days
20 272-9781 Left hand brake $122.72 1 usually ships 1-5 days
21 272-9775 Rotor $93.74 2 usually ships 16-41 days
22 272-9776 Bushing .41 x .5 x .28 $11.99 2 usually ships 1-5 days
23 272-9777 Equalizer $62.83 1 usually ships 1-5 days
24 272-9778 Yoke $21.00 1 usually ships 1-5 days
25 272-9780 Brake linkage $17.90 1 usually ships 1-5 days
26 272-9783 Extension spring $36.07 2 usually ships 1-5 days
27a 472-8740 WHEEL-REAR-14IN-3.5IN $626.77 2 usually ships 16-41 days
27b 472-8741 BEARING-BALL-30MM X62MM X 16MM $16.50 4 usually ships 16-41 days
28 372-3017 Bushing .257 x .375 x .265 Call for price 1 usually ships 16-41 days
29 372-3018 Brake link $19.02 1 usually ships 16-41 days
30 472-8745 LEVER-BRAKE $15.07 1 usually ships 16-41 days
31 472-8746 STOP-LEVER $9.02 1 usually ships 16-41 days
32 472-8747 SPACER-LEVER $13.40 1 usually ships 16-41 days
33 N/A Not available Call for price 1 (Brake Pedal Asssembly - includes 35-58) usually ships 3-26 days
34 172-0185 Bushing $36.07 1 usually ships 1-5 days
35 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
36 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
37 272-9785 Screw 5/16-18 x 5/8 hex head lock $11.99 3 usually ships 16-41 days
38 999-1308 Nut M6-1 hex stainless steel $0.99 1 ships same day
39 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
40 272-1611 Bolt 8mm-1.25 x 60mm hex head $11.99 1 usually ships 1-5 days
41 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 1 ships same day
43 999-0518 Bolt M6-1 x 25mm hex head full thread zinc $0.99 2 ships same day
44 172-2067 Washer 11/32 x 1/8 flat $11.99 1 usually ships 16-41 days
45 172-4142 Nut 3/8 push cap $10.56 1 usually ships 16-41 days
46 172-4974 Nut 1/4-28 hex machine $11.99 1 usually ships 1-5 days
47 272-0468 Bushing $43.41 1 usually ships 1-5 days
48 272-9786 Extension spring $26.92 1 usually ships 1-5 days
49 172-9205 Clevis yoke $43.41 1 usually ships 1-5 days
50 272-9481 Flanged bearing $15.07 2 usually ships 16-41 days
51 272-9788 Pulley $17.90 1 usually ships 16-41 days
52 272-9792 Spacer $11.99 1 usually ships 1-5 days
53 272-9784 Bushing $15.07 1 usually ships 1-5 days
54 272-9790 Brake pedal weldment $122.72 1 usually ships 1-5 days
55 272-9789 Pawl $22.41 1 usually ships 1-5 days
56 472-8763 CABLE ASSY $44.79 1 usually ships 16-41 days
57 272-9791 Brake pedal bracket $48.32 1 usually ships 1-5 days
58 172-3203 Washer 3/8 plated nylon $6.05 1 usually ships 16-41 days
