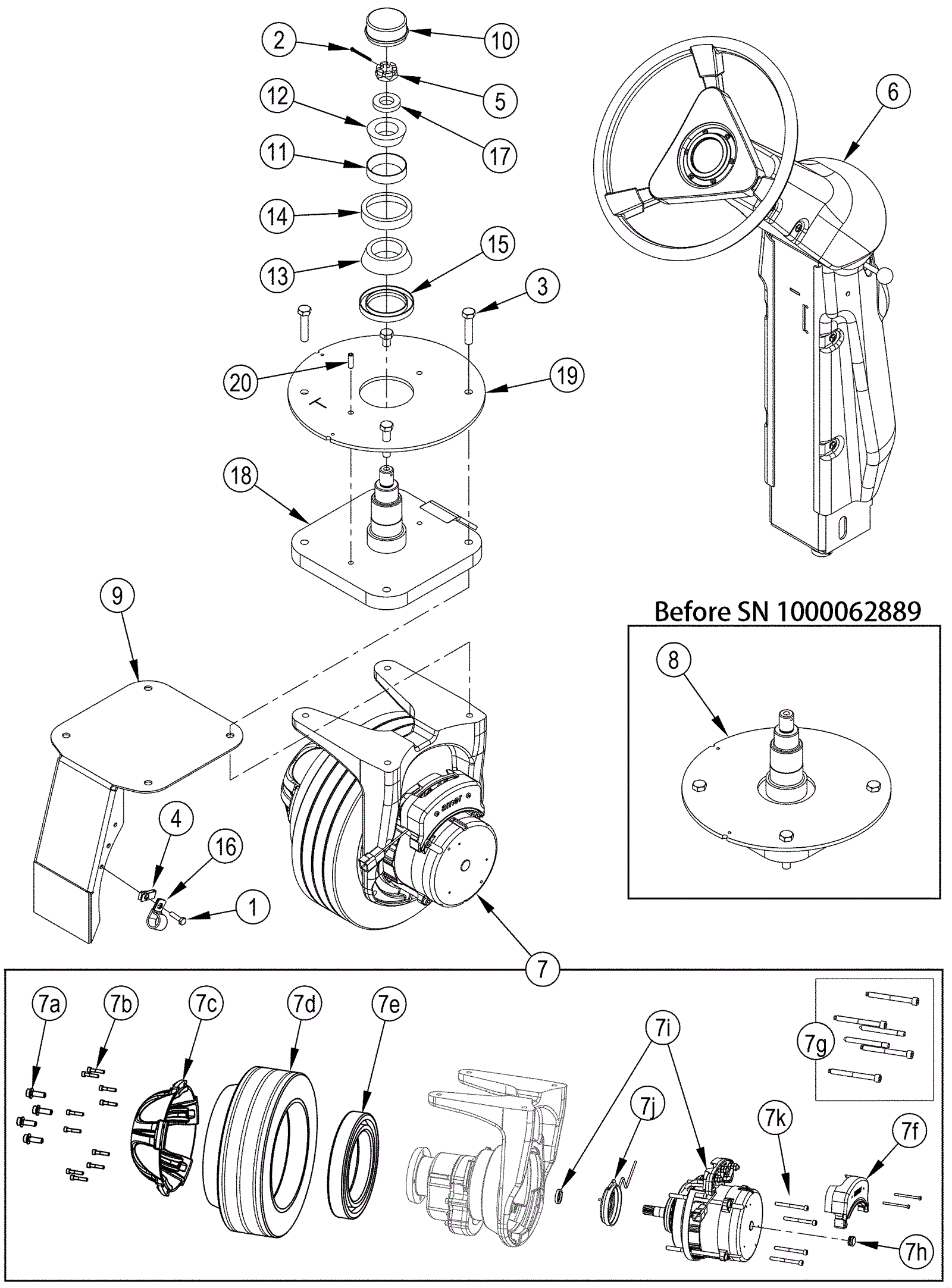

Drive Wheel Assembly

#PartDescription ReqNotesAvailability
1 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 1
2 172-9386 Cotter pin 1
3 172-8498 Screw M12-1.75 x 55mm hex head 4
4 172-2049 Nut 1/4- 20 1
5 272-1603 Nut 7/8-14 castle 1
6 N/A Not available 1 (Steering Assembly)
7a 472-8787 WHEEL-DRIVE-AC 1 (includes 7b-7l)
7b 472-8792 SCREW KIT- M10X30 1
7c 472-8793 SCREW KIT-M6X30 1
7d 472-8794 HUB-DRIVE WHEEL 1
7e 472-8795 WHEEL-3.94X350 1
7f 472-8796 BEARING-DRIVE WHEEL 1
7g 472-8797 TERMINAL COVER KIT 1
7h 372-4011 Tire puller kit 1
7i 472-8340 HOLE PLUG-20MM 1
7j 372-4012 Drive wheel motor kit 1
7k 372-4013 Drive motor encoder kit 1
7l 372-4014 Screw 4
8 472-8789 FRONT SPINDLE WELDMENT 1 (before SN 1000062889)
9 472-8790 GUARD-SPLASH 1
10 172-9403 Grease cap 1
11 172-9404 Cup bearing 1
12 172-9405 Cone bearing 1
13 172-9406 Cone bearing 1
14 172-9407 Cup bearing 1
15 172-9408 Radial lip seal 1
16 272-1613 P clamp 1
17 172-9409 Bushing 1
18 372-4015 Front spindle weldment 1
19 372-4016 Steering plate 1
20 472-3454 PIN SPR .31 X 1.00 2
N/S 472-8320 TRACTION HARNESS KIT 1 (before SN 1000061188)
