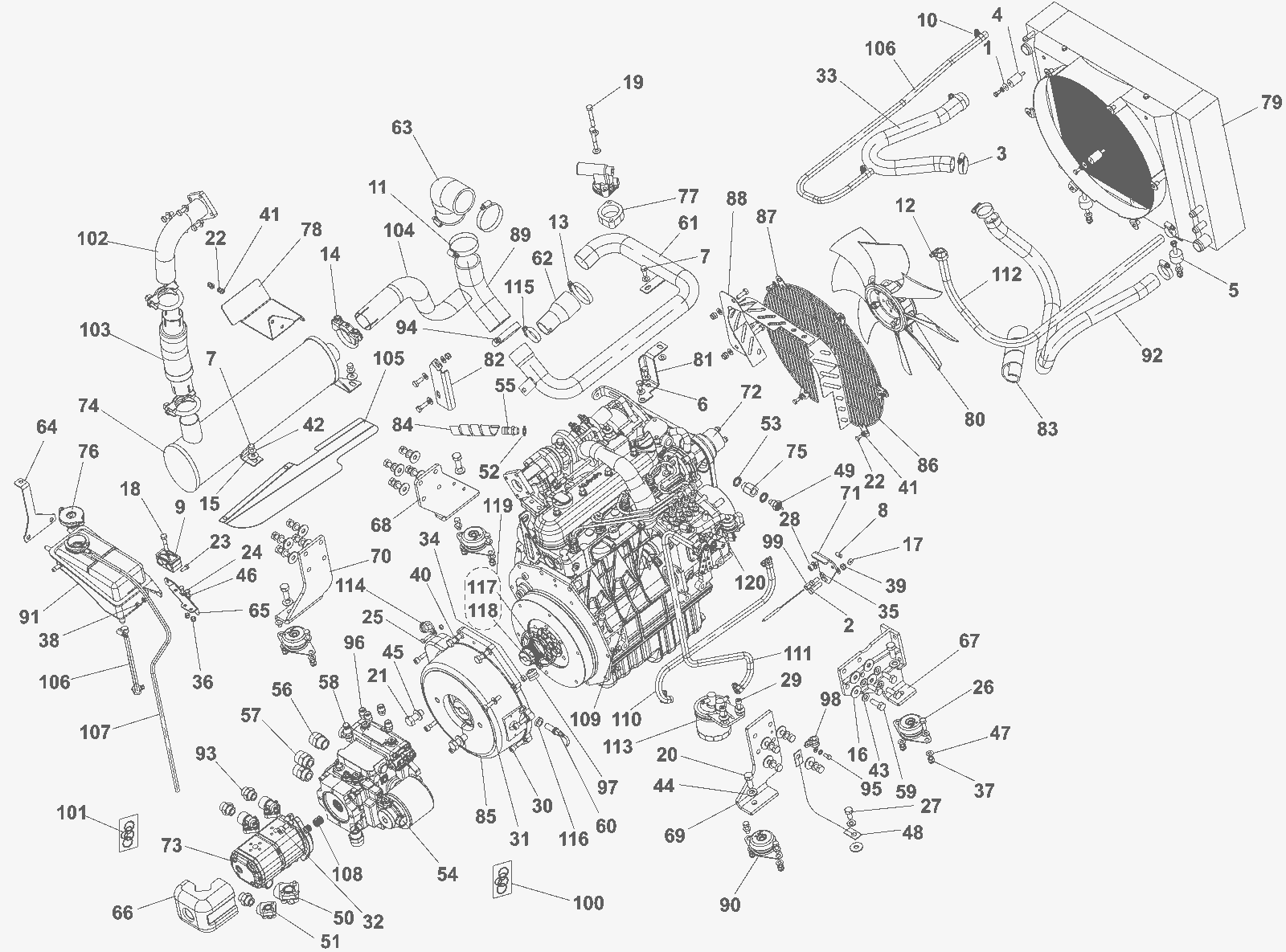

V1505 T Engine Assembly

#PartDescription ReqNotesAvailability
1 N/A Not available 1 (Washer M7 thick rubber)
2 272-4743 Screw 1
3 N/A Not available 4 (clamp)
4 272-4744 Rubber isolator 2
5 272-4745 Vibration dampener 2
6 172-3687 Screw 8x16 2
7 999-9092 Screw M8-1.25 x 20mm hex head stainless steel 2
8 272-4112 Accelerator cable clamp 1
9 272-4458 Double hose clamp (OBSOLETE) 1
10 170-5169 Hose clamp SAE #4 8
11 272-4382 Clamp (OBSOLETE) 2
12 272-4746 Clamp (OBSOLETE) 2
13 N/A Not available 1 (clamp)
14 272-4747 Muffler clamp 1
15 272-4748 Washer 4
16 272-4749 Washer 17
17 999-9100 Washer M5 flat stainless steel 1
18 272-4750 Screw (OBSOLETE) 1
19 272-4751 Screw (OBSOLETE) 2
20 272-4752 Screw (OBSOLETE) 4
21 N/A Not available 2 (screw)
22 172-3665 Screw 6 x 12 hex head 10
23 172-4823 Screw M6 x 16mm hex head 1
24 999-1312 Screw M6-1 x 20mm hex head stainless steel 2
25 N/A Not available 1 (screw)
26 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc 15
27 272-7077 Screw M10 x 20mm 1
28 170-9269 Screw M8 x 16mm 1
29 272-9506 Screw M8-1.25 x 20mm socket head 2
30 272-4753 Screw 8 x 30 (OBSOLETE) 6
31 272-4754 Screw 8 x 45 1
32 272-4755 Screw 10 x 30 (OBSOLETE) 2
33 N/A Not available 1 (hose)
34 999-0579 Nut M8-1.25 hex coarse thread zinc 3
35 272-4756 Nut 3
36 172-3667 Nut M6 self locking (OBSOLETE) 2
37 472-3360 NUT SELF L. M8 UNI7473 10 PCS 12
38 999-0497 Nut M6-1 nylon insert lock stainless steel 2
39 999-0496 Nut M8-1.25 nylon insert lock stainless steel 4
40 999-0006 Washer 3/16 flat zinc plated 2
41 272-4757 Washer (OBSOLETE) 11
42 272-4703 Lock washer 17
43 272-4758 Washer (OBSOLETE) 19
44 272-4759 Washer (OBSOLETE) 4
45 272-4760 Washer (OBSOLETE) 2
46 172-3762 Washer 6 X 12 1/2 flat (OBSOLETE) 2
47 999-1267 Washer M8 flat zinc 25
48 272-4569 Ground cable (OBSOLETE) 1
49 272-4761 Thermistor (OBSOLETE) 1
50 272-4762 Elbow fitting (OBSOLETE) 1
51 272-4294 1/2 inch o-ring elbow fitting 3
52 272-4763 Washer (OBSOLETE) 1
53 272-4236 3/8 inch sealing washer 2
54 272-4407 Pump (OBSOLETE) 1
55 272-4764 Rubber seal holder (OBSOLETE) 1
56 272-4463 Nipple 3
57 272-4510 Nipple (OBSOLETE) 2
58 272-4765 Quick fitting (OBSOLETE) 1
59 272-4766 Screw M10 x 1.25 x 30mm (OBSOLETE) 18
60 272-4767 Sensor turns 1
61 272-4768 Suction pipe (OBSOLETE) 1
62 272-4769 Reduction coupling (OBSOLETE) 1
63 272-4381 Air intake hose (OBSOLETE) 1
64 272-4770 Upper support (OBSOLETE) 1
65 272-4771 Lower support (OBSOLETE) 1
66 272-4772 Cover (OBSOLETE) 1
67 272-4773 Left hand rear support (OBSOLETE) 1
68 272-4774 Right hand rear support (OBSOLETE) 1
69 272-4775 Left hand front support (OBSOLETE) 1
70 272-4776 Right hand front support (OBSOLETE) 1
71 272-4777 Support cable (OBSOLETE) 1
72 272-4031 V1505T Kubota engine (OBSOLETE) 1
73 272-4420 Gear pump (OBSOLETE) 1
74 272-4778 Muffler (OBSOLETE) 1
75 272-4779 Reducer fitting (OBSOLETE) 1
76 172-9006 Plug (OBSOLETE) 1
77 272-4821 Shim (OBSOLETE) 1
78 272-4780 Case (OBSOLETE) 1
79 272-4781 Water radiator (OBSOLETE) 1
80 272-4782 Fan (OBSOLETE) 1
81 272-4783 Support (OBSOLETE) 1
82 272-4784 Support (OBSOLETE) 1
83 272-4785 Spiral (OBSOLETE) 1
84 272-4786 Spiral (OBSOLETE) 1
85 272-4787 Engine bell kit (OBSOLETE) 1
86 272-4788 Protection (OBSOLETE) 1
87 272-4789 Protection grating (OBSOLETE) 1
88 272-4790 Case (OBSOLETE) 1
89 N/A Not available 1 (Hose)
90 272-4791 Vibration damping (OBSOLETE) 4
91 272-4792 Expansion tank 1
92 272-4793 Hose (OBSOLETE) 1
93 272-4244 1/2 inch nipple 3
94 270-8257 Clamp 2
95 999-0978 Bolt M6-1 x 14mm hex head stainless steel 1
96 272-4292 1/4 inch pipe fitting 4
97 272-4794 Clamp (OBSOLETE) 1
98 270-8189 Hose clamp 2
99 172-3777 Adjuster (OBSOLETE) 1
100 272-4795 Gasket kit 1
101 272-4796 Gasket kit (OBSOLETE) 1
102 272-4797 Exhaust pipe (OBSOLETE) 1
103 272-4798 Flexible hose 1
104 272-4799 Muffler terminal (OBSOLETE) 1
105 272-4800 Protection (OBSOLETE) 1
106 272-4801 Hose (OBSOLETE) 1
107 272-4802 Crystal hose (OBSOLETE) 1
108 272-4803 Keyed joint (OBSOLETE) 1
109 272-4804 Solenoid valve stop 1
110 272-4805 Hose (OBSOLETE) 1
111 272-4742 Pipe (OBSOLETE) 1
112 272-4806 Hose (OBSOLETE) 1
113 272-4807 Diesel filter 1
114 272-0763 Clamp 2
115 272-4657 Hose clamp 1
116 272-4808 Spacer (OBSOLETE) 1 (after SN 103806748)
117 N/A Not available 1 (flange)
118 N/A Not available 1 (hub)
119 272-4809 Coupling kit 1
120 272-4810 Sensor plug kit (OBSOLETE) 1
N/S 272-4371 Engine oil filter 1
N/S 272-4811 Starter 1
N/S 272-4372 Fuel filter 1
N/S 272-7833 Injector 3
N/S 272-4812 Oil pressure switch (OBSOLETE) 1
N/S 272-4813 Thermostate valve 1
N/S 272-4814 Injection pump (OBSOLETE) 1
N/S 272-4815 Diesel pump 1
N/S 272-4816 Glow plug (OBSOLETE) 4
N/S 272-4817 Engine seals kit (OBSOLETE) 1
N/S 272-4818 Alternator (OBSOLETE) 1
N/S 272-4819 Alternator belt (OBSOLETE) 1
N/S 272-4820 Valve cover gasket (OBSOLETE) 1
