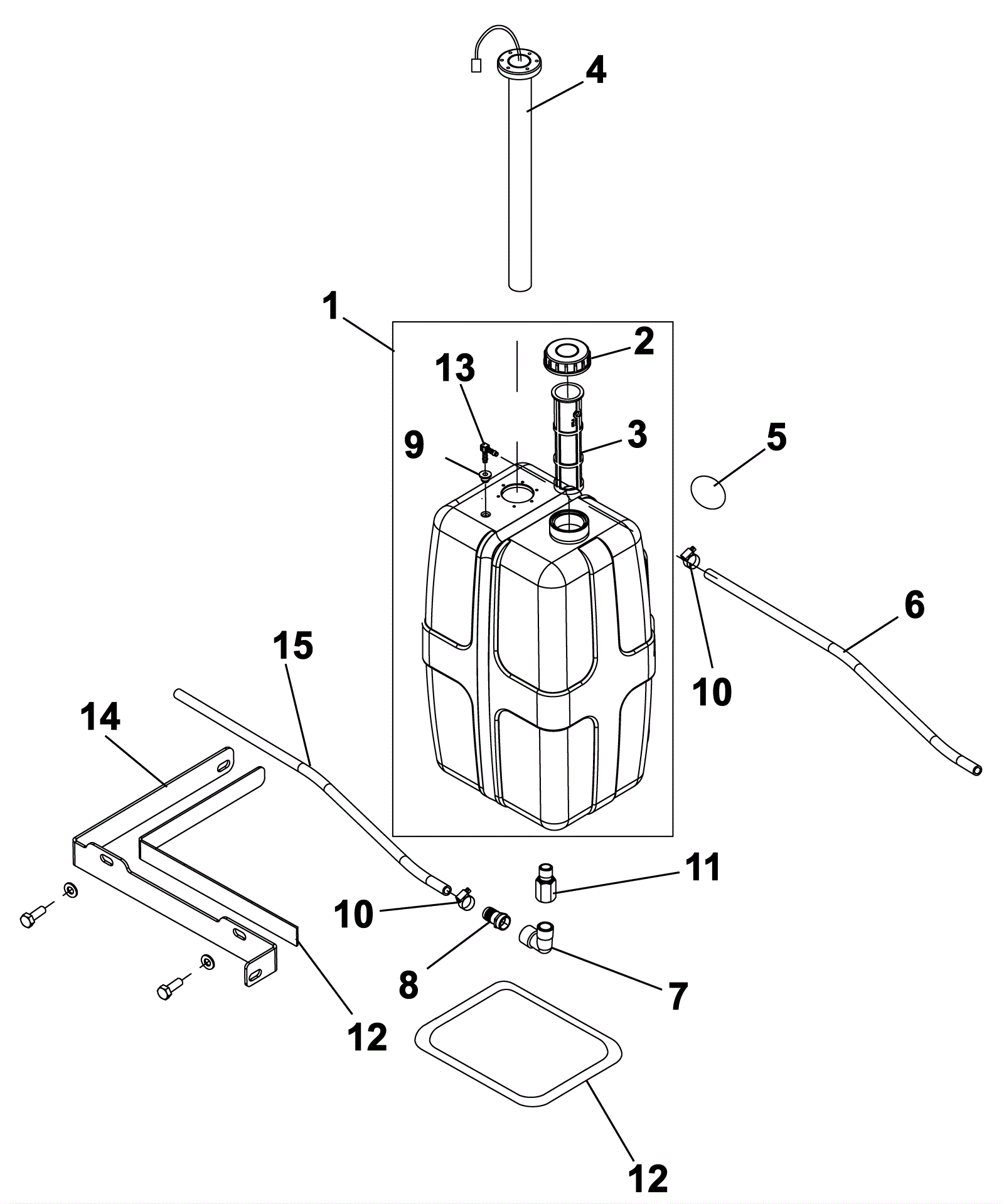

Tank Assembly

#PartDescription ReqNotesAvailability
1 272-4732 Tank 1
2 272-4733 Plug 1
3 272-4734 Water filter (OBSOLETE) 1
4 272-4735 Float 1
5 272-4736 Decal (OBSOLETE) 1
6 272-4737 Pipe (OBSOLETE) 1
7 272-4220 1/4 inch elbow fitting 1
8 272-4332 Rubber seal holder 1
9 272-4738 Cable guide 1
10 170-5169 Hose clamp SAE #4 4
11 272-4739 Bolt M12 x 1.5 1
12 272-4740 Gasket (OBSOLETE) 1
13 172-0660 L-connection 1
14 272-4741 Bracket (OBSOLETE) 1
15 272-4742 Pipe (OBSOLETE) 1
