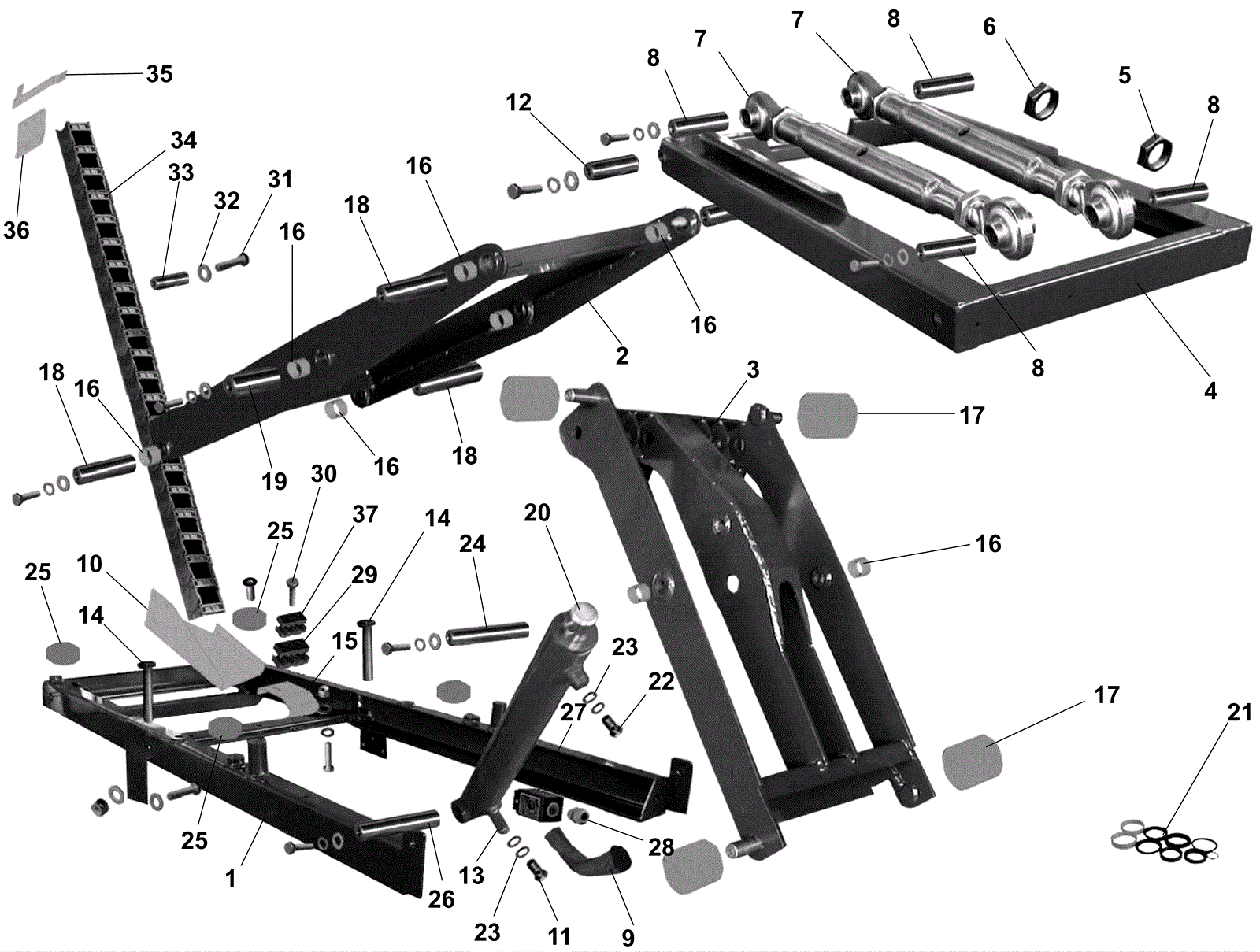

Autolift Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-4681 Base (OBSOLETE) $1,432.86 1 usually ships 1-5 days
2 272-4682 Hopper lift frame (OBSOLETE) $1,874.07 1 usually ships 1-5 days
3 272-4683 Hopper lift frame (OBSOLETE) $2,870.34 1 usually ships 1-5 days
4 272-4684 Hopper lift base $2,255.00 1 usually ships 1-5 days
5 272-4685 Left nut 27 x 3 (OBSOLETE) $12.87 2 usually ships 1-5 days
6 272-4686 Nut M27 x 3 hex thin (OBSOLETE) $7.70 2 usually ships 1-5 days
7 272-4687 Turnbuckle assembly (OBSOLETE) $135.41 2 usually ships 1-5 days
8 272-4688 Hopper hinge pin $54.85 4 usually ships 1-5 days
9 272-4689 Sheath (OBSOLETE) $12.54 1 usually ships 1-5 days
10 272-4690 Chain support (OBSOLETE) $86.46 1 usually ships 1-5 days
11 272-4496 Bolt 1/4 inch single banjo (OBSOLETE) $9.68 1 usually ships 1-5 days
12 272-4691 Hopper hinge pin (OBSOLETE) $43.45 2 usually ships 1-5 days
13 272-4447 1/4 inch valve (OBSOLETE) $41.03 1 usually ships 1-5 days
14 272-4196 Safety pin (OBSOLETE) $46.53 2 usually ships 1-5 days
15 272-4692 Hose case (OBSOLETE) $62.48 1 usually ships 1-5 days
16 272-4342 Bushing $23.01 8 usually ships 1-5 days
17 272-4693 Plastic wheel $61.56 4 usually ships 1-5 days
18 272-4694 Hopper hinge pin (OBSOLETE) $45.98 4 usually ships 1-5 days
19 272-4695 Hopper hinge pin $82.62 2 usually ships 1-5 days
20 272-4446 Hopper lifting cylinder (OBSOLETE) $464.20 1 usually ships 1-5 days
21 272-4696 Gasket kit (OBSOLETE) $28.05 1 usually ships 1-5 days
22 272-4237 1/4 inch fitting $13.17 1 usually ships 1-5 days
23 272-7335 Sealing washer $11.99 4 usually ships 1-5 days
24 272-4697 Hopper hinge pin $50.03 1 usually ships 1-5 days
25 272-4698 Plastic bumper (OBSOLETE) $35.64 4 usually ships 1-5 days
26 272-4699 Hopper hinge pin (OBSOLETE) $46.53 1 usually ships 1-5 days
27 272-4700 Microswitch (OBSOLETE) $64.24 1 usually ships 1-5 days
28 270-8228 Cable clamp $12.31 1 usually ships 1-5 days
29 272-4701 Double collar (OBSOLETE) $6.27 1 usually ships 1-5 days
30 272-4702 Screw 8 x 70 hex head (OBSOLETE) $5.83 1 usually ships 1-5 days
31 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 1 ships same day
32 272-4703 Lock washer $9.27 1 usually ships 1-5 days
33 272-4704 Chain support (OBSOLETE) $7.81 1 usually ships 1-5 days
34 272-4705 Hose holder chain $346.50 1 usually ships 1-5 days
35 272-4706 Plate (OBSOLETE) $30.58 1 usually ships 1-5 days
36 272-4707 Chain fixing plate (OBSOLETE) $44.66 1 usually ships 1-5 days
37 272-4708 Double hose clamp (OBSOLETE) $20.90 1 usually ships 1-5 days
N/S 272-4709 Hose holder chain kit $924.00 1 usually ships 1-5 days
