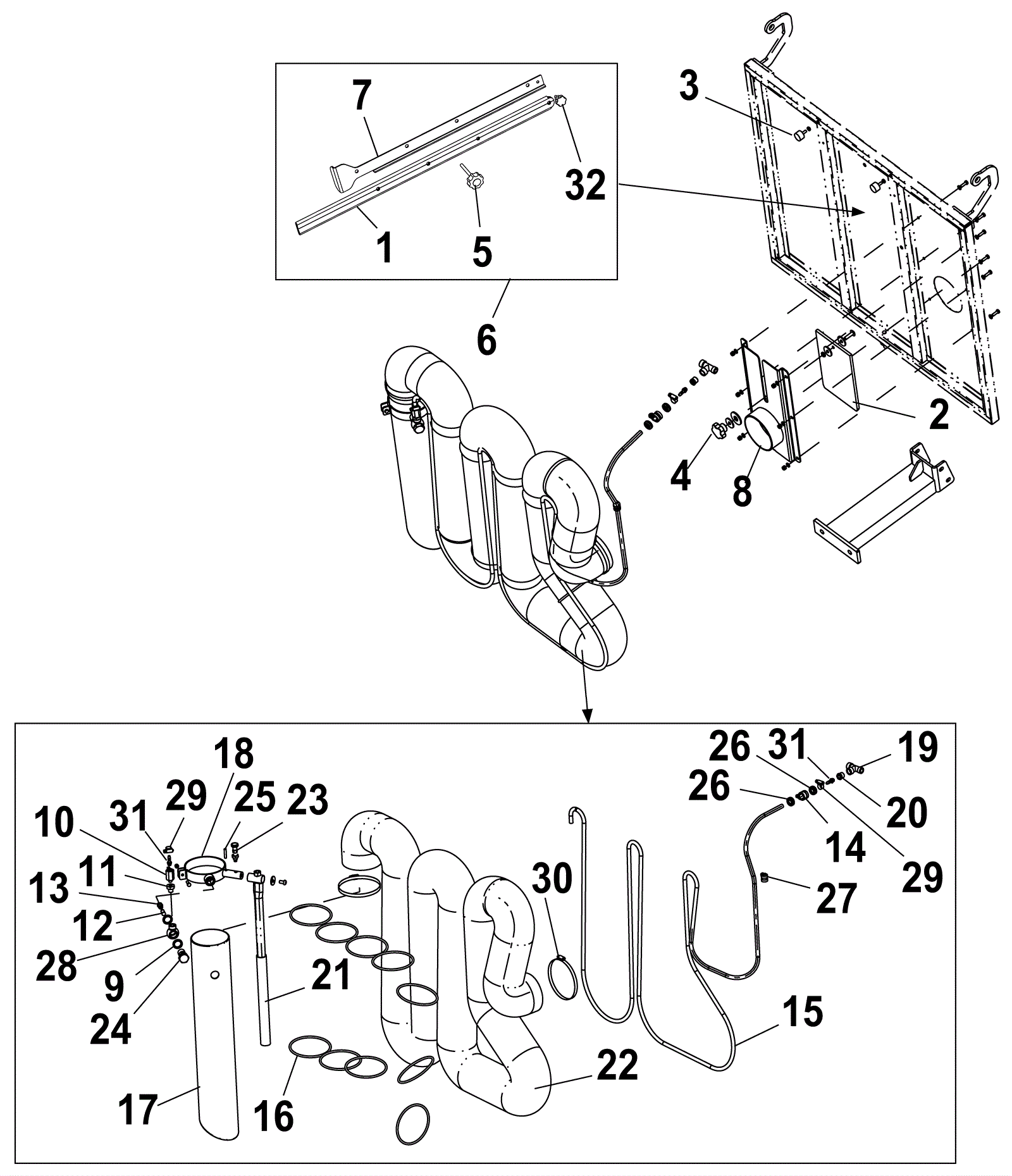

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
272-4658
|
Handle (OBSOLETE) |
1 |
|
|
2 |
272-4659
|
Rear suction tube flap |
1 |
|
|
3 |
272-4197
|
Rubber isolator |
2 |
|
|
4 |
272-4660
|
Knob |
1 |
|
|
5 |
272-4661
|
Knob |
1 |
|
|
6 |
272-4662
|
Unclogging device kit (OBSOLETE) |
1 |
|
|
7 |
272-4663
|
Shovel (OBSOLETE) |
1 |
|
|
8 |
272-4664
|
Hose mounting plate |
1 |
|
|
9 |
272-4507
|
Washer |
2 |
|
|
10 |
272-4665
|
1/8 inch ball valve |
1 |
|
|
11 |
272-4666
|
Reduction gear |
1 |
|
|
12 |
272-4329
|
Mesh filter |
1 |
|
|
13 |
272-4667
|
Spray nozzle |
1 |
|
|
14 |
272-4668
|
Hose clamp (OBSOLETE) |
1 |
|
|
15 |
272-4212
|
Hose |
1 |
|
|
16 |
272-4669
|
Gasket |
10 |
|
|
17 |
272-4670
|
Suction hose |
1 |
|
|
18 |
272-4671
|
Collar (OBSOLETE) |
1 |
|
|
19 |
272-4672
|
3/8 inch tee fitting (OBSOLETE) |
1 |
|
|
20 |
272-4673
|
Reducer fitting (OBSOLETE) |
1 |
|
|
21 |
272-4674
|
Handle |
1 |
|
|
22 |
272-4675
|
Polyurethane hose |
1 |
|
|
23 |
272-4676
|
Indexing plunger |
1 |
|
|
24 |
272-4677
|
Bolt single thread banjo |
1 |
|
|
25 |
272-4678
|
Spring pin |
1 |
|
|
26 |
272-4586
|
Fairlead |
2 |
|
|
27 |
270-8189
|
Hose clamp |
1 |
|
|
28 |
272-4679
|
Banjo fitting |
1 |
|
|
29 |
170-5169
|
Hose clamp SAE #4 |
2 |
|
|
30 |
272-4680
|
Hose clamp |
2 |
|
|
31 |
272-4211
|
Rubber seal |
2 |
|
|
32 |
472-1227
|
KNOB LOBED M6X15 PKD |
1 |
|
|
