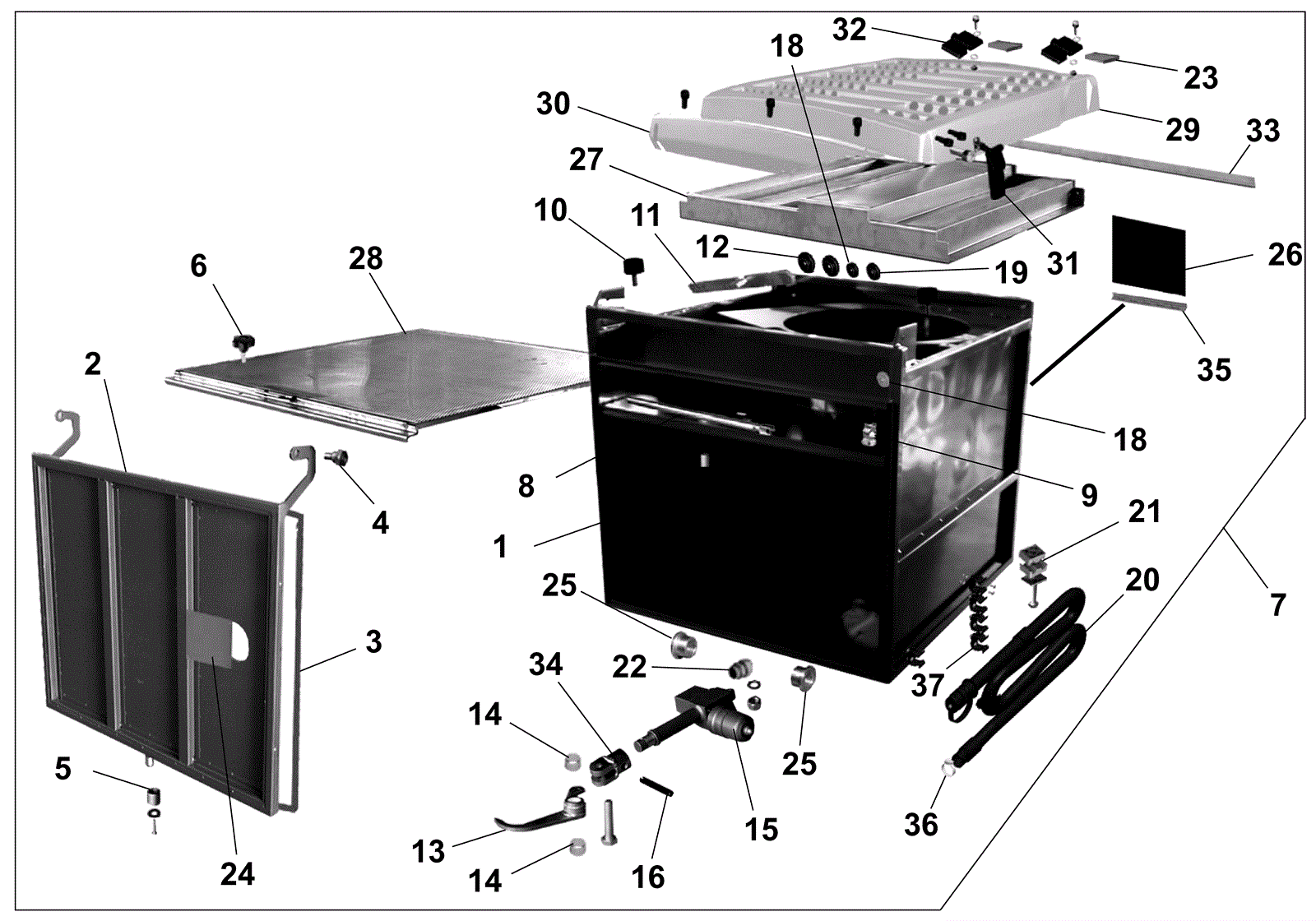

Hopper Assembly

#PartDescription ReqNotesAvailability
1 272-4030 Hopper kit (OBSOLETE) 1
2 272-4632 Hopper door (OBSOLETE) 1
3 272-4633 Gasket (OBSOLETE) 1
4 272-4634 Hopper door pin 2
5 272-4635 Roller (OBSOLETE) 1
6 272-4102 Knob M8 x 45 (OBSOLETE) 1
7a 272-4636 Standard hopper kit (OBSOLETE) 1 (Standard)
7b 272-4643 Hopper kit (OBSOLETE) 1 (Optional)
8 272-4637 Hopper door prop rod 1
9 272-4101 Spring clip (OBSOLETE) 1
10 272-4197 Rubber isolator 2
11 272-4638 Hopper cover prop rod (OBSOLETE) 1
12 272-4639 Rubber grommet (OBSOLETE) 2
13 272-4640 Hopper door latch (OBSOLETE) 1
14 272-4342 Bushing 2
15 272-4641 12V electric actuator 1
16 272-4642 10 x 40 spring pin 1
18 272-4586 Fairlead 2
19 272-4644 Fairlead 1
20 272-4042 Water drain hose 1
21 272-4458 Double hose clamp (OBSOLETE) 3
22 272-4645 Strain relief (OBSOLETE) 1
23 272-4646 Plate 2
24 272-4647 Hopper door plate (OBSOLETE) 1
25 272-4648 Flanged bushing 2
26 272-4649 Suction tube flap 1
27 272-4650 Secondary filter (OBSOLETE) 1
28 272-4651 Internal filter 1
29 272-4652 Upper bonnet 1
30 272-4653 Upper panel 1
31 272-4132 Latch 2
32 270-0357 Hinge 2
33 272-4654 Reinforcement plate (OBSOLETE) 1
34 272-4655 Electric actuator yoke 1
35 272-4656 Hinge (OBSOLETE) 1
36 272-4657 Hose clamp 1
37 272-1159 Plastic clamp 6
