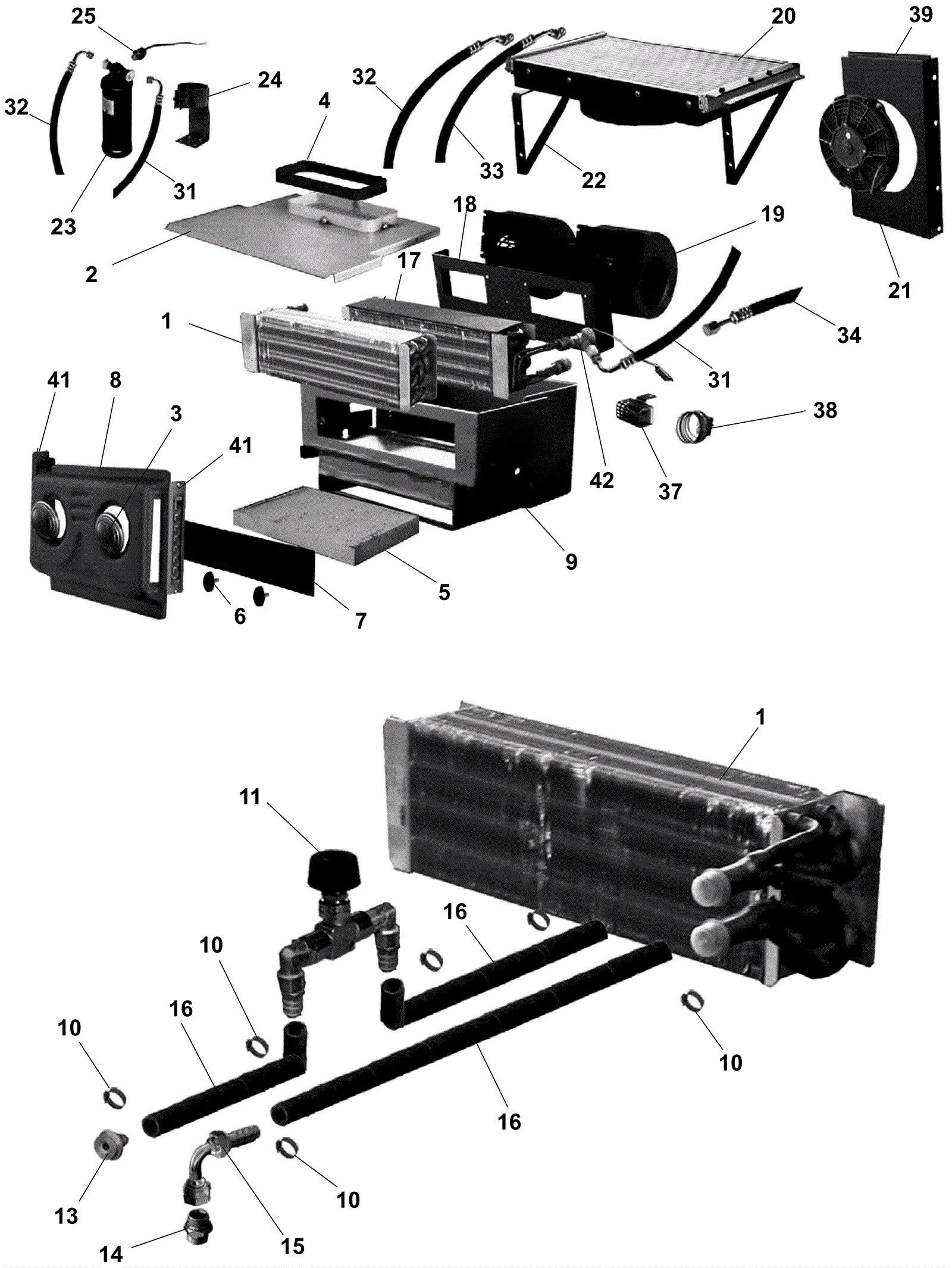

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
272-4593
|
Heater core (OBSOLETE) |
1 |
|
|
2 |
272-4594
|
A/C unit cover (OBSOLETE) |
1 |
|
|
3 |
272-4595
|
Round vent |
2 |
|
|
4 |
272-4123
|
Seal |
1 |
|
|
5 |
272-4596
|
A/C air filter |
1 |
|
|
6 |
272-4597
|
Knob M6 x 16 (OBSOLETE) |
2 |
|
|
7 |
272-4598
|
A/C filter cover (OBSOLETE) |
1 |
|
|
8 |
272-4599
|
A/C vent mounting panel (OBSOLETE) |
1 |
|
|
9 |
272-4600
|
A/C unit housing (OBSOLETE) |
1 |
|
|
10 |
272-4219
|
Hose clamp (OBSOLETE) |
6 |
|
|
11 |
272-4601
|
Heating tap |
1 |
|
|
13 |
272-4602
|
Rubber seal holder (OBSOLETE) |
1 |
|
|
14 |
272-4603
|
Nipple fitting (OBSOLETE) |
1 |
|
|
15 |
272-4604
|
Elbow fitting (OBSOLETE) |
1 |
|
|
16 |
272-4605
|
Hose (OBSOLETE) |
1 |
|
|
17 |
272-4610
|
Air conditioner core (OBSOLETE) |
1 |
|
|
18 |
272-4607
|
Fan mounting bracket (OBSOLETE) |
1 |
|
|
19 |
272-4608
|
12V electric fan (OBSOLETE) |
1 |
|
|
20 |
272-4611
|
A/C condenser (OBSOLETE) |
1 |
|
|
21 |
272-4612
|
12V electric fan |
1 |
|
|
22 |
272-4613
|
Condensor support bracket |
2 |
|
|
23 |
272-4614
|
A/C filter (OBSOLETE) |
1 |
|
|
24 |
272-4615
|
A/C filter support bracket (OBSOLETE) |
1 |
|
|
25 |
272-4616
|
2-level pressure switch (OBSOLETE) |
1 |
|
|
31 |
272-4617
|
Filter hose |
1 |
|
|
32 |
272-4618
|
Filter condensor hose |
1 |
|
|
33 |
272-4619
|
Compressor hose |
1 |
|
|
34 |
272-4620
|
Compressor evaporation hose |
1 |
|
|
37 |
272-4606
|
Resistor |
1 |
|
|
38 |
272-4621
|
A/C thermostat |
1 |
|
|
39 |
272-4622
|
A/C fan support |
1 |
|
|
41 |
272-4609
|
Rectangular vent (OBSOLETE) |
2 |
|
|
42 |
272-4623
|
Expansion valve kit (OBSOLETE) |
1 |
|
|
