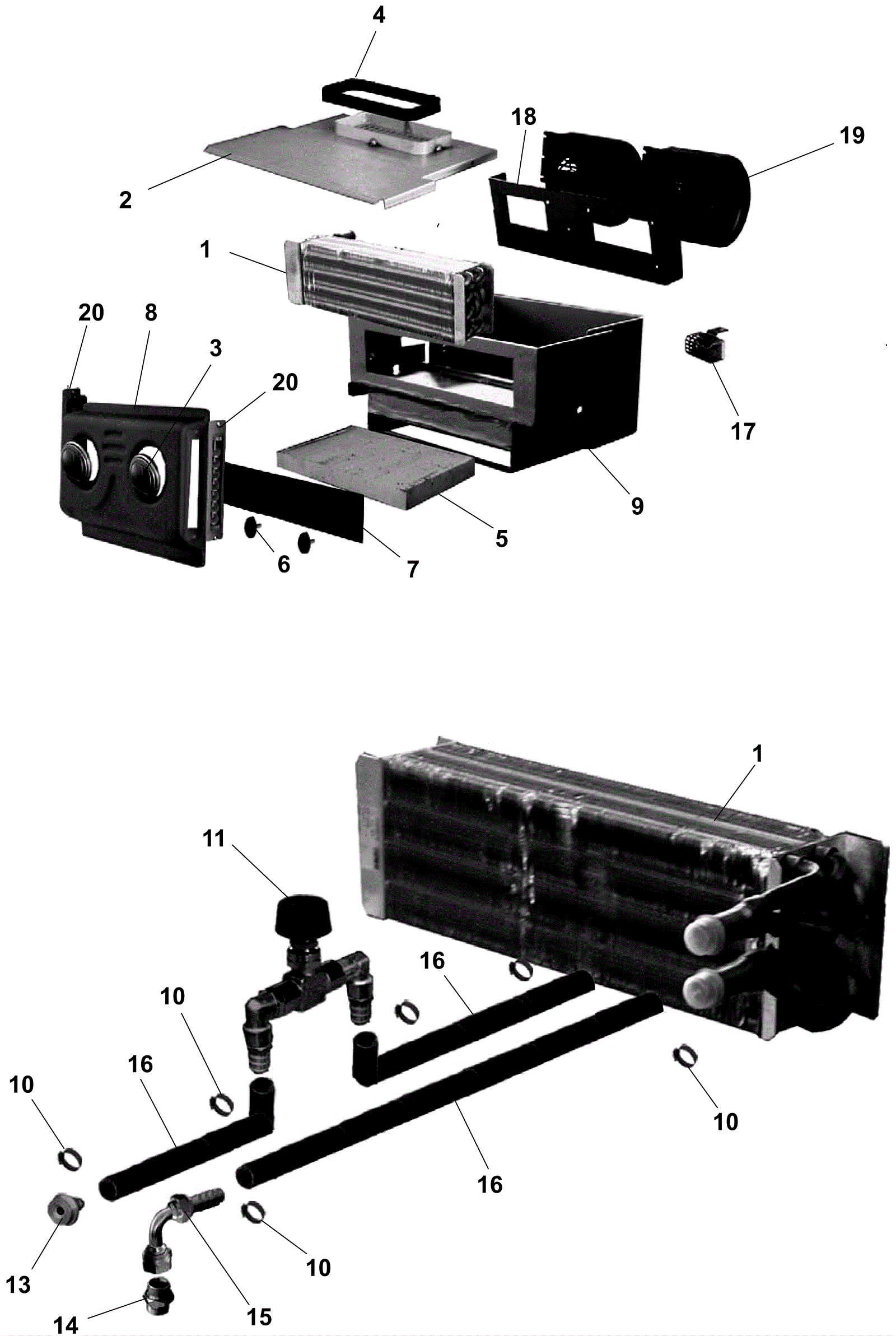

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
272-4593
|
Heater core (OBSOLETE) |
1 |
|
|
2 |
272-4594
|
A/C unit cover (OBSOLETE) |
1 |
|
|
3 |
272-4595
|
Round vent |
2 |
|
|
4 |
272-4123
|
Seal |
1 |
|
|
5 |
272-4596
|
A/C air filter |
1 |
|
|
6 |
272-4597
|
Knob M6 x 16 (OBSOLETE) |
2 |
|
|
7 |
272-4598
|
A/C filter cover (OBSOLETE) |
1 |
|
|
8 |
272-4599
|
A/C vent mounting panel (OBSOLETE) |
1 |
|
|
9 |
272-4600
|
A/C unit housing (OBSOLETE) |
1 |
|
|
10 |
272-4219
|
Hose clamp (OBSOLETE) |
6 |
|
|
11 |
272-4601
|
Heating tap |
1 |
|
|
13 |
272-4602
|
Rubber seal holder (OBSOLETE) |
1 |
|
|
14 |
272-4603
|
Nipple fitting (OBSOLETE) |
1 |
|
|
15 |
272-4604
|
Elbow fitting (OBSOLETE) |
1 |
|
|
16 |
272-4605
|
Hose (OBSOLETE) |
1 |
|
|
17 |
272-4606
|
Resistor |
1 |
|
|
18 |
272-4607
|
Fan mounting bracket (OBSOLETE) |
1 |
|
|
19 |
272-4608
|
12V electric fan (OBSOLETE) |
1 |
|
|
20 |
272-4609
|
Rectangular vent (OBSOLETE) |
2 |
|
|
