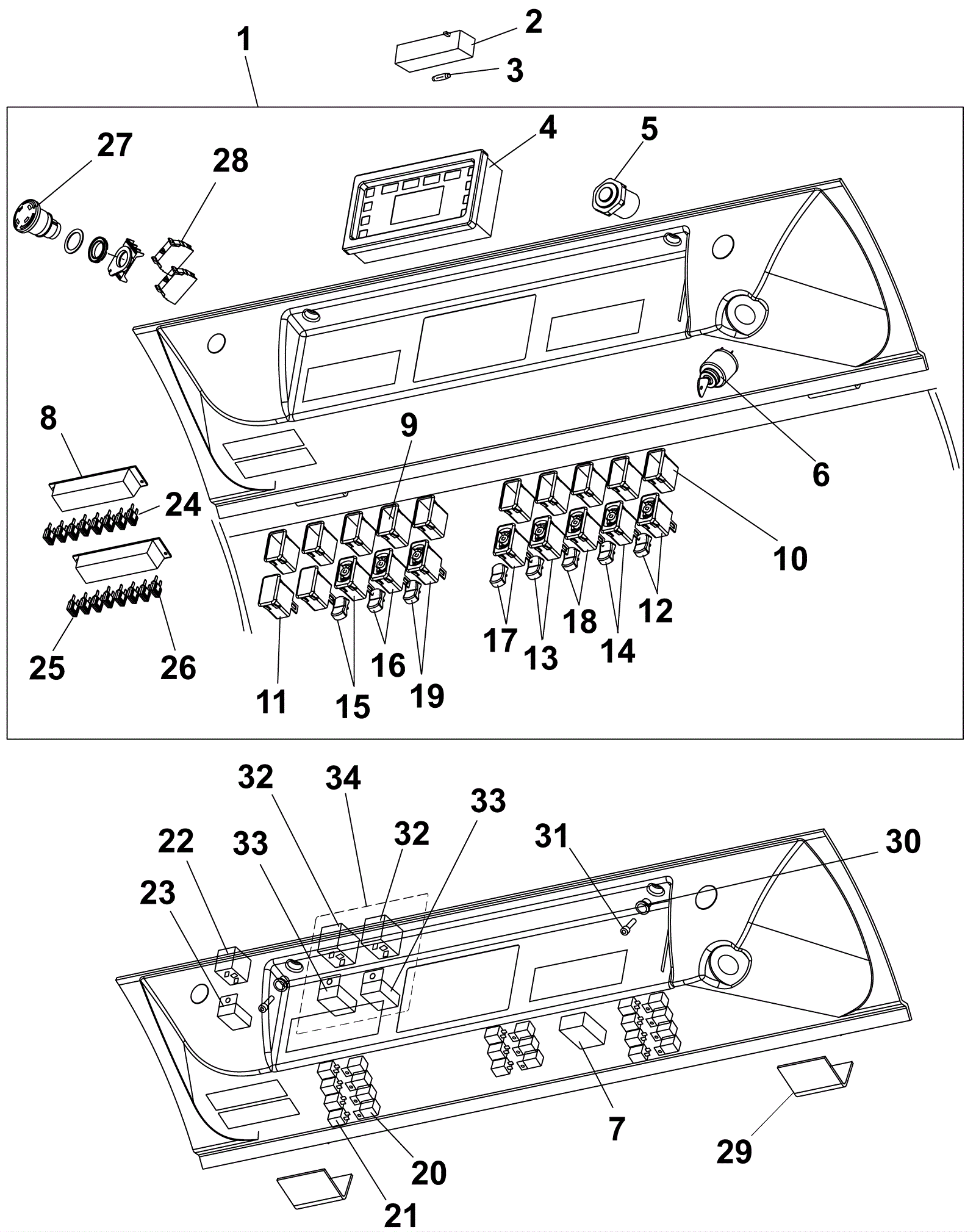

Control Panel Assembly

#PartDescription ReqNotesAvailability
1 272-4532 Complete dashboard kit (OBSOLETE) 1 (Includes items 4-6, 8-19 and 24-28)
2 272-4047 Roof lamp (OBSOLETE) 1
3 272-4046 12V bulb (OBSOLETE) 1
4 272-4533 Display 1
5 170-9221 Buzzer 1
6 272-4534 Key switch (OBSOLETE) 1
7 272-4535 Electronic box (OBSOLETE) 1
8 272-4536 8-way fuse holder (OBSOLETE) 2
9 272-4537 Center switch holder (OBSOLETE) 6
10 272-4538 End switch holder (OBSOLETE) 4
11 272-4539 Plug (OBSOLETE) 2
12 272-4540 Open door switch kit (OBSOLETE) 1
13 272-4541 Water pump switch kit 1
14 272-4542 Air conditioning switch kit (OBSOLETE) 1
15 272-4543 Emergency lights switch kit (OBSOLETE) 1
16 272-4544 Working lights switch kit (OBSOLETE) 1
17 272-4545 Windshield wiper switch kit (OBSOLETE) 1
18 272-4546 Fan switch kit 1
20 272-4548 Relay holder (OBSOLETE) 11
21 272-4549 12V relay 11
22 272-4550 12V relay 1
23 272-4551 Relay holder (OBSOLETE) 1
24 272-8363 10amp fuse 5
25 272-4552 15amp fuse (OBSOLETE) 8
26 272-4553 20amp fuse (OBSOLETE) 3
27 272-8340 Emergency switch 1
28 272-8341 Contact 2
29 272-4554 Brass hinge (OBSOLETE) 2
30 272-4555 Dashboard bushing (OBSOLETE) 2
31 272-4556 Screw M6-1 x 35mm socket head 2
32 272-4557 12V relay 2 (After SN 101303137)
33 272-4559 Relay (OBSOLETE) 2 (After SN 101303137)
34 272-4558 Relay kit (OBSOLETE) 1 (install on machine before SN 101303137)
