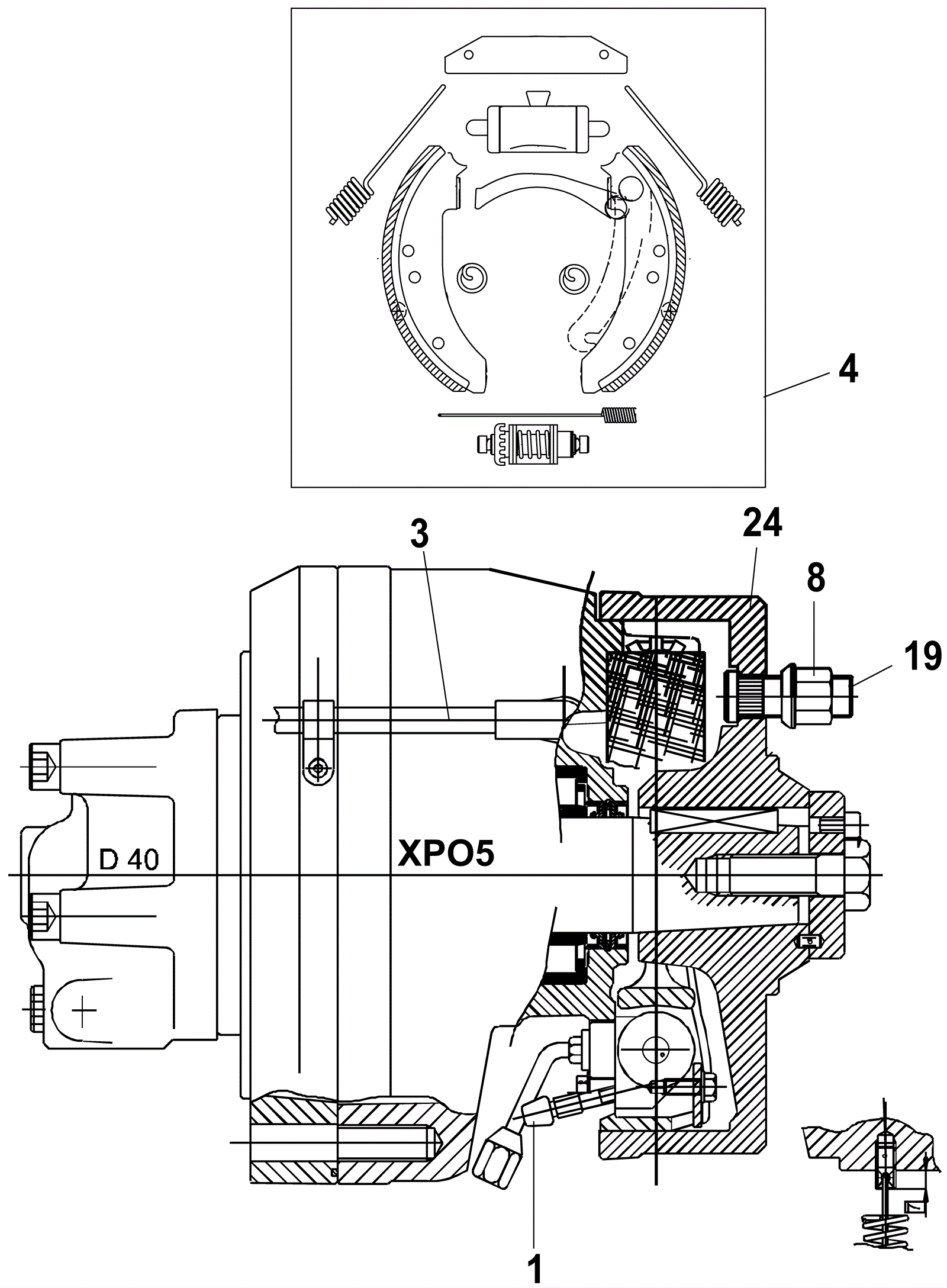

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
272-4525
|
Brake bleed valve (OBSOLETE) |
2 |
|
|
3a |
472-8422
|
BLADE KIT-CYL PU |
1 |
|
|
3b |
272-4528
|
Left brake cable |
1 |
|
|
4a |
272-4527
|
Left brake kit (OBSOLETE) |
1 |
|
|
4b |
272-4530
|
Right brake kit (OBSOLETE) |
1 |
|
|
8 |
272-4173
|
Lug nut (OBSOLETE) |
10 |
|
|
19 |
272-4529
|
Hardware brake (OBSOLETE) |
10 |
|
|
24 |
272-4531
|
Wheel hub (OBSOLETE) |
2 |
|
|
