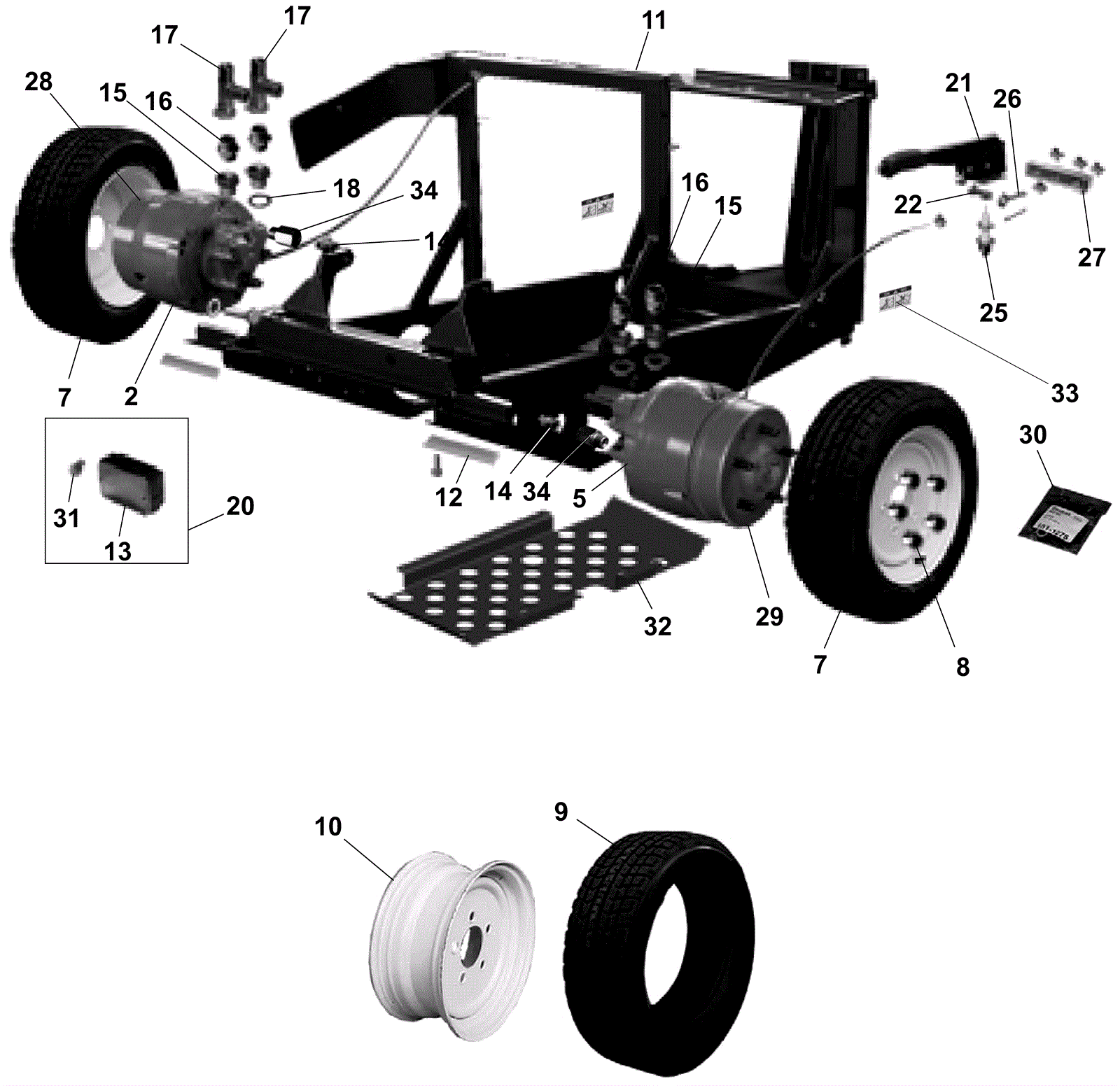

| # | Part | Description |
Req | Notes | Availability |
|---|
2a |
272-4033
|
Right side motor wheel (OBSOLETE) |
1 |
|
|
2b |
272-4034
|
Motor wheel kit (OBSOLETE) |
1 |
(before placing an order, verify model on motor wheel) |
|
5a |
272-4037
|
Left side motor wheel (OBSOLETE) |
1 |
|
|
5b |
272-4034
|
Motor wheel kit (OBSOLETE) |
1 |
(before placing an order, verify model on motor wheel) |
|
7 |
272-4184
|
Wheel kit |
2 |
|
|
8 |
272-4173
|
Lug nut (OBSOLETE) |
10 |
|
|
9 |
272-4158
|
Tire kit |
2 |
|
|
10 |
272-4160
|
Rim |
2 |
|
|
11 |
272-4029
|
Chassis (OBSOLETE) |
1 |
|
|
12 |
272-4347
|
Bumper strip (OBSOLETE) |
2 |
|
|
13 |
272-4508
|
Headlight |
1 |
|
|
14 |
272-4292
|
1/4 inch pipe fitting |
2 |
|
|
15 |
272-4509
|
Bolt stud 1 3/4 inch (OBSOLETE) |
4 |
|
|
16 |
272-4510
|
Nipple (OBSOLETE) |
4 |
|
|
17 |
272-4511
|
Tee fitting (OBSOLETE) |
2 |
|
|
18 |
272-4512
|
Sealing washer |
4 |
|
|
20 |
272-4513
|
Working light kit (OBSOLETE) |
1 |
(optional) (Includes items 13 and 31) |
|
21 |
272-4514
|
Handbrake lever |
1 |
|
|
22 |
272-4515
|
Handbrake pin |
1 |
|
|
25 |
272-4516
|
Handbrake switch |
1 |
|
|
26 |
272-4517
|
Eye bolt |
1 |
|
|
27 |
272-4518
|
Cable brake plate |
1 |
|
|
28 |
272-4519
|
Right brake assembly (OBSOLETE) |
1 |
|
|
29 |
272-4520
|
Left brake assembly (OBSOLETE) |
1 |
|
|
30 |
272-4521
|
Gasket kit (OBSOLETE) |
1 |
|
|
31 |
272-4522
|
12V lamp (OBSOLETE) |
1 |
|
|
32 |
272-4523
|
Engine protection (OBSOLETE) |
1 |
|
|
33 |
272-4198
|
Decal kit (OBSOLETE) |
1 |
|
|
34 |
272-4524
|
Stud bolt 1/4 inch (OBSOLETE) |
2 |
|
|
