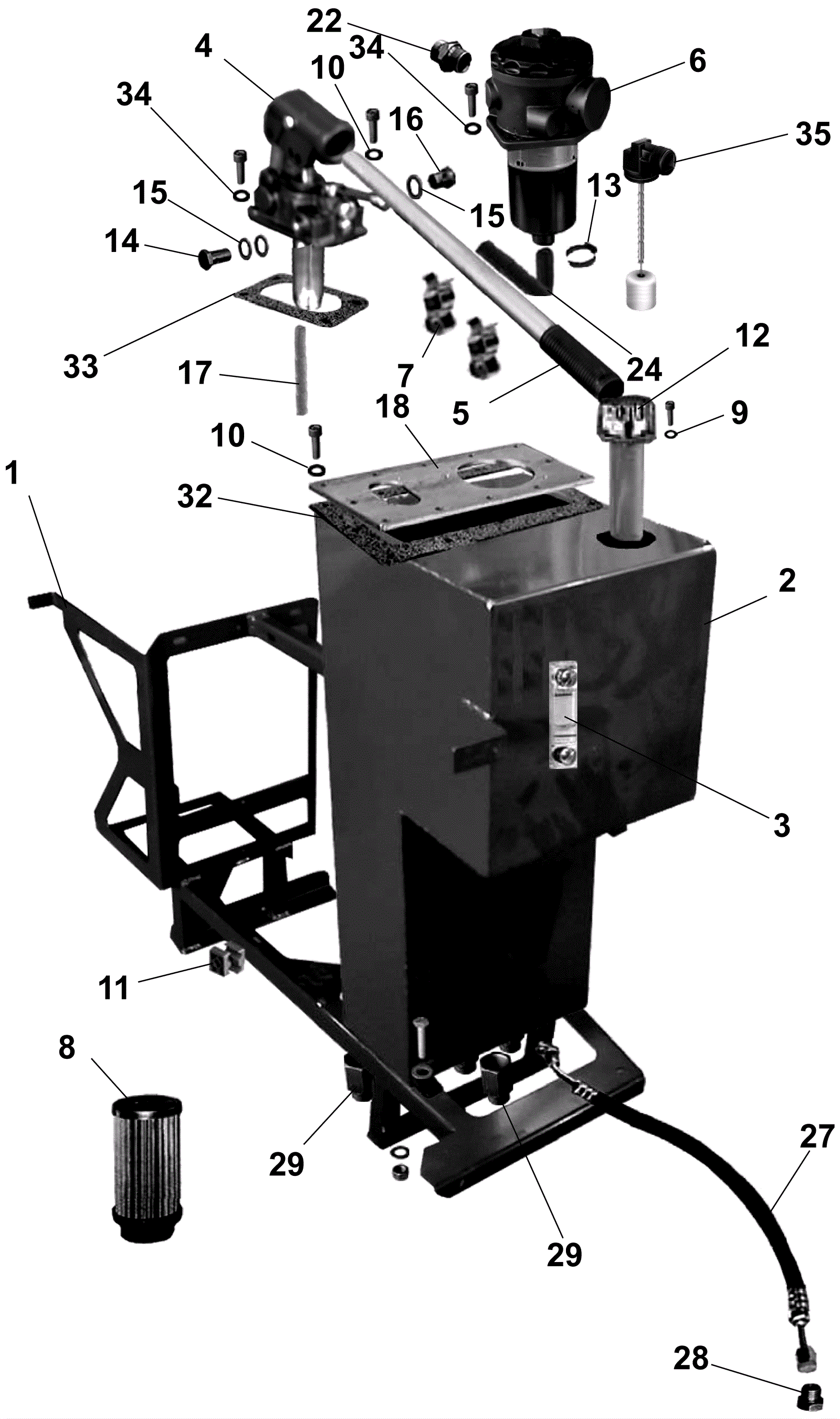

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
272-4451
|
Oil reservoir support (OBSOLETE) |
1 |
|
|
2 |
272-4406
|
Oil tank (OBSOLETE) |
1 |
|
|
3 |
272-4452
|
Oil level |
1 |
|
|
4a |
272-4453
|
Hand pump kit (OBSOLETE) |
1 |
(before SN 111200068) |
|
4b |
272-4454
|
Hand pump kit (OBSOLETE) |
1 |
(after SN 111200067) |
|
5a |
272-4455
|
Pump lever |
1 |
(before SN 111200068) |
|
5b |
272-4455
|
Pump lever |
1 |
(after SN 111200067) |
|
6 |
272-4367
|
Filter assembly |
1 |
|
|
7 |
272-4241
|
Spring rod holder (OBSOLETE) |
2 |
|
|
8 |
272-4370
|
Hydraulic oil filter |
3 |
|
|
9 |
272-4456
|
Washer (OBSOLETE) |
6 |
|
|
10 |
272-4457
|
Washer (OBSOLETE) |
12 |
|
|
11 |
272-4458
|
Double hose clamp (OBSOLETE) |
1 |
|
|
12 |
272-4411
|
Filling plug |
1 |
|
|
13 |
272-4459
|
Clamp |
1 |
|
|
14 |
272-4237
|
1/4 inch fitting |
1 |
|
|
15 |
272-7335
|
Sealing washer |
3 |
|
|
16 |
272-4460
|
1/4 inch plug fitting (OBSOLETE) |
1 |
|
|
17 |
272-4461
|
Hose (OBSOLETE) |
1 |
|
|
18 |
272-4462
|
Cover (OBSOLETE) |
1 |
|
|
22 |
272-4463
|
Nipple |
2 |
|
|
24 |
272-4464
|
Pipe (OBSOLETE) |
1 |
|
|
27 |
272-4405
|
Hydraulic hose |
1 |
|
|
28 |
272-4465
|
Plug (OBSOLETE) |
1 |
|
|
29 |
272-4466
|
Stud bolt (OBSOLETE) |
4 |
|
|
32 |
272-4467
|
Cover gasket (OBSOLETE) |
1 |
|
|
33 |
272-4468
|
Pump gasket (OBSOLETE) |
1 |
|
|
34 |
272-4469
|
Washer (OBSOLETE) |
5 |
|
|
35 |
272-4470
|
Level sensor (OBSOLETE) |
1 |
|
|
