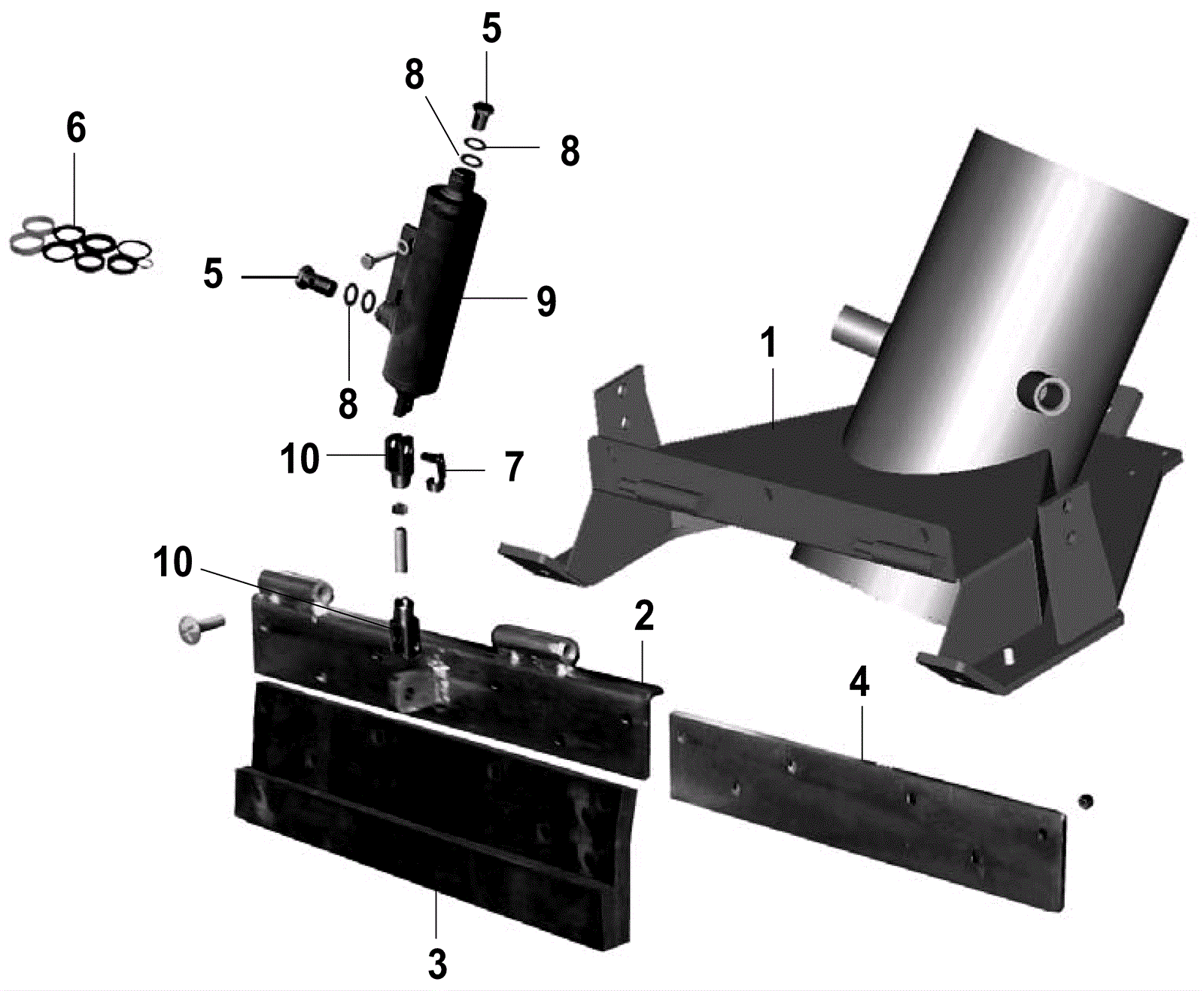

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
272-4036
|
Suction head |
1 |
|
|
2 |
272-4360
|
Flap mounting bracket |
1 |
|
|
3 |
272-4361
|
Suction head flap (OBSOLETE) |
1 |
|
|
4 |
272-4362
|
Suction flap strap (OBSOLETE) |
1 |
|
|
5 |
272-4237
|
1/4 inch fitting |
2 |
|
|
6 |
272-4363
|
Gasket kit |
1 |
|
|
7 |
472-1328
|
SPRING PIN M8X16 GALV 5 PCS SE |
2 |
|
|
8 |
272-7335
|
Sealing washer |
4 |
|
|
9 |
272-4365
|
Hydraulic cylinder |
1 |
|
|
10 |
472-1327
|
CLEVIS M8X16 GALV. DIN71752 5 |
2 |
|
|
